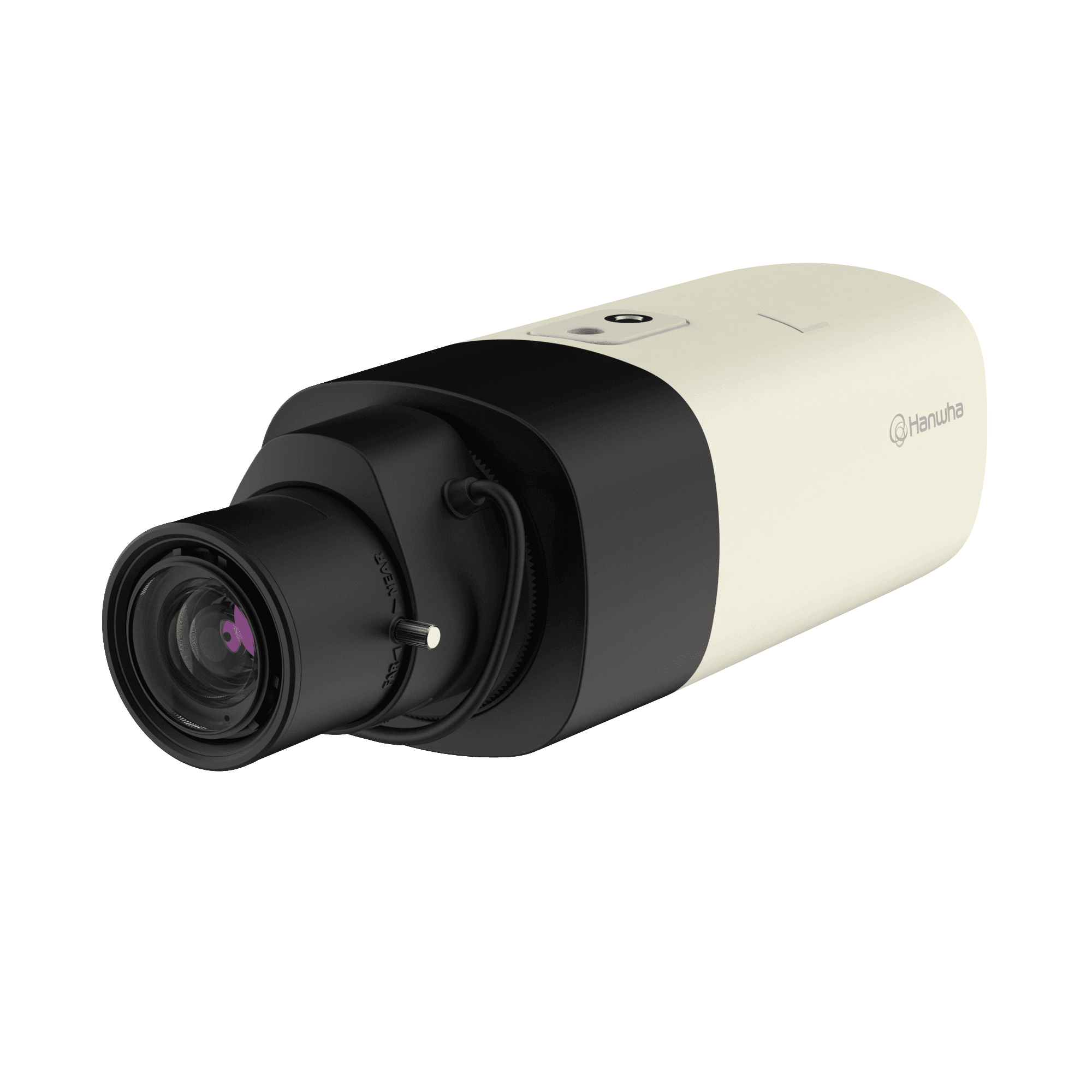

QNB-6002
2MP Box CameraKey Features
• 0.01Lux@F1.2 (Color)
• Max. 30fps@2MP (H.265/H.264)
• Day & Night (ICR), WDR(120dB)
• Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Tampering
• SD 1slot (128GB)
• H.265, H.264, MJPEG codec, WiseStream II
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_QNB-6002,QNB-8002_240603_DE.pdf | 2026-06-18 | |
| Manuals | Manuals_QNB-6002,QNB-8002_240603_EN.pdf | 2026-06-18 | |
| Manuals | Manuals_QNB-6002,QNB-8002_240603_ES.pdf | 2026-06-18 | |
| Manuals | Manuals_QNB-6002,QNB-8002_240603_FR.pdf | 2026-06-18 | |
| Manuals | Manuals_QNB-6002,QNB-8002_240603_IT.pdf | 2026-06-18 | |
| Manuals | Manuals_QNB-6002,QNB-8002_240603_PL.pdf | 2026-06-18 | |
| Manuals | Manuals_QNB-6002,QNB-8002_240603_PT.pdf | 2026-06-18 | |
| Manuals | Manuals_QNB-6002,QNB-8002_240603_TR.pdf | 2026-06-18 | |
| Manuals | Manuals_QNB-6002,QNB-8002_240603_ZH.pdf | 2026-06-18 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_QNB-6002QNB-8002_191227.dxf | 2026-06-18 | |
| CAD | CAD_QNB-6002QNB-8002_191227.pdf | 2026-06-18 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_QNB-6002_200129_EN_UL.pdf | 2026-06-18 | |
| Certification | Certification_QNB-6002_230224_EN_DoC_CE.pdf | 2026-06-18 | |
| Certification | Certification_QNB-6002_230224_EN_DoC_UKCA.pdf | 2026-06-18 | |
| Certification | Certification_QNB-6002_230224_EN_EMC_CE.pdf | 2026-06-18 | |
| Certification | Certification_QNB-6002_230224_EN_RCM.pdf | 2026-06-18 | |
| Certification | Certification_QNB-6002_230224_EN_VCCI.pdf | 2026-06-18 | |
| Certification | Certification_QNB-6002_230315_KO_KC(Safety).pdf | 2026-06-18 | |
| Certification | Certification_QNB-6002_230315_KO_Report_KC(EMC).pdf | 2026-06-18 | |
| Certification | Certification_QNB-6002_230315_KO_Report_KC(TEL).pdf | 2026-06-18 | |
| Certification | Certification_QNB-6002_230317_KO_Report_KC(Safety).pdf | 2026-06-18 | |
| Certification | Certification_QNB-6002_230321_KO_KC(EMC).pdf | 2026-06-18 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | QNB-6002_1.41.00_20200103_R40.img | 2026-06-25 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_QNB-6002_200831_EN.docx | 2026-06-18 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_QNB-6002_20260604_EN_163007.pdf | 2026-06-18 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_QNB-6002QNB-8002_240603_CS.pdf | 2026-06-18 | |
| Quick Guide | Quick-Guide_QNB-6002QNB-8002_240603_DE.pdf | 2026-06-18 | |
| Quick Guide | Quick-Guide_QNB-6002QNB-8002_240603_EN.pdf | 2026-06-18 | |
| Quick Guide | Quick-Guide_QNB-6002QNB-8002_240603_ES.pdf | 2026-06-18 | |
| Quick Guide | Quick-Guide_QNB-6002QNB-8002_240603_FR.pdf | 2026-06-18 | |
| Quick Guide | Quick-Guide_QNB-6002QNB-8002_240603_IT.pdf | 2026-06-18 | |
| Quick Guide | Quick-Guide_QNB-6002QNB-8002_240603_NL.pdf | 2026-06-18 | |
| Quick Guide | Quick-Guide_QNB-6002QNB-8002_240603_PL.pdf | 2026-06-18 | |
| Quick Guide | Quick-Guide_QNB-6002QNB-8002_240603_PT.pdf | 2026-06-18 | |
| Quick Guide | Quick-Guide_QNB-6002QNB-8002_240603_TR.pdf | 2026-06-18 | |
| Quick Guide | Quick-Guide_QNB-6002QNB-8002_240603_ZH.pdf | 2026-06-18 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_QNB-6002QNB-8002_200214_EN.pdf | 2026-06-18 | |
| Online Help | Online-Help_QNB-6002QNB-8002_200214_ES.pdf | 2026-06-18 | |
| Online Help | Online-Help_QNB-6002QNB-8002_200214_FR.pdf | 2026-06-18 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 15fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.01 |
| BW(1/30sec, 30IRE) | 0.001 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Focus Control | Manual | |
| Lens Type | DC auto iris, Manual | |
| Mount Type | C mount, CS mount | |
| Optional Lens | SLA-M2890DN |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNR | |
| Motion Detection | Quantity | 4ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 1/5~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps | |
| Smart Codec | WiseStreamⅡ | |
| Bitrate Control | None, H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 128GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -30°C~+60°C(-22°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max 6.4W, Typical 4.6W |
| 12VDC | Max 5.8W, Typical 4.1W |
Mechanical
| Color | Ivory, Black | |
| Material | Plastic | |
| Product Dimensions | 73.8(W)x66.6(H)X136.2(D)mm(2.9x2.6x5.4") | |
| Product Weight | 320g(0.71lb) |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 15fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.01 |
| BW(1/30sec, 30IRE) | 0.001 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Focus Control | Manual | |
| Lens Type | DC auto iris, Manual | |
| Mount Type | C mount, CS mount | |
| Optional Lens | SLA-M2890DN |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNR | |
| Motion Detection | Quantity | 4ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 1/5~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps | |
| Smart Codec | WiseStreamⅡ | |
| Bitrate Control | None, H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) |
General
| Memory | RAM | 1GB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 128GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -30°C~+60°C(-22°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max 6.4W, Typical 4.6W |
| 12VDC | Max 5.8W, Typical 4.1W |
Mechanical
| Color | Ivory, Black | |
| Material | Plastic | |
| Product Dimensions | 73.8(W)x66.6(H)X136.2(D)mm(2.9x2.6x5.4") | |
| Product Weight | 320g(0.71lb) |
Accessories
SHB-4200H
SHB-4200
SHB-4301HP
Discontinued
STB-4150V
Discontinued
SHB-4300H1
