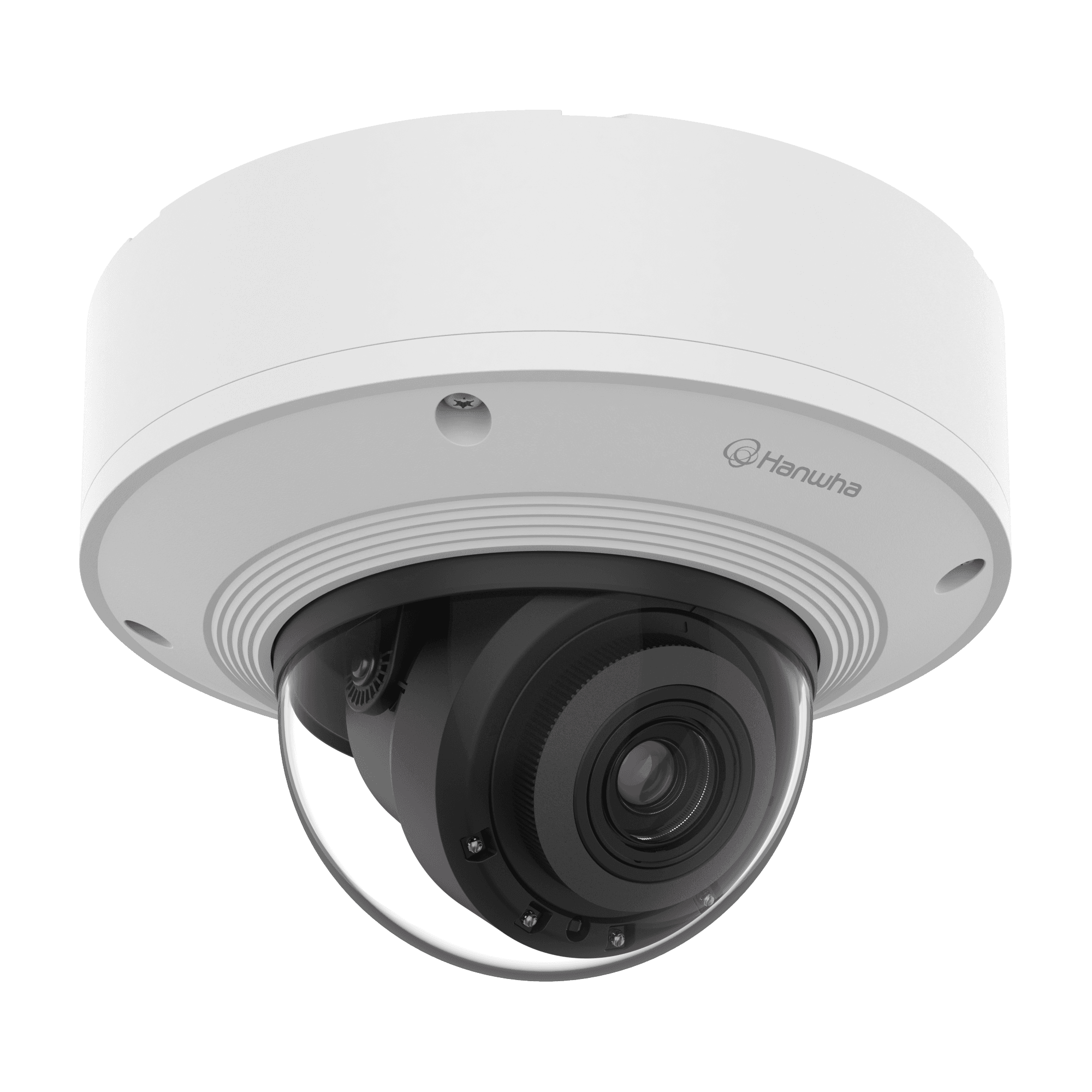

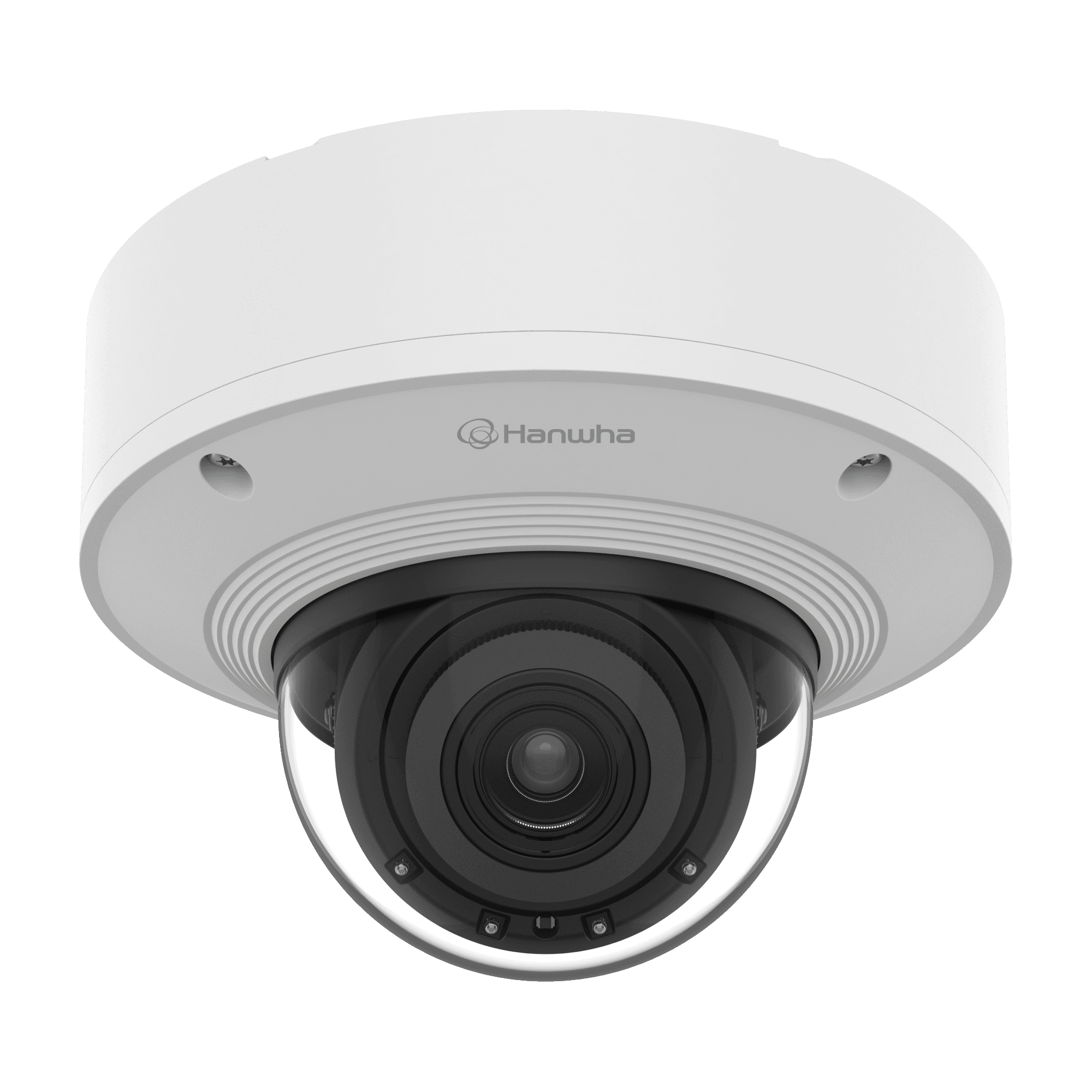

PNV-A9081R
4K AI IR Vandal Dome CameraKey Features
• Maximum 4K resolution
• 0.05Lux@F1.6 (Color), 0Lux (B/W, IR LED on)
• Day & Night(ICR), WDR(120dB),WiseNRⅡ (Using AI engine), Prefer Shutter
• H.265, H.264, MJPEG codec, WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
• Video Analytics based on AI
- Object detection and classification(Person, Face, Vehicle, License Plate)
- Face mask detection, Social distancing detection
- Attribute, BestShot
• Modular structure for easy installation
• Requires camera firmware v1.41.03 or later to use Face Mask Detection
• System requirements
- SSM v2.10.8 or later, Genetec plugin v1.0 or later, Milestone plugin v1.0.2 or later, NVR model (XRN-6410DB4/B4, XRN-3210B4)
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_PNV-A9081R,PND-A9081RV,PND-A9081RF,PNO-A9081R,PNB-A9001_240524_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_PNV-A9081R,PND-A9081RV,PND-A9081RF,PNO-A9081R,PNB-A9001_240524_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_PNV-A9081R,PND-A9081RV,PND-A9081RF,PNO-A9081R,PNB-A9001_240524_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_PNV-A9081R,PND-A9081RV,PND-A9081RF,PNO-A9081R,PNB-A9001_240524_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_PNV-A9081R,PND-A9081RV,PND-A9081RF,PNO-A9081R,PNB-A9001_240524_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_PNV-A9081R,PND-A9081RV,PND-A9081RF,PNO-A9081R,PNB-A9001_240524_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_PNV-A9081R,PND-A9081RV,PND-A9081RF,PNO-A9081R,PNB-A9001_240524_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_PNV-A9081R,PND-A9081RV,PND-A9081RF,PNO-A9081R,PNB-A9001_240524_TR.pdf | 2026-08-06 |
Catalogues
| Category | File Name | Last Update | |
|---|---|---|---|
| Catalogues | Brochures_COVID-19_210330_EN.pdf | 2026-08-06 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_WiseDetector_230224_EN.pdf | 2026-08-06 | |
| Brochures | Brochures_PNO-A9081RPNV-A9081RPND-A9081RVPND-A9081RFPNB-A9001_240619_EN.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_PNV-A6081RPNV-A9081RPNV-A9081RLP_211105_Common.dxf | 2026-08-06 | |
| CAD | CAD_PNV-A6081RPNV-A9081RPNV-A9081RLP_211105_Common.pdf | 2026-08-06 |
Certification
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_P_AI_2_11_05_20251105_hva_prod.zip | 2026-08-06 | |
| Firmware | GenetecSecurityCenterSaaS_v_P_AI_25_10_27_20251027.zip | 2026-08-06 | |
| Firmware | PNO-A9081R_2.22.00_20250219_R71.zip | 2026-08-06 | |
| Firmware | PNO-A9081R_2.23.06_20251119_R223.zip | 2026-08-06 | |
| Firmware | WiseAI_v_PAI_1_02_08_20251031.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_PNV-A9081R_240604_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_PNV-A9081R_20260806_EN_131034.pdf | 2026-08-06 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_PNV-A9081R_200529_Common_inch.rfa | 2026-08-06 | |
| BIM&Revit | BIM&Revit_PNV-A9081R_200529_Common_mm.rfa | 2026-08-06 |
Quick Guide
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_PNB-A9001PND-A9081RVPND-A9081RFPNV-A9081RPNO-A9081R_20240514_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_PNB-A9001PND-A9081RVPND-A9081RFPNV-A9081RPNO-A9081R_20240514_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_PNB-A9001PND-A9081RVPND-A9081RFPNV-A9081RPNO-A9081R_20240514_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_PNB-A9001%2CPNO-A9081R%2CPND-A9081RF%2CPND-A9081RV%2CPNV-A9081R_260205_EN.txt | 2026-08-06 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_PNB-A9001%2CPNO-A9081R%2CPND-A9081RF%2CPND-A9081RV%2CPNV-A9081R_260205_EN_cyclonedx.json | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/1.8" |
| Type | CMOS | |
| Resolution | 3840x2160, 3072x1728, 2688x1520, 2592x1944, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.05 |
| BW(1/30sec, 30IRE) | 0.005 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 4.5~10 | |
| Zoom Ratio | Optical | 2.2x |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Tele | 2.65 | |
| Angular Field of View | Horizontal | 101.4°~45.5° |
| Vertical | 53.6°~25.5° | |
| Diagonal | 120.7°~52.3° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus | |
| Lens Type | P iris(IR corrected) |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0˚~360˚ |
| Tilt | -45˚~85˚ | |
| Rotate | 0˚~355˚ |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Color / Option | Gray, Black, White | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 1/5~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Others | 12VDC output | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | WiseIR 30m(98.42ft) |
| IR Wavelength | 850nm |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | Upper/Lower clothes color, Gender, Bag |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Face | Age, Gender, Face mask, Glasses | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip & fall detection |
| Normal | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear), WiseDetector for adding custom objects | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 6 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure) | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) | |
| Security Certificate | IACS Component Security Requirements Certification (IEC 62443-4-2) |
General
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) |
Environmental & Electrical
| Operating Condition | Temperature | -50°C~+55°C(-58°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Others | Start up should be done at above -30°C | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE | Max 20.00W, typical 17.00W |
| 12VDC | Max 18.70W, typical 15.00W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | Ø180x125mm(7.09x4.92") | |
| Product Weight | 1,900g(4.19lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 62.2m(204.04ft) |
| Tele | 185.4m(608.31ft) | |
| Observe (63PPM/ 19PPF) | Wide | 24.9m(81.62ft) |
| Tele | 74.2m(243.32ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 12.4m(40.81ft) |
| Tele | 37.1m(121.66ft) | |
| Identify (250PPM/ 76PPF) | Wide | 6.2m(20.40ft) |
| Tele | 18.5m(60.83ft) |
