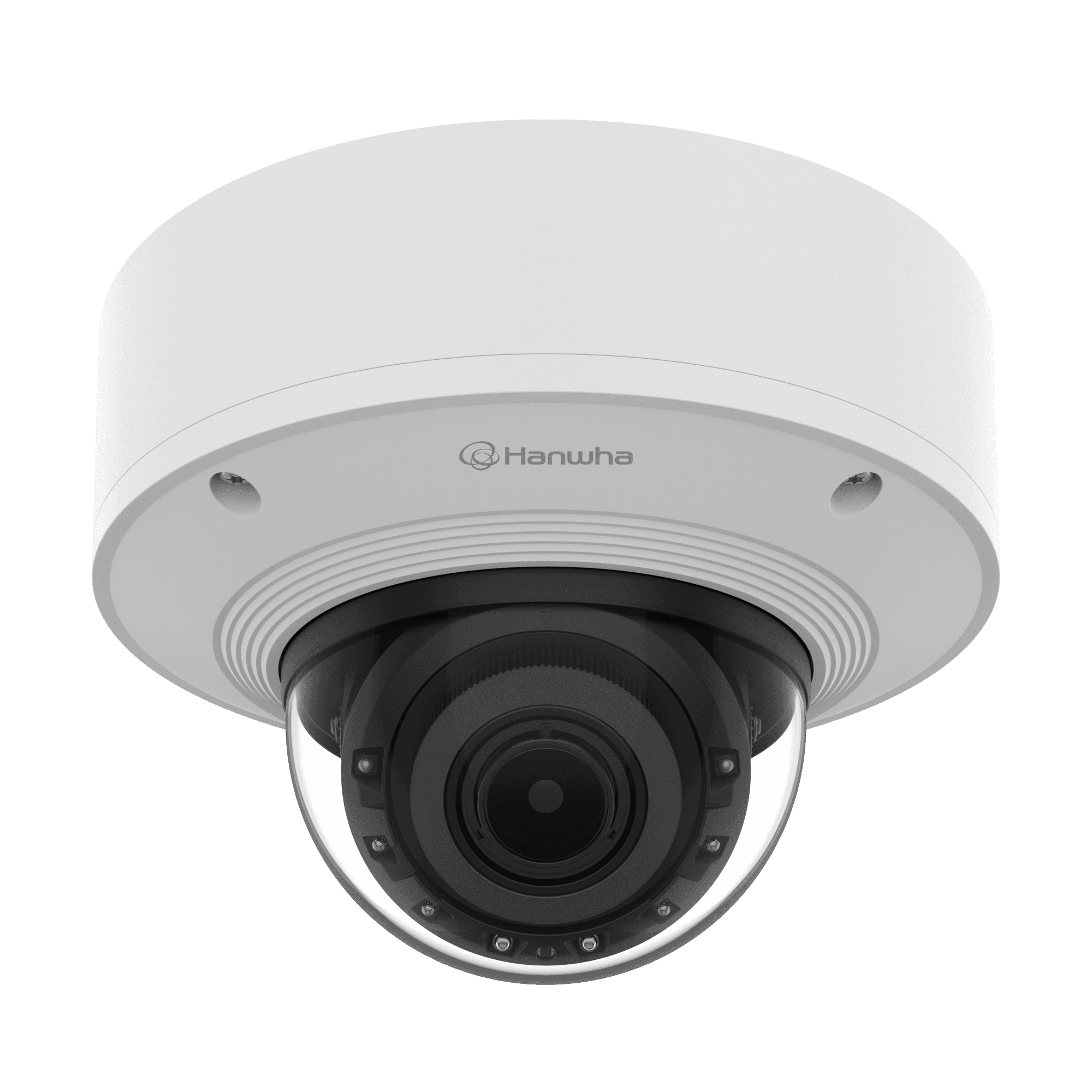

PNV-A6081R-E1T
2MP Camera with built-in 1TB Rugged SSDKey Features
• Maximum 2MP resolution, Up to 120fps
• Color: 0.007Lux (F1.3, 1/30sec, 30IRE), BW: 0.0007Lux (F1.3, 1/30sec, 30IRE)
• H.265, H.264, MJPEG, WisestreamⅢ
• SSD 1TB included
• TPM with FIPS 140-2 level2, Secure boot, Verify firmware forgery
• Video Analytics based on AI
• Object detection and classification (Person, Face, Vehicle, License plate)
• Support Attributes, BestShot
• IP66, IP67, IP6K9K, IK10, NEMA4X
• Connect and record up to 5 additional cameras
• Pre-licensed with 1x Wave channel, purchase additional licenses to suit number of connected cameras
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_PNV-A6081R-E1T,PNV-A6081R-E2T_240710_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_PNV-A6081R-E1T,PNV-A6081R-E2T_240710_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_PNV-A6081R-E1T,PNV-A6081R-E2T_240710_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_PNV-A6081R-E1T,PNV-A6081R-E2T_240710_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_PNV-A6081R-E1T,PNV-A6081R-E2T_240710_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_PNV-A6081R-E1T,PNV-A6081R-E2T_240710_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_PNV-A6081R-E1T,PNV-A6081R-E2T_240710_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_PNV-A6081R-E1T,PNV-A6081R-E2T_240710_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_PNV-A6081R-E1T,PNV-A6081R-E2T_240710_ZH.pdf | 2026-08-06 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_SolidEDGE_230418_EN-1.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_PNV-A6081R-E1T_221227_Common.dxf | 2026-08-06 | |
| CAD | CAD_PNV-A6081R-E_221227_Common.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_PNV-A6081R-E1T_230112_EN_IK10.pdf | 2026-08-06 | |
| Certification | Certification_PNV-A6081R-E1T_230112_EN_NEMA4X.pdf | 2026-08-06 | |
| Certification | Certification_PNV-A6081R-E1T_230125_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_PNV-A6081R-E1T_230125_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_PNV-A6081R-E1T_230125_EN_EMC_CE(+UKCA).pdf | 2026-08-06 | |
| Certification | Certification_PNV-A6081R-E1T_230125_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_PNV-A6081R-E1T_230125_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_PNV-A6081R-E1T_230127_EN_IP66.pdf | 2026-08-06 | |
| Certification | Certification_PNV-A6081R-E1T_230127_EN_IP67.pdf | 2026-08-06 | |
| Certification | Certification_PNV-A6081R-E1T_230302_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_PNV-A6081R-E1T_230125_EN_FCC-IC.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | PNV-A6081R-E_2.24.00_20260204_R18.zip | 2026-08-06 | |
| Firmware | WiseAI_v_PAI_1_02_06_20250121.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_PNV-A6081R-E1T_230616_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_PNV-A6081R-E1T_20260806_EN_130814.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_PNV-A6081R-E1TPNV-A6081R-E2T_240710_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNV-A6081R-E1TPNV-A6081R-E2T_240710_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNV-A6081R-E1TPNV-A6081R-E2T_240710_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNV-A6081R-E1TPNV-A6081R-E2T_240710_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNV-A6081R-E1TPNV-A6081R-E2T_240710_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNV-A6081R-E1TPNV-A6081R-E2T_240710_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNV-A6081R-E1TPNV-A6081R-E2T_240710_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNV-A6081R-E1TPNV-A6081R-E2T_240710_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNV-A6081R-E1TPNV-A6081R-E2T_240710_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNV-A6081R-E1TPNV-A6081R-E2T_240710_TR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNV-A6081R-E1TPNV-A6081R-E2T_240710_ZH.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_PNV-A6081R-E1TPNV-A6081R-E2T_20230201_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_PNV-A6081R-E1TPNV-A6081R-E2T_20230201_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_PNV-A6081R-E1TPNV-A6081R-E2T_20230201_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_PNV-A6081R-E1TPNV-A6081R-E2T_230131_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | |
| Max. Framerate | H.265/H.264 | 120fps/100fps(60Hz/50Hz) |
| MJPEG | 15fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.007 |
| BW(1/30sec, 30IRE) | 0.0007 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Focal Length (mm) | 4.38~9.33 | |
| Zoom Ratio | Optical | 2.13x |
| Max Aperture Ratio (F number) | Wide | 1.3 |
| Tele | 2.15 | |
| Angular Field of View | Horizontal | 104°~44° |
| Vertical | 55°~24° | |
| Diagonal | 124°~51° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus | |
| Lens Type | P iris(IR corrected) |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~85° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Color / Option | Gray, Black, White | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 1/5~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 40m(131.23ft) |
| IR Wavelength | 850nm |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | Upper/Lower clothes color, Gender, Bag |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Face | Age, Gender, Face mask, Glasses | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection |
| Normal | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, T, M |
| Others | SUNAPI(HTTP API) | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | TPM(Trusted platform module), SDcard partition encrypt(AES-256) | |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 |
General
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | SSD | 1TB included(WAVE pre-installed), Possible to register up to 6 camera(Host+5 camera) |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Others | Start up should be done at above -20°C, Humidity control with AIR vent | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE | Max. 19.2W, typical 14.4W |
| 12VDC | Max. 17.5W, typical 12.7W | |
| Power Redundance Failover | Support |
Mechanical
| Color | White | |
| Material | Aluminum, Hard-coated dome | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø180x130mm(7.09x5.12") | |
| Product Weight | 1,900g(4.19lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, ISO 20653 IP6K9K, IEC 62262 IK10, NEMA 250 type 4X |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 30.0m(98.43ft) |
| Tele | 95.0m(311.82ft) | |
| Observe (63PPM/ 19PPF) | Wide | 12.0m(39.37ft) |
| Tele | 38.0m(124.73ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 6.0m(19.69ft) |
| Tele | 19.0m(62.36ft) | |
| Identify (250PPM/ 76PPF) | Wide | 3.0m(9.84ft) |
| Tele | 9.5m(31.18ft) |
