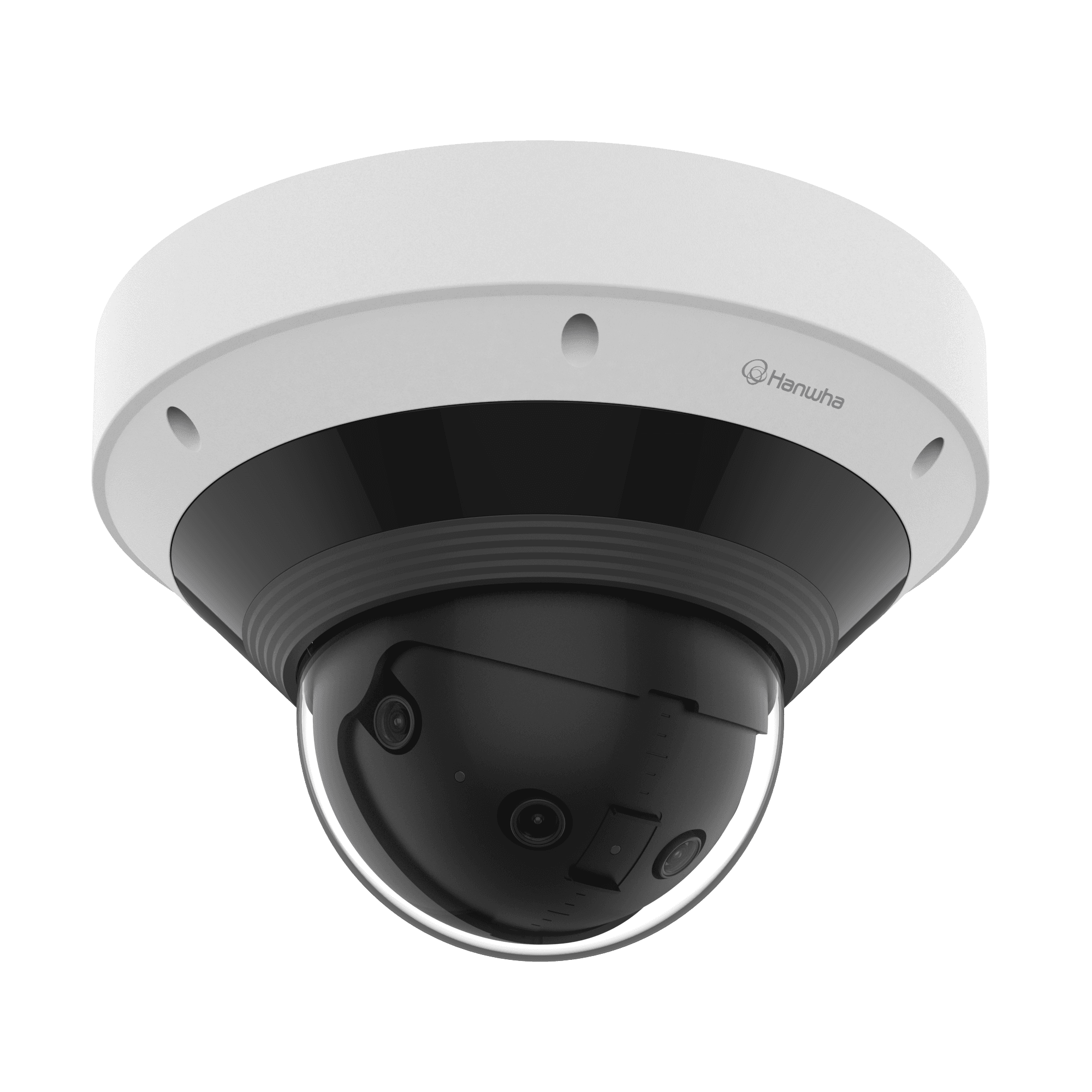

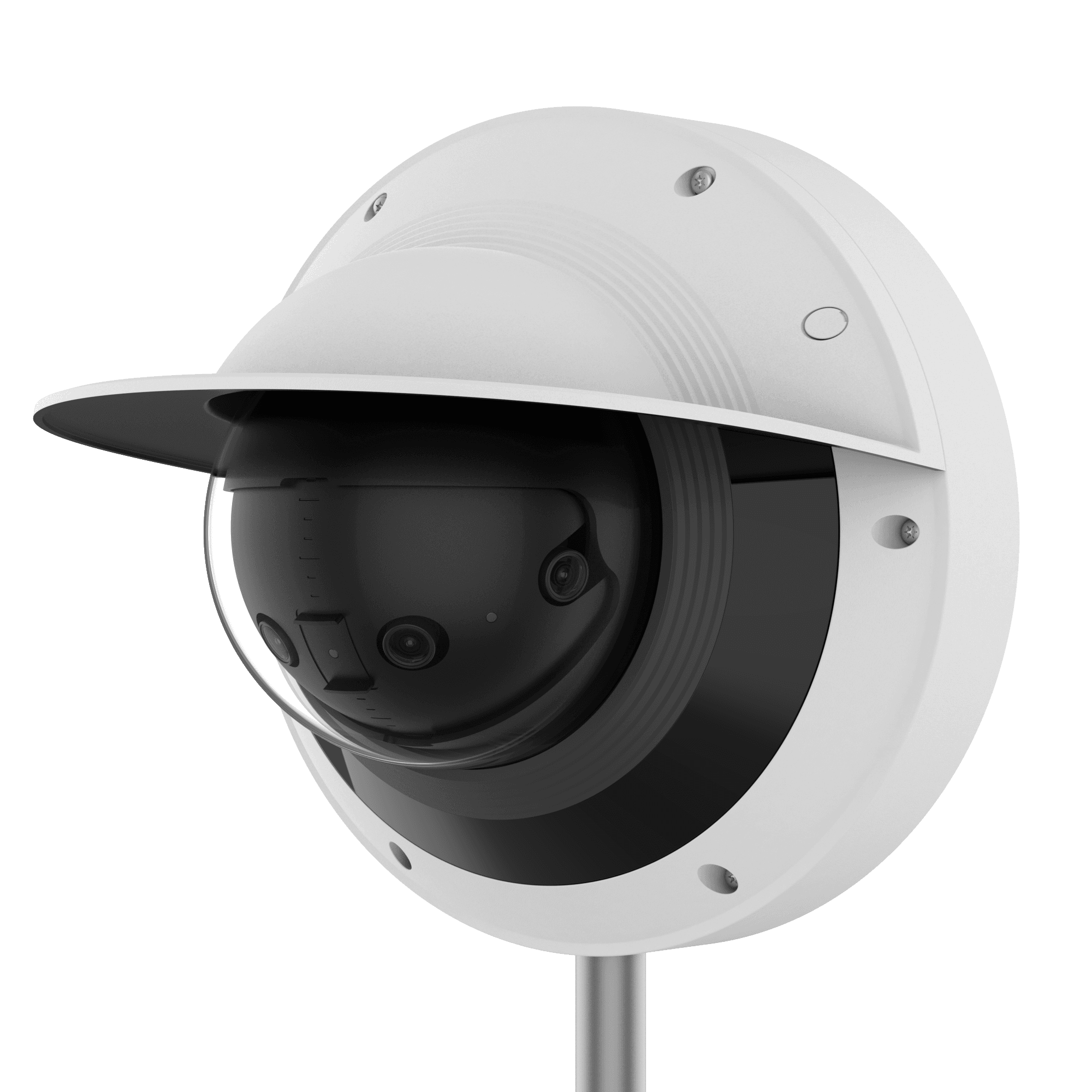

PNM-C9022RV
8MP IR Panoramic CameraKey Features
• Max. 8MP panoramic stitching image
• IR viewable length Maximum 20m (65.6ft), WiseIR
• H.265/H.264/MJPEG Max. 20fps
• H.265, H.264, MJPEG codec
• Day & Night (ICR), extremeWDR (120 dB)
• Hard-coated dome bubble
• WiseNRⅡ(Based on AI engine), WiseStreamⅢ (Based on AI engine)
• Analytics events based on AI engine : Object classification(Person/Vehicle)
• Analytics events : Defocus detection, Motion detection, Tampering, Audio detection,
Sound classification, Virtual area(Appear/Disappear)
• IP66, IK10, NEMA 250 type 4X
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_PNM-C9022RV_240704_DE.pdf | 2026-08-13 | |
| Manuals | Manuals_PNM-C9022RV_240704_EN.pdf | 2026-08-13 | |
| Manuals | Manuals_PNM-C9022RV_240704_ES.pdf | 2026-08-13 | |
| Manuals | Manuals_PNM-C9022RV_240704_FR.pdf | 2026-08-13 | |
| Manuals | Manuals_PNM-C9022RV_240704_IT.pdf | 2026-08-13 | |
| Manuals | Manuals_PNM-C9022RV_240704_PL.pdf | 2026-08-13 | |
| Manuals | Manuals_PNM-C9022RV_240704_PT.pdf | 2026-08-13 | |
| Manuals | Manuals_PNM-C9022RV_240704_TR.pdf | 2026-08-13 | |
| Manuals | Manuals_PNM-C9022RV_240704_ZH.pdf | 2026-08-13 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_PNM-9031RVPNM-C9022RV_221102_Common.dxf | 2026-08-13 | |
| CAD | CAD_PNM-9031RVPNM-C9022RV_221102_Common.pdf | 2026-08-13 |
Certification
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_P_AI_2_11_05_20251105_hva_prod.zip | 2026-08-13 | |
| Firmware | PNM-C9022RV_2.24.01_20260326_R144.zip | 2026-08-13 | |
| Firmware | WiseAI_v_PNM-C9022RV_1_02_01_20251222.zip | 2026-08-13 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_PNM-C9022RV_221118_EN.docx | 2026-08-13 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_PNM-C9022RV_20260806_EN_193908.pdf | 2026-08-13 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_PNM-9031RVPNM-C9022RV_240704_CS.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_PNM-9031RVPNM-C9022RV_240704_DE.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_PNM-9031RVPNM-C9022RV_240704_EN.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_PNM-9031RVPNM-C9022RV_240704_ES.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_PNM-9031RVPNM-C9022RV_240704_FR.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_PNM-9031RVPNM-C9022RV_240704_IT.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_PNM-9031RVPNM-C9022RV_240704_NL.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_PNM-9031RVPNM-C9022RV_240704_PL.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_PNM-9031RVPNM-C9022RV_240704_PT.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_PNM-9031RVPNM-C9022RV_240704_TR.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_PNM-9031RVPNM-C9022RV_240704_ZH.pdf | 2026-08-13 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_PNM-C9022RV_20221208_EN.pdf | 2026-08-13 | |
| Online Help | Online-Help_PNM-C9022RV_20221208_ES.pdf | 2026-08-13 | |
| Online Help | Online-Help_PNM-C9022RV_20221208_FR.pdf | 2026-08-13 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_PNM-C9022RVPNM-9031RV_241128_EN.txt | 2026-08-13 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 5120x1568, 3648x1152, 2560x784, 1280x392 | |
| Max. Framerate | H.265/H.264 | 20fps/20fps(60Hz/50Hz) |
| MJPEG | 20fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.1 |
| BW(1/30sec, 30IRE) | 0.01 | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 2.8 | |
| Zoom Ratio | Optical | 4x |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 209° |
| Vertical | 60° | |
| Min. Object Distance | 5m(16.4ft) | |
| Focus Control | Fixed | |
| Lens Type | Fixed iris |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~65° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 10ea |
| Shape | Rectangular zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 2~1/12,000sec | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | WiseIR 20m(65.62ft) 4 individual zones with Automatic/Manual level adjustment |
| IR Wavelength | 850nm |
Analytics
| Classified Object Type | Person, Vehicle | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) |
| Normal | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear) |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast) | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | TPM(Trusted platform module), SDcard partition encrypt(AES-256) | |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 |
General
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE | Max. 24.5W, typical 11.3W |
| 12VDC | Max. 22W, typical 10.4W | |
| Power Redundance Failover | Support |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø253x170mm(9.96x6.69") | |
| Product Weight | 2,900g(6.39lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 52.2m(171.25ft) |
| Observe (63PPM/ 19PPF) | Wide | 20.9m(68.50ft) |
| Recognize (125PPM/ 38PPF) | Wide | 10.4m(34.25ft) |
| Identify (250PPM/ 76PPF) | Wide | 5.2m(17.13ft) |
