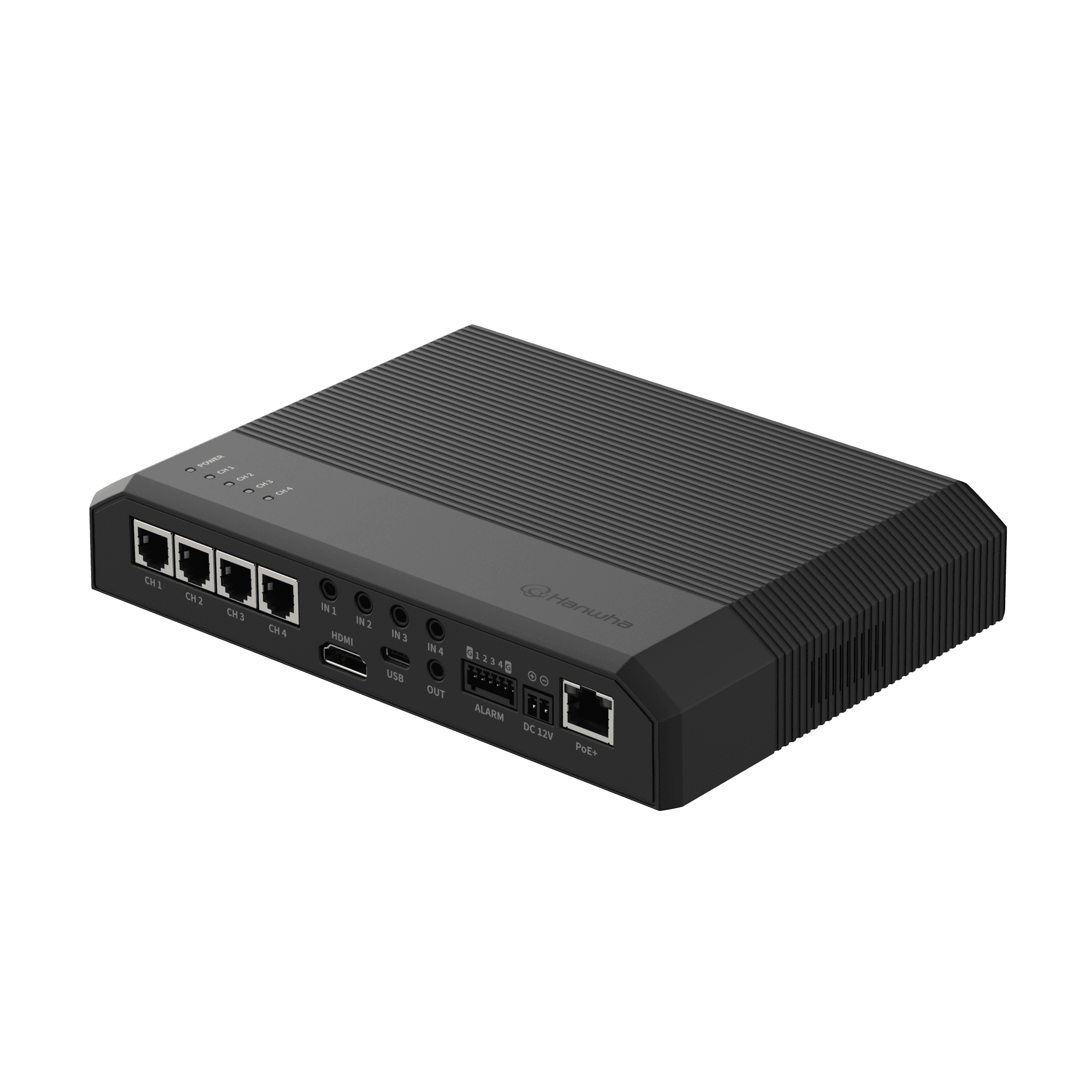

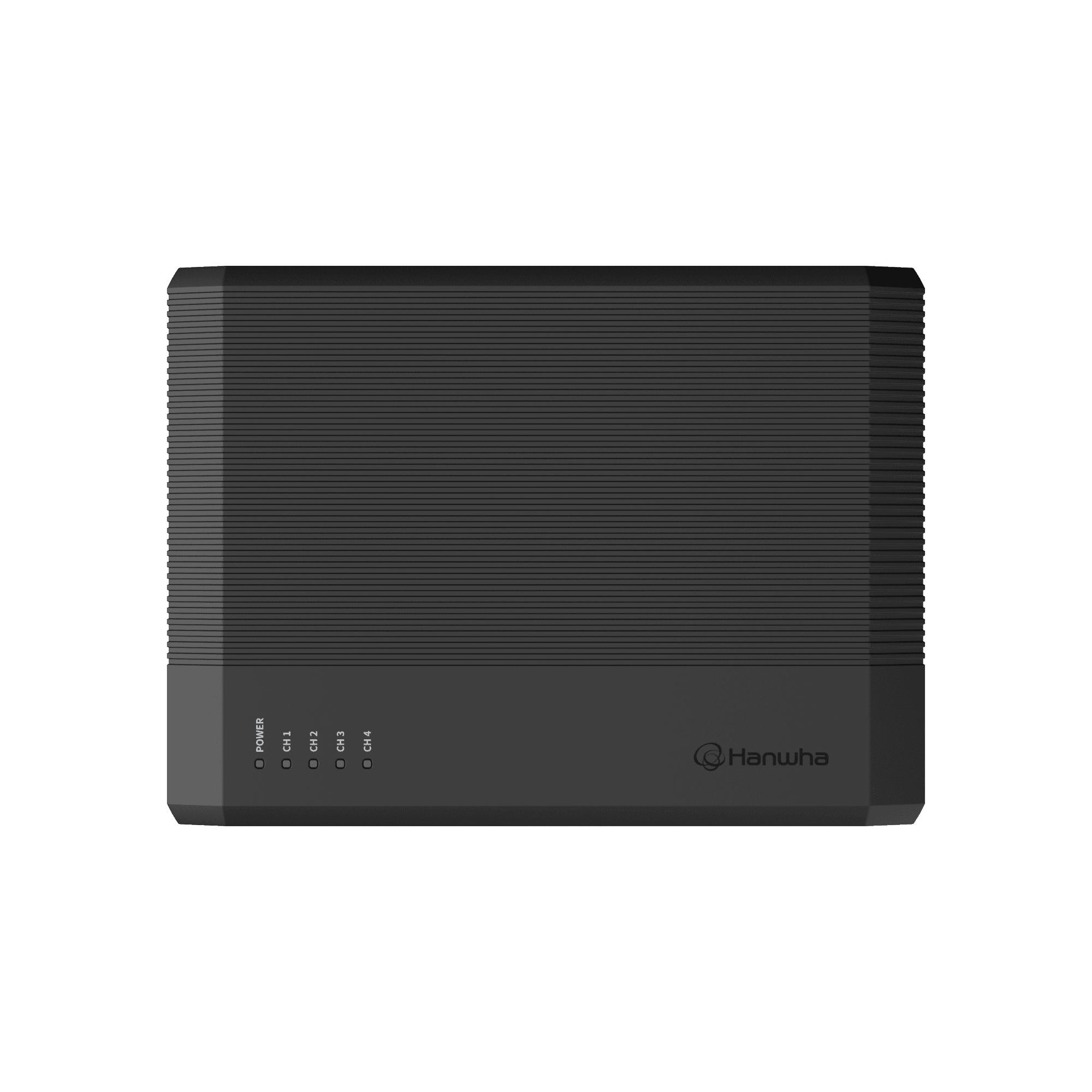

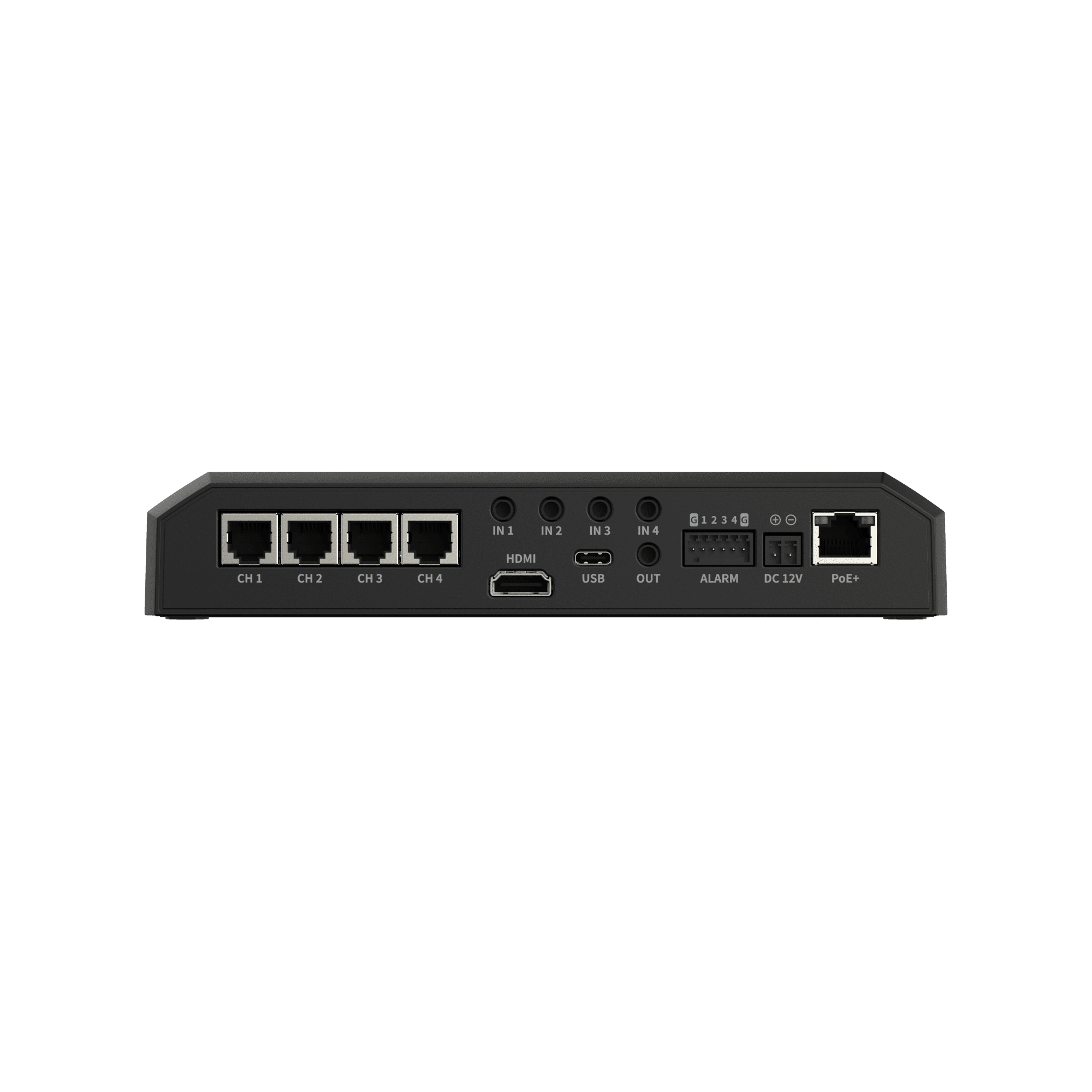

PNM-C20000QB
5MP / 2MP x 4CH AI remote-head CameraKey Features
- 5MP or 2MP x 4CH
- 4 Audio Inputs & 1 Audio Output
- Shock Detection
- HDMI Local Monitoring
- Unicast (20 users) / Multicast
- AI Based Analytics and Business Intelligence
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_PNM-C20000QB_250729_RU.pdf | 2026-06-18 | |
| Manuals | Manuals_PNM-C20000QB_250729_ZH-TW.pdf | 2026-06-18 | |
| Manuals | Manuals_PNM-C20000QB_250922_EN.pdf | 2026-06-18 | |
| Manuals | Manuals_PNM-C20000QB_251014_DE.pdf | 2026-06-18 | |
| Manuals | Manuals_PNM-C20000QB_251014_ES.pdf | 2026-06-18 | |
| Manuals | Manuals_PNM-C20000QB_251014_FR.pdf | 2026-06-18 | |
| Manuals | Manuals_PNM-C20000QB_251014_IT.pdf | 2026-06-18 | |
| Manuals | Manuals_PNM-C20000QB_251014_PL.pdf | 2026-06-18 | |
| Manuals | Manuals_PNM-C20000QB_251014_PT.pdf | 2026-06-18 | |
| Manuals | Manuals_PNM-C20000QB_251014_TR.pdf | 2026-06-18 | |
| Manuals | Manuals_PNM-C20000QB_251014_ZH.pdf | 2026-06-18 | |
| Manuals | Manuals_SMT-3231PV%2CSMT-3221PV%2CSMT-2731PV%2CSMT-2721PV%2CSMT-2721PVW_251014_EN.pdf | 2026-06-18 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_PNM-C20000QB_250422_Common.dxf | 2026-06-18 | |
| CAD | CAD_PNM-C20000QB_250422_Common.pdf | 2026-06-18 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_PNM-C20000QB_250217_EN_DoC_CE.pdf | 2026-06-18 | |
| Certification | Certification_PNM-C20000QB_250217_EN_DoC_UKCA.pdf | 2026-06-18 | |
| Certification | Certification_PNM-C20000QB_250217_EN_EMC_CE,UKCA.pdf | 2026-06-18 | |
| Certification | Certification_PNM-C20000QB_250217_EN_FCC,IC.pdf | 2026-06-18 | |
| Certification | Certification_PNM-C20000QB_250217_EN_RCM.pdf | 2026-06-18 | |
| Certification | Certification_PNM-C20000QB_250217_EN_VCCI.pdf | 2026-06-18 | |
| Certification | Certification_PNM-C20000QB_250225_EN_UL.pdf | 2026-06-18 | |
| Certification | Certification_PNM-C19183RVTP%2CPNM-C20000QB%2CPNM-C32083RQZ%2CPNM-C16083RQZ_250822_EN_ETSI-EN-303-645.pdf | 2026-06-18 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_NOVATEK_2_14_07_20260506_hva_prod.zip | 2026-06-25 | |
| Firmware | PNM-C20000QB_25.02.05_20260528_R496.zip | 2026-06-25 | |
| Firmware | WiseAI_v_PNM-C20000QB_25_02_05_20260520.zip | 2026-06-25 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_PNM-C20000QB_250404_EN.docx | 2026-06-18 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_PNM-C20000QB_20260612_EN_170800.pdf | 2026-06-18 | |
| DataSheet | DataSheet_PNM-C20000QB_20260612_EN_170801.pdf | 2026-06-18 |
Quick Guide
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_PNM-C20000QB_20250523_EN-1.pdf | 2026-06-18 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_PNM-C20000QB_250612_EN.txt | 2026-06-18 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation-Guide-Sheet_PNM-C20000QB_250307_Common.pdf | 2026-06-18 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_PNM-C20000QB_250612_EN_cyclonedx.json | 2026-06-18 |
Specifications
Video
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240, 320x180 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle., HDMI(Single/Quad view) |
Lens
| Optional Lens | SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA, SLA-T2480WDA, SLA-T2480WA, SLA-T2480BA, SLA-T2880BA, SLA-T4680DA, SLA-T4680DSA, SLA-F1080FA, SLA-F2480A, SLA-F2480VA, SLA-F4780A, SLA-F4780VA, SLA-F2480WDA, SLA-F2480WA, SLA-F2480BA, SLA-F2480DA, SLA-F2480DSA, SLA-F2480HA |
Operational
| Day & Night | Auto(Electrical) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 16ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) - Each channel separately | |
| Alarm Interface | In/Out | 4 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | 4 x Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | Upper/Lower clothes color |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Normal | Defocus detection, Motion detection, Tampering, Audio detection, Shock detection | |
| Business Intelligence | Based on AI Engine | People counting, Vehicle counting |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps) | |
| Smart Codec | WiseStream(Based on AI engine) | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 4 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS) | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element | |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) |
General
| SoC | Type | NT98690 |
| Memory | RAM | 8GB |
| Flash | 8GB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1TB x 2slot(Total 2TB) |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+45°C(+14°F~+113°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE | Max. 25.5W, typical 23.8W |
| 12VDC | Max. 23.1W, typical 21.5W |
Mechanical
| Color | Black | |
| Material | Plastic | |
| Material Management | Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| RAL Code | RAL9005 | |
| Product Dimensions | 200(W)x37(H)x146(D)mm(7.87x1.46x5.75") | |
| Product Weight | 1,015g(2.24lb) |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000 |
