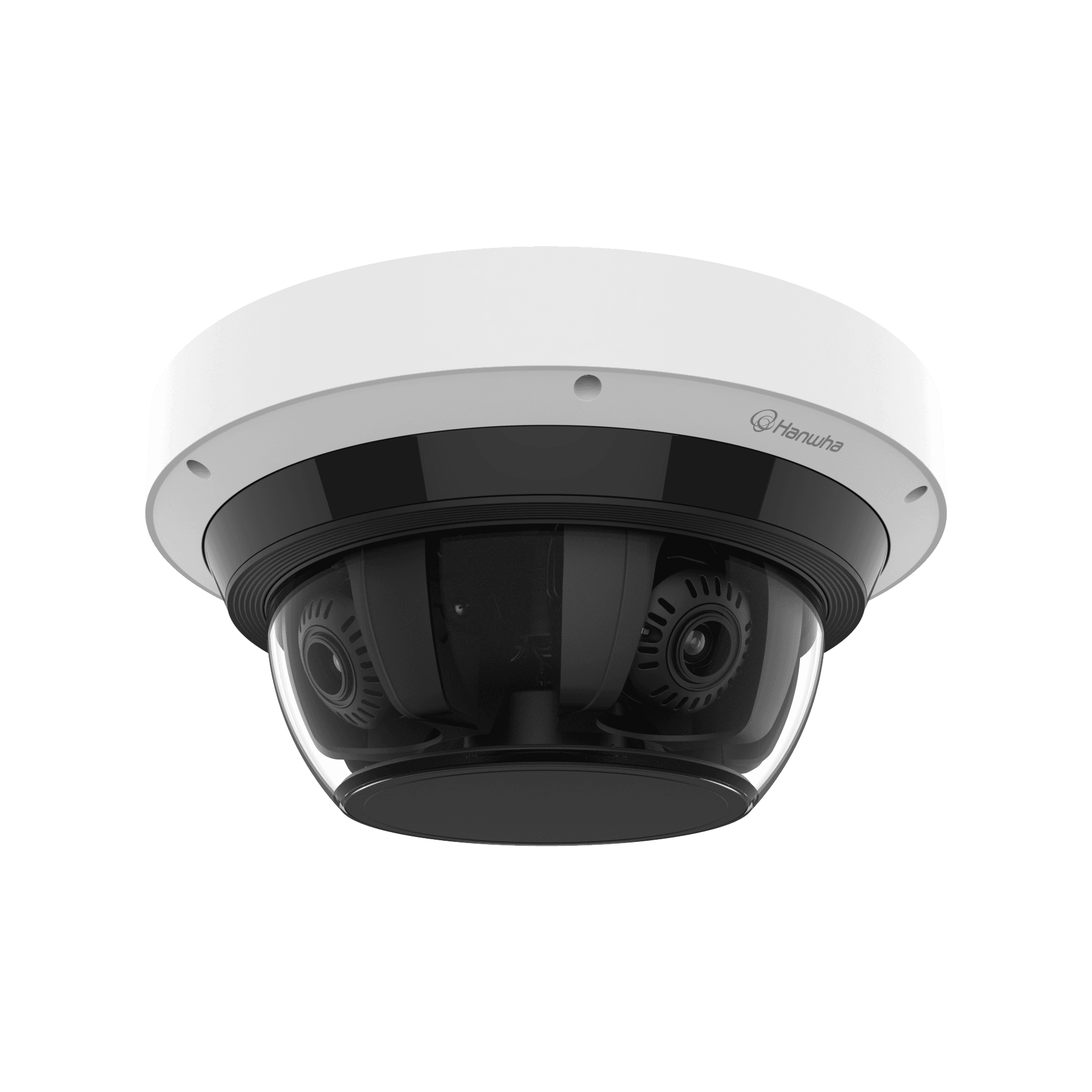

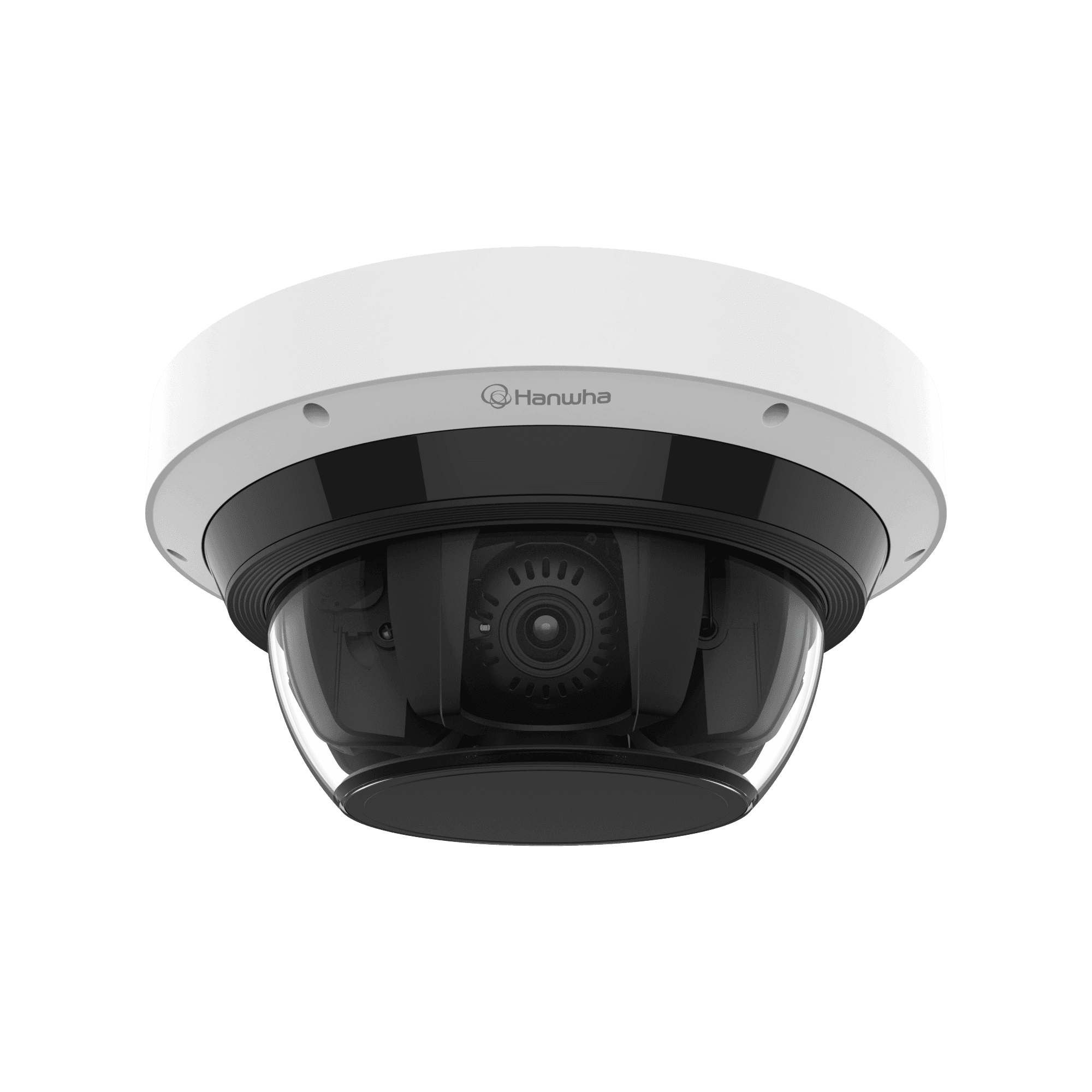

PNM-C16083RQZ
4MP x 4CH Multi-directional CameraKey Features
- 4MP x 4 Channels
- 3.2~10.2mm Focal Length
- 20m IR Length
- Remote PTRZ
- Easy Setup
- FoV – H: 93°~29° V: 53°~17° /D: 111°~34°
- AI Based Analytics, BestShot support
- TPM 2.0 with FIPS 140-2 level2
- IP66, IK10, NEMA4X rated
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_PNM-C32083RQZ,PNM-C16083RQZ_240716_EN.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_PNM-C32083RQZPNM-C16083RQZ_240527_Common-1.pdf | 2026-08-06 | |
| CAD | CAD_PNM-C32083RQZ%2CPNM-C16083RQZ_240527_Common.dxf | 2026-08-06 |
Certification
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_CV5_2_15_02_20260605_hva_prod.zip | 2026-08-06 | |
| Firmware | PNM-C32083RQZ_26.01.05_20260702_R635.zip | 2026-08-06 | |
| Firmware | WiseAI_v_PNM-C32083RQZ_25_01_03_20250610.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_PNM-C16083RQZ_241017_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_PNM-C16083RQZ_20260806_EN_175756.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_PNM-C16083RQZ_240802_EN.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_PNM-C16083RQZPNM-C32083RQZ_20250106_EN.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_PNM-C16083RQZ%2CPNM-C32083RQZ_250513_EN.txt | 2026-08-06 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_PNM-C16083RQZ%2CPNM-C32083RQZ_250513_EN_cyclonedx.json | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 2592x1520, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@4MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.1 |
| BW(1/30sec, 30IRE) | 0.01 |
Lens
| Focal Length (mm) | 3.2~10.2 | |
| Zoom Ratio | Optical | 3.2x |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Tele | 3.1 | |
| Angular Field of View | Horizontal | 93°~29° |
| Vertical | 53°~17° | |
| Diagonal | 111°~34° | |
| Min. Object Distance | 1.2m(3.93ft) | |
| Focus Control | Simple focus | |
| Lens Type | P iris |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 30°~90° | |
| Rotate | 0°~90° | |
| Others | Remote adjustment(Max. 200cycles) |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Black, White | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 1/5~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) - Each channel separately | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription, Case tampering | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication | |
| Audio In | Support via optional I/O box | |
| Audio Out | Support via optional I/O box | |
| Light Type | IR LED | |
| Light Viewable Length | IR | WiseIR: PoE++ 20m(65.62ft) / PoE+ 15m(49.21ft) |
| IR Wavelength | 850nm |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | Upper/Lower clothes color |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) |
| Normal | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear) |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 10 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure) | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | TPM(Trusted platform module), SDcard partition encrypt(AES-256) | |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2, Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) |
General
| SoC | Type | CV5 |
| Memory | RAM | 8GB |
| Flash | 8GB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~100% RH(condensing) | |
| Others | Start up should be done at above -35°C, Humidity control with AIR vent | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| EPA(Effective Projected Area) | 0.035㎡ | |
| Input Voltage | PoE+(IEEE802.3at, Class4), PoE++(IEEE802.3bt type3, Class6) | |
| Power Consumption | PoE | Max. 41W, typical 22W |
| Others | PoE+: Max. 25.5W, typical 22W |
Mechanical
| Color | White | |
| Material | Aluminum, PC(Polycarbonate), Hard-coated dome | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø312.7x145.9mm(ø12.31x5.74") | |
| Product Weight | 4,400g(9.7lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 49.2m(161.40ft) |
| Tele | 200.5m(657.65ft) | |
| Observe (63PPM/ 19PPF) | Wide | 19.7m(64.56ft) |
| Tele | 80.2m(263.06ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 9.8m(32.28ft) |
| Tele | 40.1m(131.53ft) | |
| Identify (250PPM/ 76PPF) | Wide | 4.9m(16.14ft) |
| Tele | 20.0m(65.76ft) |
