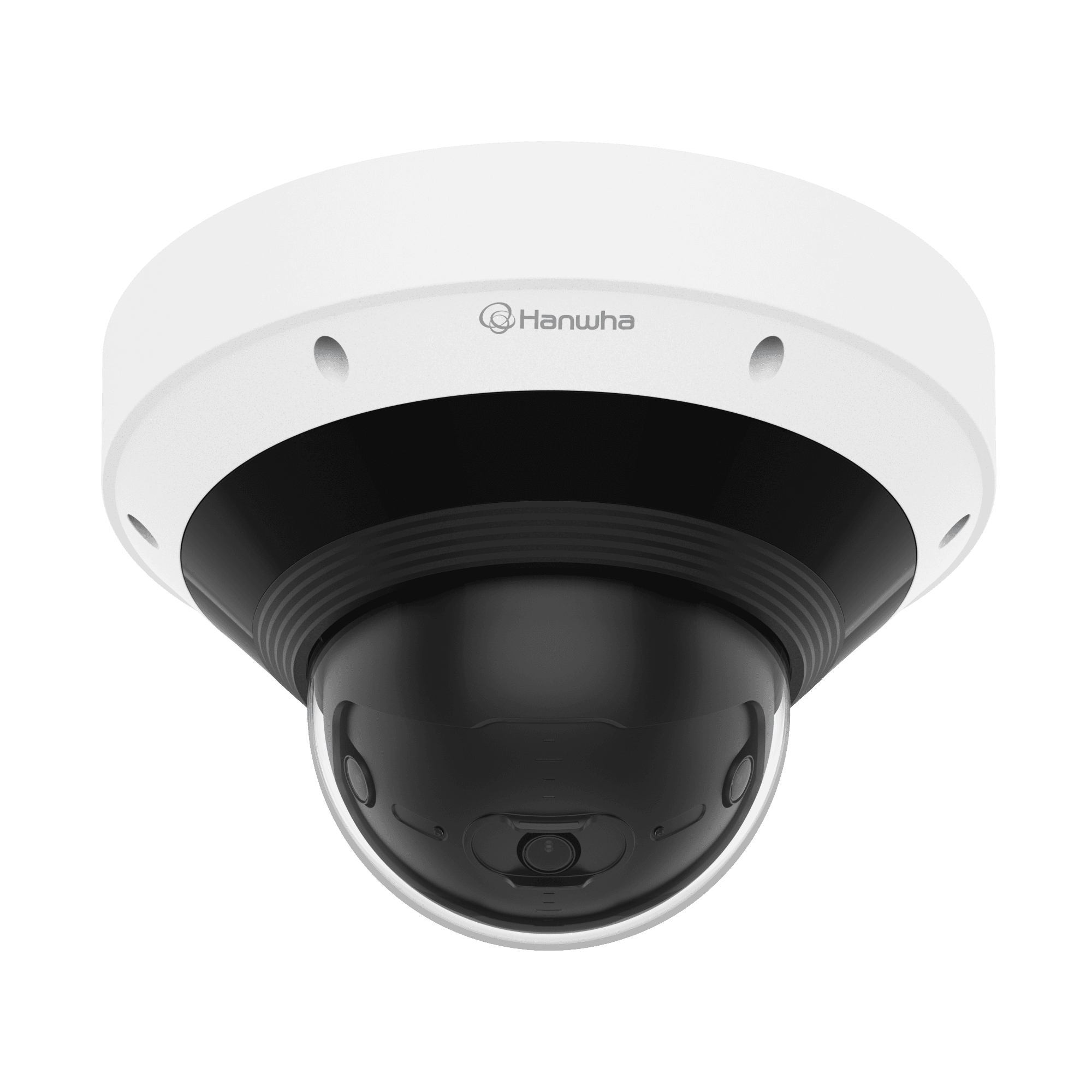

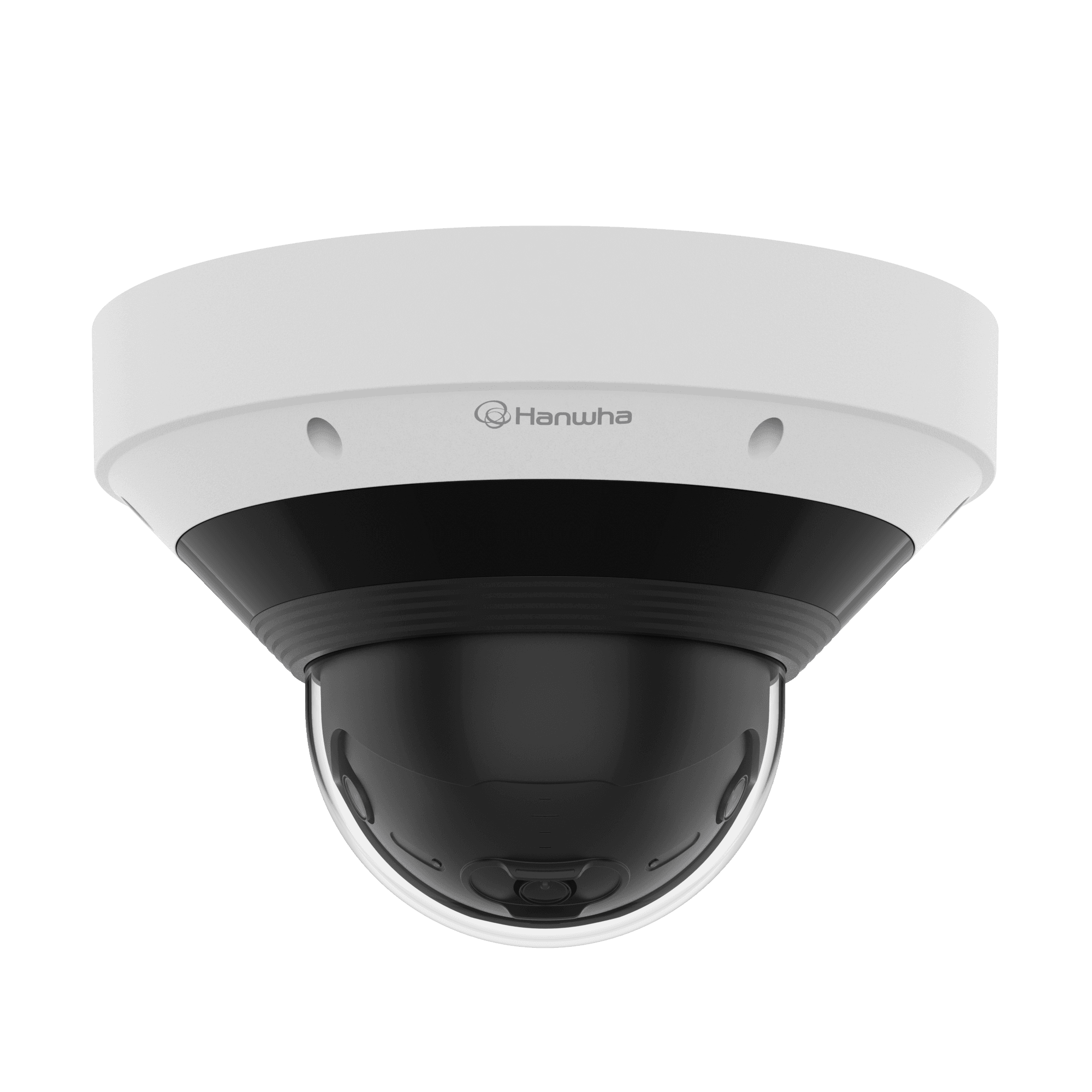

PNM-A13022RV
13MP AI IR Panoramic CameraKey Features
- 13MP Image Resolution
- Horizontal FOV 194°
- Vertical FOC 93°
- 20m IR Lengh
- H.265/H.264/MJPEG Max 30fps
- Object detection, Intelligent Video Analytics, Slip & Fall detection, Facemask detection, Social distancing detection, Motion detection
- People/Vehicle/Crowd counting, Queue management, Heatmap
- BestShot and full attributes
- IP66, NEMA4X, IK10
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_PNM-A13022RV_251127_DE.pdf | 2026-06-12 | |
| Manuals | Manuals_PNM-A13022RV_251127_EN.pdf | 2026-06-12 | |
| Manuals | Manuals_PNM-A13022RV_251127_ES.pdf | 2026-06-12 | |
| Manuals | Manuals_PNM-A13022RV_251127_FR.pdf | 2026-06-12 | |
| Manuals | Manuals_PNM-A13022RV_251127_IT.pdf | 2026-06-12 | |
| Manuals | Manuals_PNM-A13022RV_251127_PL.pdf | 2026-06-12 | |
| Manuals | Manuals_PNM-A13022RV_251127_PT.pdf | 2026-06-12 | |
| Manuals | Manuals_PNM-A13022RV_251127_TR.pdf | 2026-06-12 | |
| Manuals | Manuals_PNM-A13022RV_251127_ZH-TW.pdf | 2026-06-12 | |
| Manuals | Manuals_PNM-A13022RV_251127_ZH.pdf | 2026-06-12 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_PNM-A13022RV_251124_Common.dxf | 2026-06-12 | |
| CAD | CAD_PNM-A13022RV_251124_Common.pdf | 2026-06-12 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_PNM-A13022RV_250819_EN_DoC_CE.pdf | 2026-06-12 | |
| Certification | Certification_PNM-A13022RV_250819_EN_DoC_UKCA.pdf | 2026-06-12 | |
| Certification | Certification_PNM-A13022RV_250819_EN_EMC_CE%2CUKCA.pdf | 2026-06-12 | |
| Certification | Certification_PNM-A13022RV_250819_EN_FCC%2CIC.pdf | 2026-06-12 | |
| Certification | Certification_PNM-A13022RV_250819_EN_RCM.pdf | 2026-06-12 | |
| Certification | Certification_PNM-A13022RV_250819_EN_VCCI.pdf | 2026-06-12 | |
| Certification | Certification_PNM-A13022RV_250825_EN_IK10.pdf | 2026-06-12 | |
| Certification | Certification_PNM-A13022RV_250825_EN_IP66.pdf | 2026-06-12 | |
| Certification | Certification_PNM-A13022RV_250825_EN_NEMA%204X.pdf | 2026-06-12 | |
| Certification | Certification_PNM-A13022RV_250825_EN_NEMA%20TS2.pdf | 2026-06-12 | |
| Certification | Certification_PNM-A13022RV_250919_EN_UL.pdf | 2026-06-12 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_NOVATEK_2_13_04_20251210_hva_prod.zip | 2026-06-25 | |
| Firmware | PNM-A13022RV_25.02.00_20260402_R349.zip | 2026-06-25 | |
| Firmware | WiseAI_v_PNM-A13022RV_25_01_00_20251110.zip | 2026-06-25 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | A%26E%20Document_PNM-A13022RV_260304_EN.docx | 2026-06-12 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_PNM-A13022RV_20260219_EN_104613.pdf | 2026-06-12 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick%20Guide_PNM-A13022RV_251127_AR.pdf | 2026-06-12 | |
| Quick Guide | Quick%20Guide_PNM-A13022RV_251127_CS.pdf | 2026-06-12 | |
| Quick Guide | Quick%20Guide_PNM-A13022RV_251127_DE.pdf | 2026-06-12 | |
| Quick Guide | Quick%20Guide_PNM-A13022RV_251127_EN.pdf | 2026-06-12 | |
| Quick Guide | Quick%20Guide_PNM-A13022RV_251127_ES.pdf | 2026-06-12 | |
| Quick Guide | Quick%20Guide_PNM-A13022RV_251127_FR.pdf | 2026-06-12 | |
| Quick Guide | Quick%20Guide_PNM-A13022RV_251127_IT.pdf | 2026-06-12 | |
| Quick Guide | Quick%20Guide_PNM-A13022RV_251127_NL.pdf | 2026-06-12 | |
| Quick Guide | Quick%20Guide_PNM-A13022RV_251127_PL.pdf | 2026-06-12 | |
| Quick Guide | Quick%20Guide_PNM-A13022RV_251127_PT.pdf | 2026-06-12 | |
| Quick Guide | Quick%20Guide_PNM-A13022RV_251127_TR.pdf | 2026-06-12 | |
| Quick Guide | Quick%20Guide_PNM-A13022RV_251127_ZH-TW.pdf | 2026-06-12 | |
| Quick Guide | Quick%20Guide_PNM-A13022RV_251127_ZH.pdf | 2026-06-12 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online%20Help_PNM-A13022RV_20251124_EN.pdf | 2026-06-12 | |
| Online Help | Online%20Help_PNM-A13022RV_20251124_ES.pdf | 2026-06-12 | |
| Online Help | Online%20Help_PNM-A13022RV_20251124_FR.pdf | 2026-06-12 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_PNM-A13022RV_250806_EN.txt | 2026-06-12 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation%20Guide%20Sheet_PNM-A13022RV_250930_Common.pdf | 2026-06-12 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_PNM-A13022RV_250806_EN_cyclonedx.json | 2026-06-12 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 5120x2592, 4112x2080, 3240x1640, 2940x1488, 2560x1296, 2016x1016, 1600x800, 1424x720, 1280x648, 1016x512, 832x480, 832x416, 800x600, 640x480 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.1 |
| BW(1/30sec, 30IRE) | 0.01 | |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 3.06 | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 194° |
| Vertical | 93° | |
| Min. Object Distance | 5m(16.4ft) | |
| Focus Control | Fixed |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~50° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 4ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 20m(65.62ft) 4 individual zones with Automatic/Manual level adjustment |
| IR Wavelength | 850nm |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | Upper/Lower clothes color, Gender, Bag |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Face | Age, Gender, Face mask, Glasses | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection |
| Normal | Defocus detection, Tampering, Audio detection, Virtual area(Appear/Disappear) | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz, OPUS: 48kHz(64kbps) | |
| Smart Codec | Manual, WiseStream(Based on AI engine) | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 4 profiles, 3 virtual channel support | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP, 802.1AE(MACsec) | |
| Access Control | IP-based access control, MAC-based access control, Auto logout | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element | |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
General
| SoC | Type | NT98692 |
| Memory | RAM | 8GB |
| Flash | 8GB eMMC | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1TB x 2slot(Total 2TB) |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~100% RH(condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| EPA(Effective Projected Area) | 0.0286 ㎡ | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE | Max 22.3W, typical 11.5W |
| 12VDC | Max 20.0W, typical 10.0W | |
| Power Redundance Failover | Support |
Mechanical
| Color | White | |
| Material | Aluminum, Hard-coated dome | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø253x170mm(9.96x6.69") | |
| Product Weight | 2,800g(6.17lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 43.8m(143.85ft) |
| Observe (63PPM/ 19PPF) | Wide | 17.5m(57.54ft) |
| Recognize (125PPM/ 38PPF) | Wide | 8.8m(28.77ft) |
| Identify (250PPM/ 76PPF) | Wide | 4.4m(14.39ft) |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 5120x2592, 4112x2080, 3240x1640, 2940x1488, 2560x1296, 2016x1016, 1600x800, 1424x720, 1280x648, 1016x512, 832x480, 832x416, 800x600, 640x480 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.1 |
| BW(1/30sec, 30IRE) | 0.01 | |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 3.06 | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 194° |
| Vertical | 93° | |
| Min. Object Distance | 5m(16.4ft) | |
| Focus Control | Fixed |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~50° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 4ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 20m(65.62ft) 4 individual zones with Automatic/Manual level adjustment |
| IR Wavelength | 850nm |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | Upper/Lower clothes color, Gender, Bag |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Face | Age, Gender, Face mask, Glasses | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection |
| Normal | Defocus detection, Tampering, Audio detection, Virtual area(Appear/Disappear) | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz, OPUS: 48kHz(64kbps) | |
| Smart Codec | Manual, WiseStream(Based on AI engine) | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 4 profiles, 3 virtual channel support | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP, 802.1AE(MACsec) | |
| Access Control | IP-based access control, MAC-based access control, Auto logout | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element | |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
General
| SoC | Type | NT98692 |
| Memory | RAM | 8GB |
| Flash | 8GB eMMC | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1TB x 2slot(Total 2TB) |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~100% RH(condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| EPA(Effective Projected Area) | 0.0286 ㎡ | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE | Max 22.3W, typical 11.5W |
| 12VDC | Max 20.0W, typical 10.0W | |
| Power Redundance Failover | Support |
Mechanical
| Color | White | |
| Material | Aluminum, Hard-coated dome | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø253x170mm(9.96x6.69") | |
| Product Weight | 2,800g(6.17lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 43.8m(143.85ft) |
| Observe (63PPM/ 19PPF) | Wide | 17.5m(57.54ft) |
| Recognize (125PPM/ 38PPF) | Wide | 8.8m(28.77ft) |
| Identify (250PPM/ 76PPF) | Wide | 4.4m(14.39ft) |
Accessories
SBP-250HMW
SBP-140CMB
SBP-180CMB
SBP-180CMS
SBP-150CMP
SBP-300CMP
SBP-900CMP
SBP-C15H
SBP-C15P
SBP-C15NP
SBP-C35H
SBP-150CMI
SBP-300CMI
SBP-300CMW1
SBP-900CMW
SBP-300CMTW
SBP-300CMTS
SBP-250WMW
SBP-400WMW
SBP-115PFA
SBP-150PMW
SBP-156KMW
SBP-150NBW
SBP-060BA
SBP-250C
SPB-MDC21W
SBP-300WMW
SBP-300WMW1
SBP-300BW1
SBP-300PMW2
SBP-300KMW1
SBP-300LMW
SBP-300NBW
Service policies and processesService policies and processes can differ by nation / product / model. For more details, click below to view the warranty information applicable to your product.
Explore official resources, documentation, and insights for Hanwha Vision solutions
© 2026 Hanwha Vision Co., Ltd. All rights Reserved.6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 13488, KOREA
Cookie Policy|Privacy Policy
