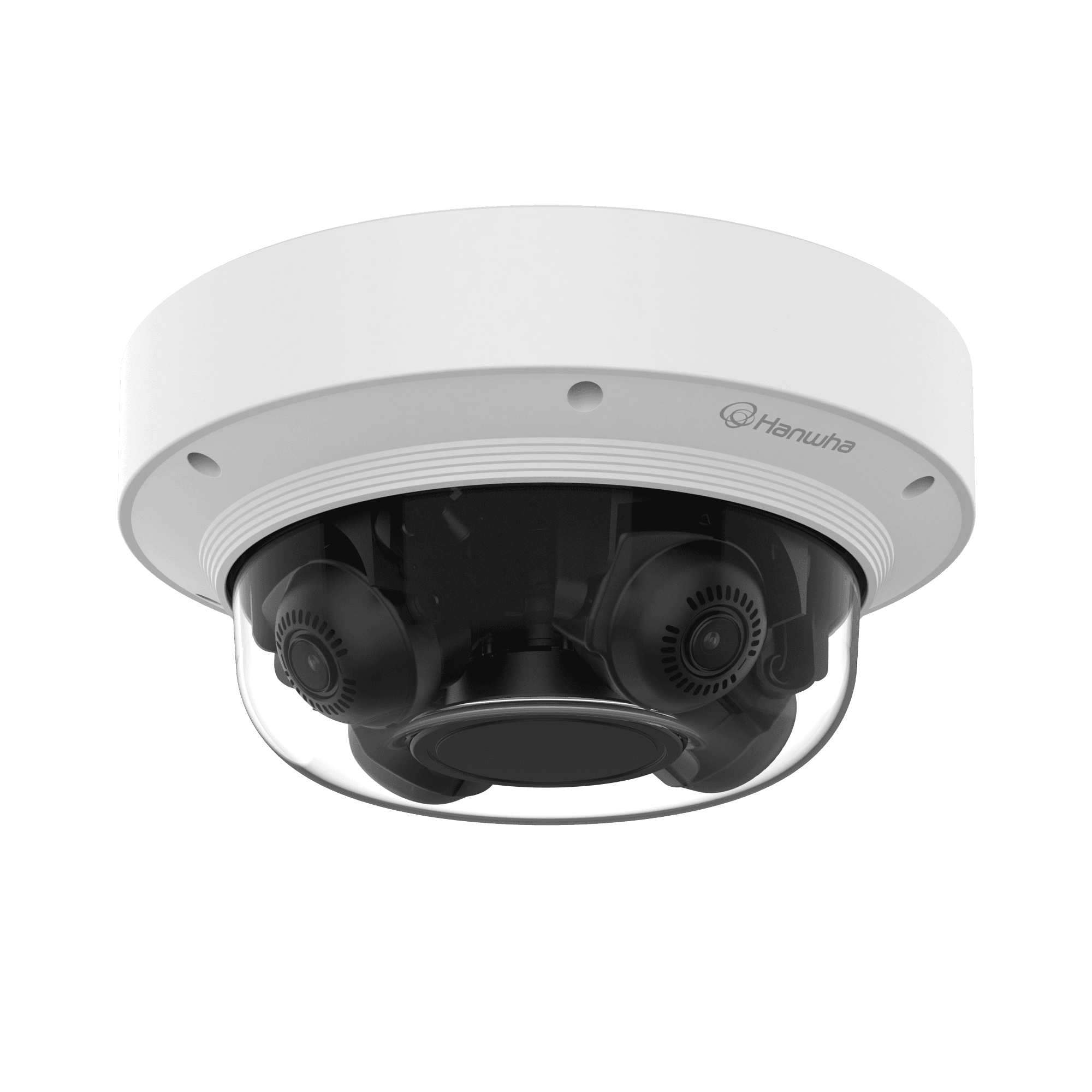

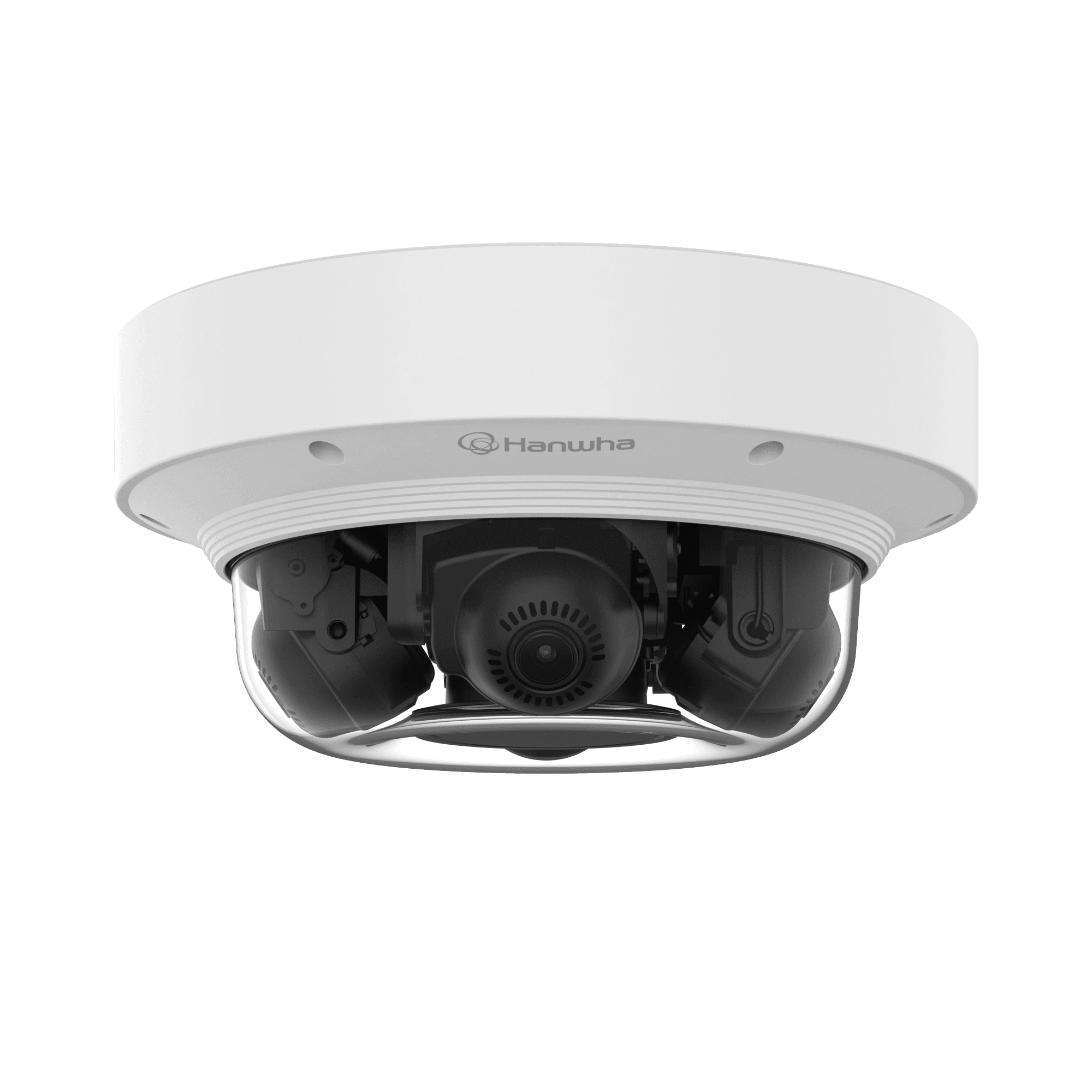

PNM-9084QZ1
2MP x 4CH PTRZ Multi-directional CameraKey Features
• Motorized PTRZ support
• Maximum 60fps@2MP(H.265, H.264)
• 3~6mm(2x) motorized varifocal lens
• H.265, H.264, MJPEG codec, Multi streaming
• Video analytics, WiseStreamⅡ
• IP66, IK10, NEMA4X
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_PNM-9084QZ,PNM-9084QZ1_240605_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9084QZ,PNM-9084QZ1_240605_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9084QZ,PNM-9084QZ1_240605_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9084QZ,PNM-9084QZ1_240605_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9084QZ,PNM-9084QZ1_240605_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9084QZ,PNM-9084QZ1_240605_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9084QZ,PNM-9084QZ1_240605_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9084QZ,PNM-9084QZ1_240605_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9084QZ,PNM-9084QZ1_240605_ZH.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_PNM-9084QZPNM-8082VTPNM-9084QZ1_220314_Common.dxf | 2026-08-06 | |
| CAD | CAD_PNM-9084QZPNM-8082VTPNM-9084QZ1_220314_Common.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_PNM-9084QZ1_220507_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9084QZ1_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9084QZ1_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9084QZ1_230224_EN_EMC_CE(+UKCA).pdf | 2026-08-06 | |
| Certification | Certification_PNM-9084QZ1_230224_EN_FCC,IC.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9084QZ1_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9084QZ1_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9084QZ1_230311_KO_SDoC_KC.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9084QZ1_230321_KO_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_PNM-9084QZ1_230315_KO_Report_KC%25EC%25A0%2584%25EC%259E%2590%25ED%258C%258C.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | PNM-9084QZ_2.24.00_20260316_R640.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_PNM-9084QZ1_220406_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_PNM-9084QZ1_20260806_EN_145907.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_PNM-9084QZPNM-9084QZ1_240605_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9084QZPNM-9084QZ1_240605_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9084QZPNM-9084QZ1_240605_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9084QZPNM-9084QZ1_240605_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9084QZPNM-9084QZ1_240605_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9084QZPNM-9084QZ1_240605_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9084QZPNM-9084QZ1_240605_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9084QZPNM-9084QZ1_240605_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9084QZPNM-9084QZ1_240605_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9084QZPNM-9084QZ1_240605_TR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9084QZPNM-9084QZ1_240605_ZH.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_PNM-9084QZ1PNM-9084RQZ1PNM-9085RQZ1_20220407_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_PNM-9084QZ1PNM-9084RQZ1PNM-9085RQZ1_20220407_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_PNM-9084QZ1PNM-9084RQZ1PNM-9085RQZ1_20220407_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_PNM-9000VD%2CPNM-9084QZ%2CPNM-9084RQZ%2CPNM-9085RQZ%2CPNM-9084QZ1%2CPNM-9084RQZ1_250822_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.04 |
| BW(1/30sec, 30IRE) | 0.004 |
Lens
| Focal Length (mm) | 3~6 | |
| Zoom Ratio | Optical | 2x |
| Max Aperture Ratio (F number) | Wide | 2.2 |
| Tele | 3.1 | |
| Angular Field of View | Horizontal | 107°~56° |
| Vertical | 57°~31° | |
| Diagonal | 126°~64° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus | |
| Lens Type | Fixed iris |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~73° | |
| Rotate | 0°~90° | |
| Others | Remote adjustment(Max. 200cycles) |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP | |
| Application Programming Interface | ONVIF | S, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) |
General
| Memory | RAM | 5GB |
| Flash | 1280MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 4slot(Total 1TB) |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Others | Start up should be done at above -35°C | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE++(IEEE802.3bt type4, Class8) | |
| Power Consumption | PoE | Max. 33W, typical 20W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø251x116.5mm(9.88x4.59") | |
| Product Weight | 3,000g(6.61lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| Environment | IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 28.4m(11.18ft) |
| Tele | 71.8m(28.27ft) | |
| Observe (63PPM/ 19PPF) | Wide | 11.4m(4.49ft) |
| Tele | 28.7m(11.30ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 5.7m(2.24ft) |
| Tele | 14.4m(5.67ft) | |
| Identify (250PPM/ 76PPF) | Wide | 2.8m(1.10ft) |
| Tele | 7.8m(3.07ft) |
