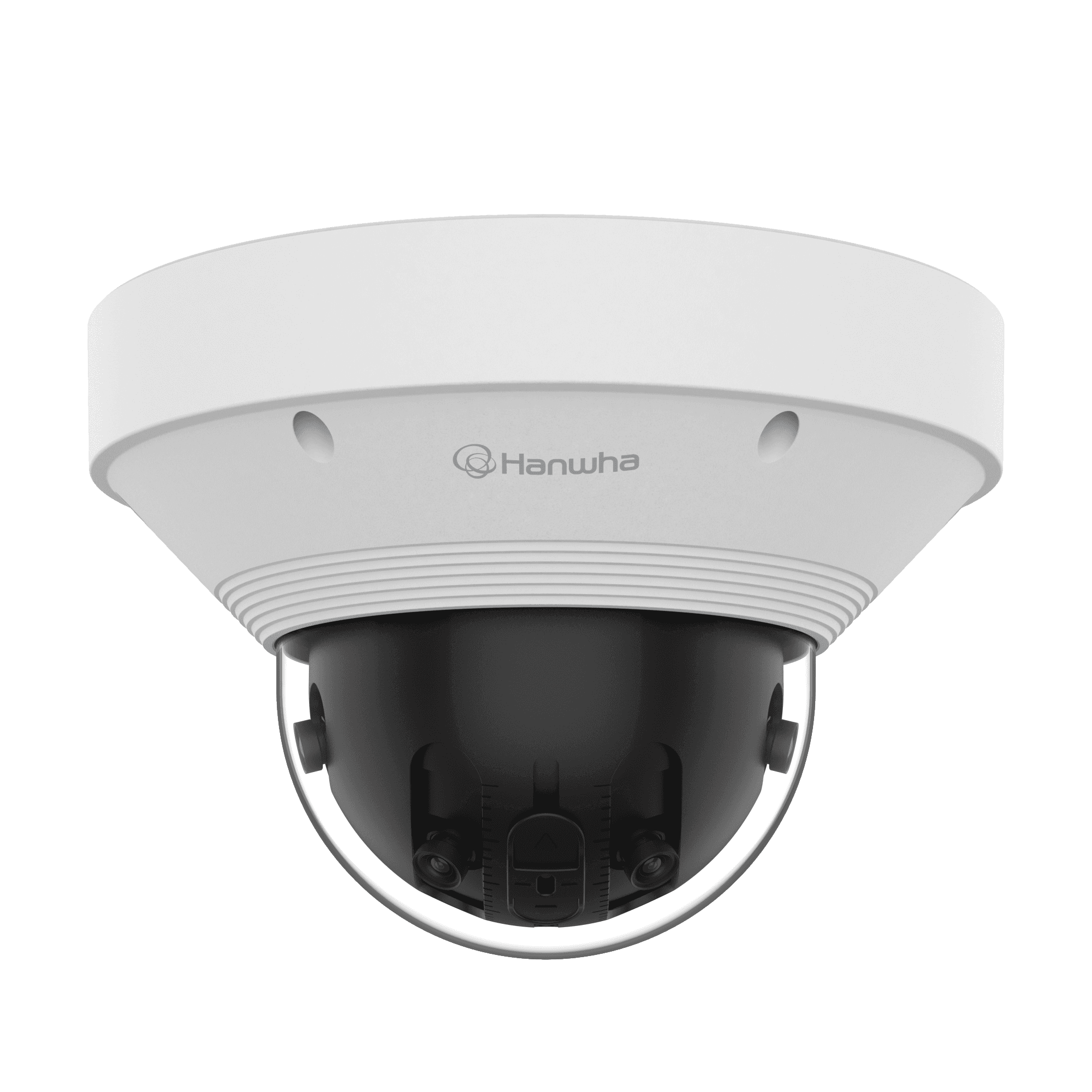

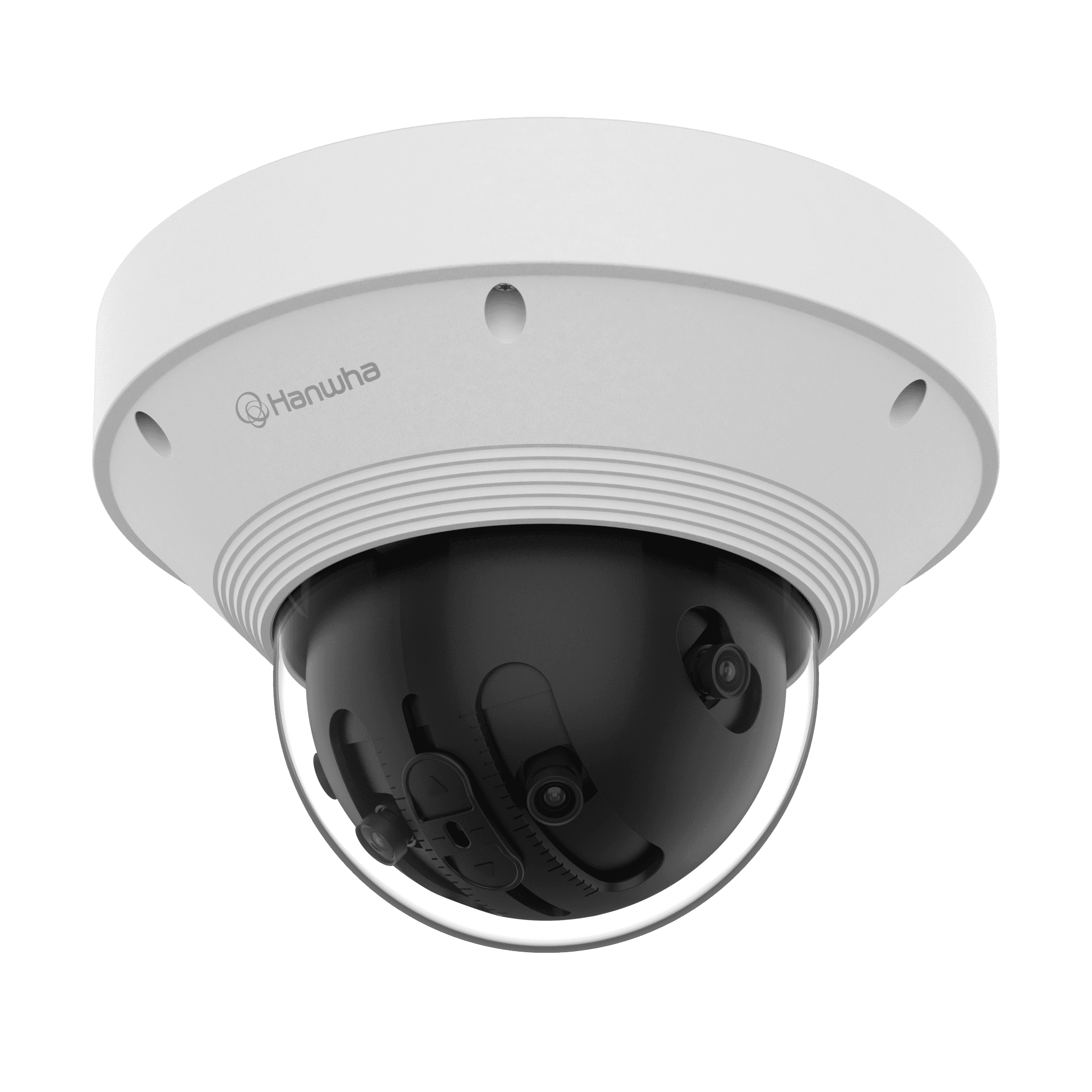

PNM-9022V
8MP Panoramic CameraKey Features
• Max. 2MP x 4CH
• 209° Mode, 180° Mode support
• 2.8mm fixed focal lens x 4
• H.265/H.264 : Max. 30fps
• MJPEG : Max. 30fps
• extreme WDR (120dB)
• H.265, H.264, MJPEG codec, WiseStreamII supported
• Digital PTZ Support (2CH)
• Tampering, Heatmap
• IP66, IK10, NEMA4X
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_PNM-9022V_240703_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9022V_240703_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9022V_240703_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9022V_240703_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9022V_240703_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9022V_240703_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9022V_240703_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9022V_240703_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9022V_240703_ZH.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_PNM-9022V_201105.dwg | 2026-08-06 | |
| CAD | CAD_PNM-9022V_201105.dxf | 2026-08-06 | |
| CAD | CAD_PNM-9022V_201105.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_PNM-9022V_201127_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9022V_210531_EN_IP66.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9022V_210611_EN_IK10.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9022V_210617_EN_NEMA4X.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9022V_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9022V_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9022V_230224_EN_EMC_CE(+UKCA).pdf | 2026-08-06 | |
| Certification | Certification_PNM-9022V_230224_EN_FCC,IC.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9022V_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9022V_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9022V_230311_KO_SDoC_KC.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9022V_230315_KO_Report_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_PNM-9022V_230315_KO_Report_KC(TEL).pdf | 2026-08-06 | |
| Certification | Certification_PNM-9022V_230321_KO_KC(EMC).pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | PNM-9022V_2.22.01_20260616_R190.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_PNM-9022V_201214_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_PNM-9022V_20260806_EN_130221.pdf | 2026-08-06 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_PNM-9022V_201221_Common_inch.rfa | 2026-08-06 | |
| BIM&Revit | BIM&Revit_PNM-9022V_201221_Common_mm.rfa | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_PNM-9022V_240703_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9022V_240703_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9022V_240703_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9022V_240703_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9022V_240703_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9022V_240703_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9022V_240703_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9022V_240703_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9022V_240703_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9022V_240703_TR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9022V_240703_ZH.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_PNM-9022V_20201112_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_PNM-9022V_20201112_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_PNM-9022V_20201112_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_PNM-9022V_201020_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 4608x1800, 4096x1800, 4032x1576, 3584x1576, 3456x1352, 3072x1352, 2864x1124, 2560x1124, 2304x900, 2048x900, 1728x676, 1536x676, 1152x452, 1024x452, 720x576, 560x224, 512x224 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.1 |
| BW(1/30sec, 30IRE) | 0.01 | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 2.8 | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 209° |
| Vertical | 83.3° | |
| Min. Object Distance | 1.5m(4.92ft) | |
| Focus Control | Fixed |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~355° |
| Tilt | 0°~60° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Audio detection, Virtual area(Intrusion/Enter/Exit), Virtual area(Appear/Disappear), Virtual line(Crossing, Direction) |
| Business Intelligence | Normal | Heatmap |
Network
| Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE | Max. 18W, typical 10.4W |
| 12VDC | Max. 16W, typical 9W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø253x165mm(9.96x6.5") | |
| Product Weight | 3,200g(7.05lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| Environment | IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X |
