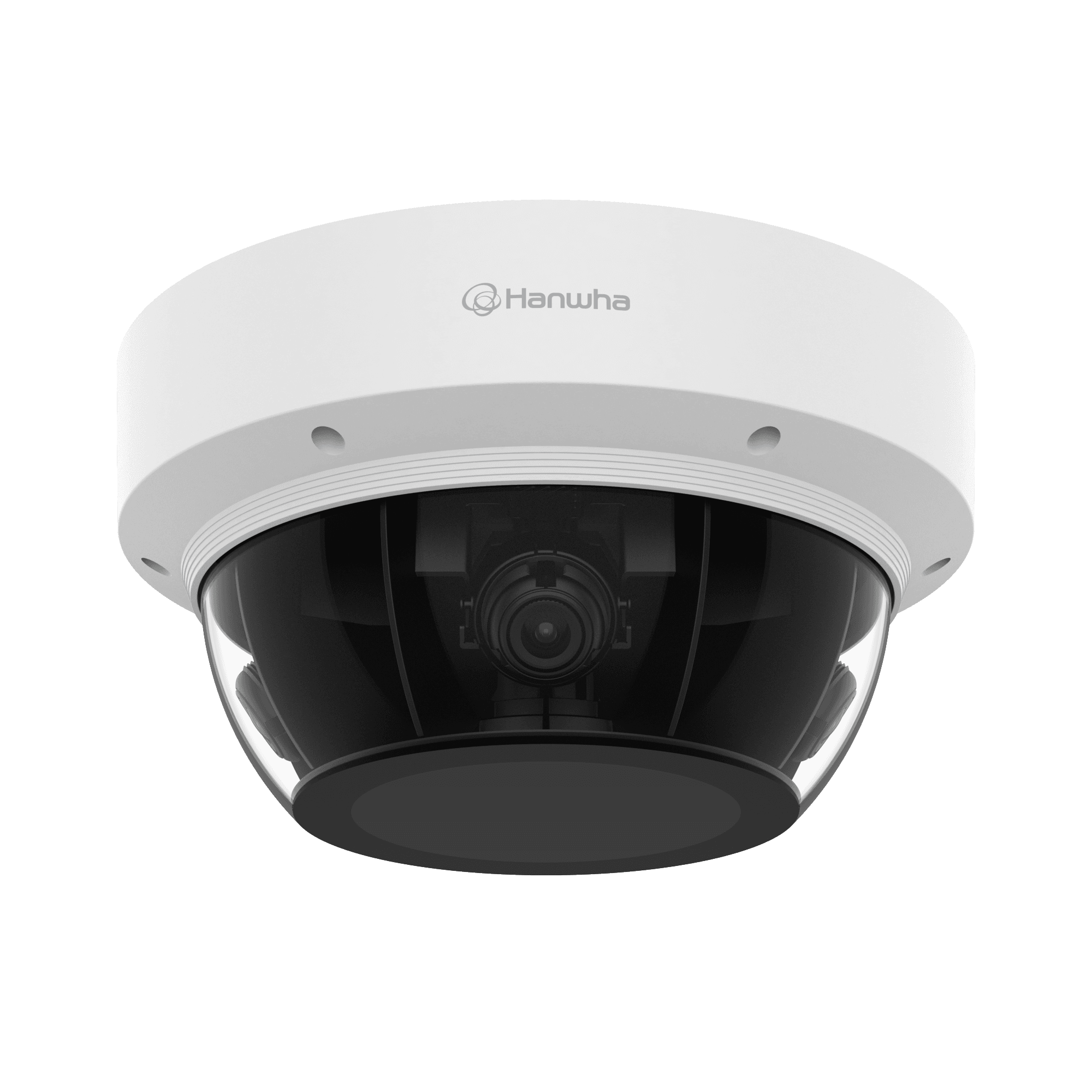

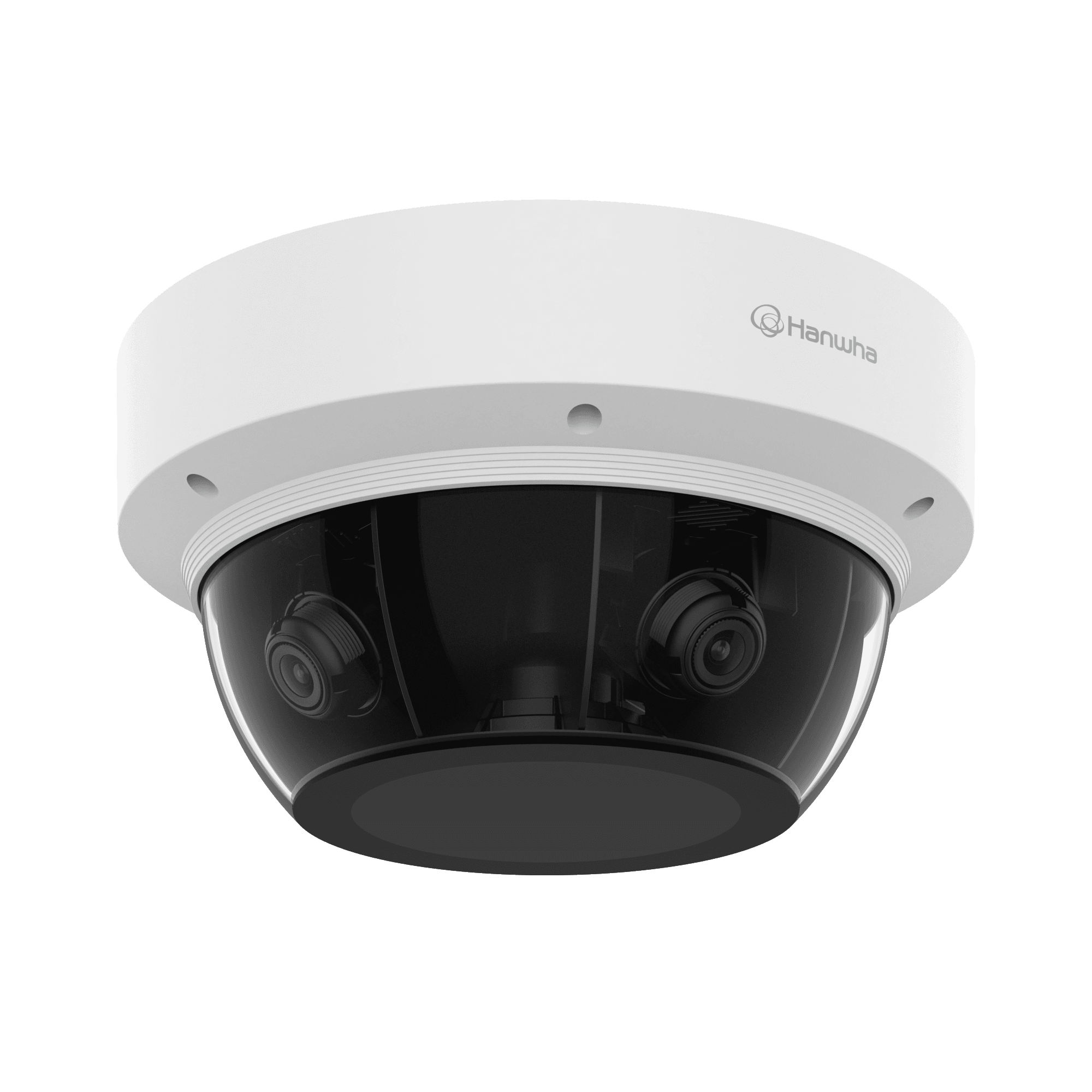

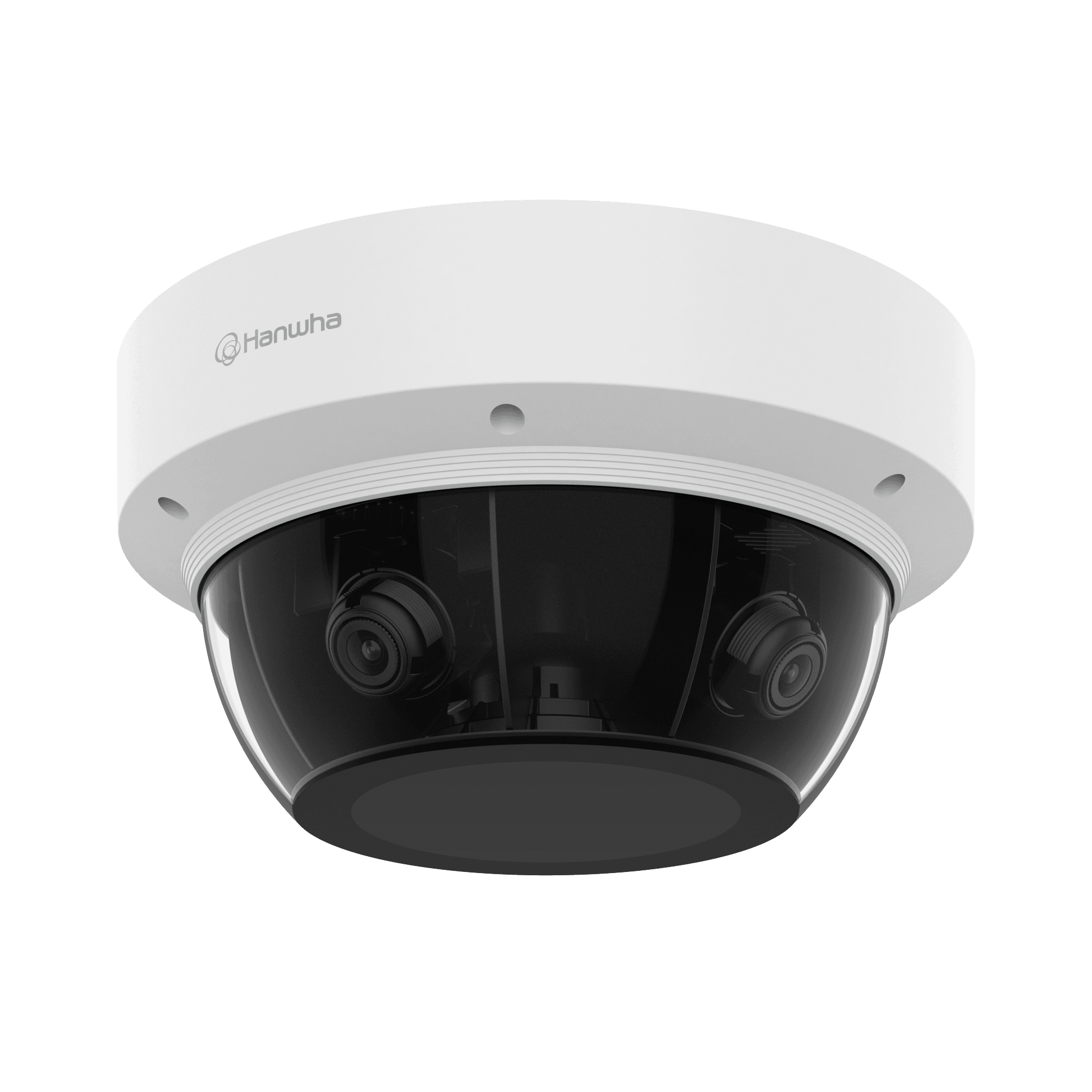

PNM-9002VQ
2MP/5MP x 4CH Multi-directional CameraKey Features
• Exchangeable 4ea x 2MP / 5MP lens modules
• 8MP to 20MP resolution (depend on the combination of lens modules)
• Max. 60fps@2MP (H.265 / H.264)
• WDR 150dB (2MP), 120dB (5MP)
• 2.4mm, 2.8mm, 3.6mm, 6mm fixed lens (2MP module)
• 3.7mm, 4.6mm, 7mm fixed lens (5MP module)
• H.265, H.264, MJPEG codec, Multi streaming support
• Video analytics, WiseStream Ⅱ
• IP66, IK10
• PoE+
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_PNM-9002VQ_240605_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9002VQ_240605_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9002VQ_240605_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9002VQ_240605_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9002VQ_240605_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9002VQ_240605_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9002VQ_240605_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9002VQ_240605_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-9002VQ_240605_ZH.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_PNM-9002VQ_200916.dxf | 2026-08-06 | |
| CAD | CAD_PNM-9002VQ_200916.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_PNM-9002VQ_200817_EN_UL.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9002VQ_230224_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9002VQ_230224_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9002VQ_230224_EN_EMC_CE(+UKCA).pdf | 2026-08-06 | |
| Certification | Certification_PNM-9002VQ_230224_EN_FCC,IC.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9002VQ_230224_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9002VQ_230224_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9002VQ_230311_KO_SDoC_KC.pdf | 2026-08-06 | |
| Certification | Certification_PNM-9002VQ_230315_KO_Report_KC(EMC).pdf | 2026-08-06 | |
| Certification | Certification_PNM-9002VQ_230315_KO_Report_KC(TEL).pdf | 2026-08-06 | |
| Certification | Certification_PNM-9002VQ_230321_KO_KC(EMC).pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | PNM-9002VQ_2.24.00_20260316_R325.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_PNM-9002VQ_201117_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_PNM-9002VQ_20260806_EN_130110.pdf | 2026-08-06 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_PNM-9002VQ_200928_Common_inch.rfa | 2026-08-06 | |
| BIM&Revit | BIM&Revit_PNM-9002VQ_200928_Common_mm.rfa | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_PNM-9002VQ_240605_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9002VQ_240605_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9002VQ_240605_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9002VQ_240605_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9002VQ_240605_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9002VQ_240605_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9002VQ_240605_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9002VQ_240605_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9002VQ_240605_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9002VQ_240605_TR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-9002VQ_240605_ZH.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_PNM-9002VQPNM-7002VD_20200827_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_PNM-9002VQPNM-7002VD_20200827_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_PNM-9002VQPNM-7002VD_20200827_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_PNM-7002VD%2CPNM-9002VQ_250822_EN.txt | 2026-08-06 |
Specifications
Video
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Optional Lens | SLA-2M2400Q, SLA-2M2800Q, SLA-2M3600Q, SLA-2M6000Q, SLA-5M3700Q, SLA-5M4600Q, SLA-5M7000Q |
Operational
| Day & Night | Auto(Electrical) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 150 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Triggers | Analytics, Network disconnect | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
Network
| Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, PIM-SM | |
| Application Programming Interface | ONVIF | S, T |
| Others | SUNAPI(HTTP API) | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 3GB |
| Flash | 768MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 4slot(Total 1TB) |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| EPA(Effective Projected Area) | No | |
| Input Voltage | PoE+(IEEE802.3at, Class4) | |
| Power Consumption | PoE | Max. 25.5W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø253x130mm(9.96x5.12") | |
| Product Weight | 3,000g(6.61lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| Environment | IEC 60529 IP66, IEC 62262 IK10 |
Video
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation |
Lens
| Optional Lens | SLA-2M2400Q, SLA-2M2800Q, SLA-2M3600Q, SLA-2M6000Q, SLA-5M3700Q, SLA-5M4600Q, SLA-5M7000Q |
Operational
| Day & Night | Auto(Electrical) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 150 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Triggers | Analytics, Network disconnect | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) |
Network
| Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, PIM-SM | |
| Application Programming Interface | ONVIF | S, T |
| Others | SUNAPI(HTTP API) | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 3GB |
| Flash | 768MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 4slot(Total 1TB) |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| EPA(Effective Projected Area) | No | |
| Input Voltage | PoE+(IEEE802.3at, Class4) | |
| Power Consumption | PoE | Max. 25.5W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø253x130mm(9.96x5.12") | |
| Product Weight | 3,000g(6.61lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| Environment | IEC 60529 IP66, IEC 62262 IK10 |
