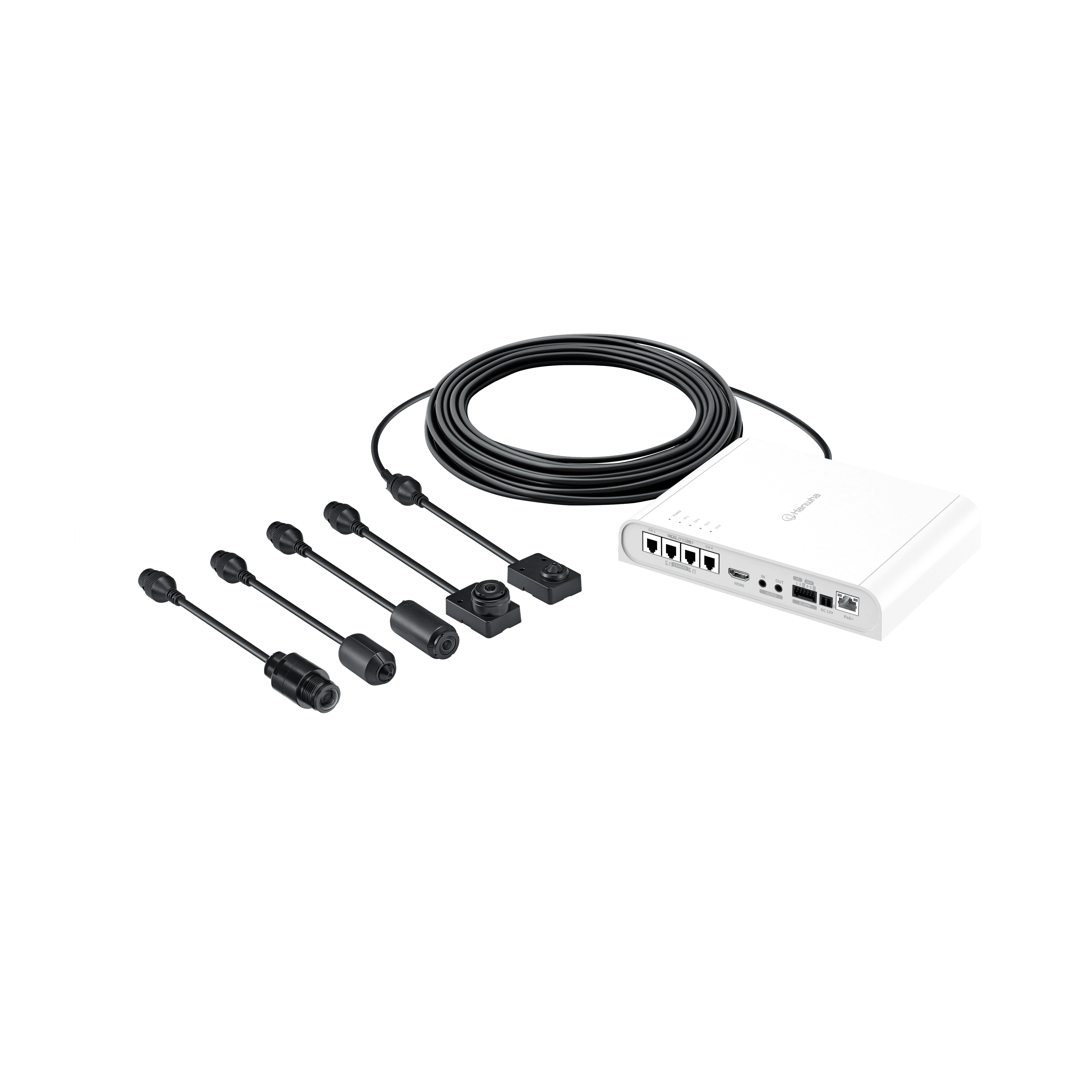

PNM-9000QB
2MP x 4CH Remote Head CameraKey Features
• 2MP Image Resolution
• 4CH Supported
• Dual SD Slots
• PoE+, 12V DC Multiple Power
• Max 30fps@2MP
• Various view mode support: Single, Quad view
• Defocus, Directional, Motion detection
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_PNM-9000QB_250701_EN.pdf | 2026-06-19 | |
| Manuals | Manuals_PNM-9000QB_250702_DE.pdf | 2026-06-19 | |
| Manuals | Manuals_PNM-9000QB_250702_ES.pdf | 2026-06-19 | |
| Manuals | Manuals_PNM-9000QB_250702_FR.pdf | 2026-06-19 | |
| Manuals | Manuals_PNM-9000QB_250702_IT.pdf | 2026-06-19 | |
| Manuals | Manuals_PNM-9000QB_250702_PL.pdf | 2026-06-19 | |
| Manuals | Manuals_PNM-9000QB_250702_PT.pdf | 2026-06-19 | |
| Manuals | Manuals_PNM-9000QB_250702_TR.pdf | 2026-06-19 | |
| Manuals | Manuals_PNM-9000QB_250702_ZH.pdf | 2026-06-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_PNM-9000QB_20201116.dxf | 2026-06-19 | |
| CAD | CAD_PNM-9000QB_20201116.pdf | 2026-06-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_PNM-9000QB_200918_EN_DoC_CE.pdf | 2026-06-19 | |
| Certification | Certification_PNM-9000QB_200918_EN_EMC_CE.pdf | 2026-06-19 | |
| Certification | Certification_PNM-9000QB_200918_EN_RCM.pdf | 2026-06-19 | |
| Certification | Certification_PNM-9000QB_200918_EN_VCCI.pdf | 2026-06-19 | |
| Certification | Certification_PNM-9000QB_200929_EN_UL.pdf | 2026-06-19 | |
| Certification | Certification_PNM-9000QB_201005_KO_Report_KC(EMC).pdf | 2026-06-19 | |
| Certification | Certification_PNM-9000QB_201005_KO_Report_KC(TEL).pdf | 2026-06-19 | |
| Certification | Certification_PNM-9000QB_201006_KO_KC(EMC).pdf | 2026-06-19 | |
| Certification | Certification_PNM-9000QB_201006_KO_KSDoC_KC.pdf | 2026-06-19 | |
| Certification | Certification_PNM-9000QB_200918_EN_FCC-IC.pdf | 2026-06-19 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | PNM-9000QB_2.22.03_20260616_R296.zip | 2026-06-25 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_PNM-9000QB_250605_EN.docx | 2026-06-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_PNM-9000QB_20260619_EN_160631.pdf | 2026-06-19 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_PNM-9000QB_201208_Common_inch.rfa | 2026-06-19 | |
| BIM&Revit | BIM&Revit_PNM-9000QB_201208_Common_mm.rfa | 2026-06-19 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_PNM-9000QB_240614_CS.pdf | 2026-06-19 | |
| Quick Guide | Quick-Guide_PNM-9000QB_240614_DE.pdf | 2026-06-19 | |
| Quick Guide | Quick-Guide_PNM-9000QB_240614_EN.pdf | 2026-06-19 | |
| Quick Guide | Quick-Guide_PNM-9000QB_240614_ES.pdf | 2026-06-19 | |
| Quick Guide | Quick-Guide_PNM-9000QB_240614_FR.pdf | 2026-06-19 | |
| Quick Guide | Quick-Guide_PNM-9000QB_240614_IT.pdf | 2026-06-19 | |
| Quick Guide | Quick-Guide_PNM-9000QB_240614_NL.pdf | 2026-06-19 | |
| Quick Guide | Quick-Guide_PNM-9000QB_240614_PL.pdf | 2026-06-19 | |
| Quick Guide | Quick-Guide_PNM-9000QB_240614_PT.pdf | 2026-06-19 | |
| Quick Guide | Quick-Guide_PNM-9000QB_240614_TR.pdf | 2026-06-19 | |
| Quick Guide | Quick-Guide_PNM-9000QB_240614_ZH.pdf | 2026-06-19 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_PNM-9000QB_201028_EN.pdf | 2026-06-19 | |
| Online Help | Online-Help_PNM-9000QB_201028_ES.pdf | 2026-06-19 | |
| Online Help | Online-Help_PNM-9000QB_201028_FR.pdf | 2026-06-19 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_PNM-9000QBPNM-8082VT_200914_EN.txt | 2026-06-19 |
Specifications
Video
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Video Out | HDMI(Single/Quad view) |
Lens
| Optional Lens | SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA, SLA-T4680DA, SLA-T4680DSA, SLA-T2480WDA, SLA-T2480WA, SLA-T2880BA |
Operational
| Day & Night | Auto(Electrical) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Off, Max gain, Manual | |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | Input 2ea, Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 12 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP | |
| Application Programming Interface | ONVIF | S, T |
| Others | SUNAPI(HTTP API) | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) |
General
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+45°C(+14°F~+113°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE | Max. 22W, typical 16.7W |
| 12VDC | Max. 19W, typical 14W |
Mechanical
| Color | White | |
| Material | Plastic | |
| RAL Code | RAL9003 | |
| Product Dimensions | 200(W)x37(H)x146(D)mm(7.87x1.46x5.75") | |
| Product Weight | 715g(1.58lb) |
Video
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps | |
| Video Out | HDMI(Single/Quad view) |
Lens
| Optional Lens | SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA, SLA-T4680DA, SLA-T4680DSA, SLA-T2480WDA, SLA-T2480WA, SLA-T2880BA |
Operational
| Day & Night | Auto(Electrical) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Off, Max gain, Manual | |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | Input 2ea, Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 12 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP | |
| Application Programming Interface | ONVIF | S, T |
| Others | SUNAPI(HTTP API) | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) |
General
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+45°C(+14°F~+113°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE | Max. 22W, typical 16.7W |
| 12VDC | Max. 19W, typical 14W |
Mechanical
| Color | White | |
| Material | Plastic | |
| RAL Code | RAL9003 | |
| Product Dimensions | 200(W)x37(H)x146(D)mm(7.87x1.46x5.75") | |
| Product Weight | 715g(1.58lb) |
Accessories
