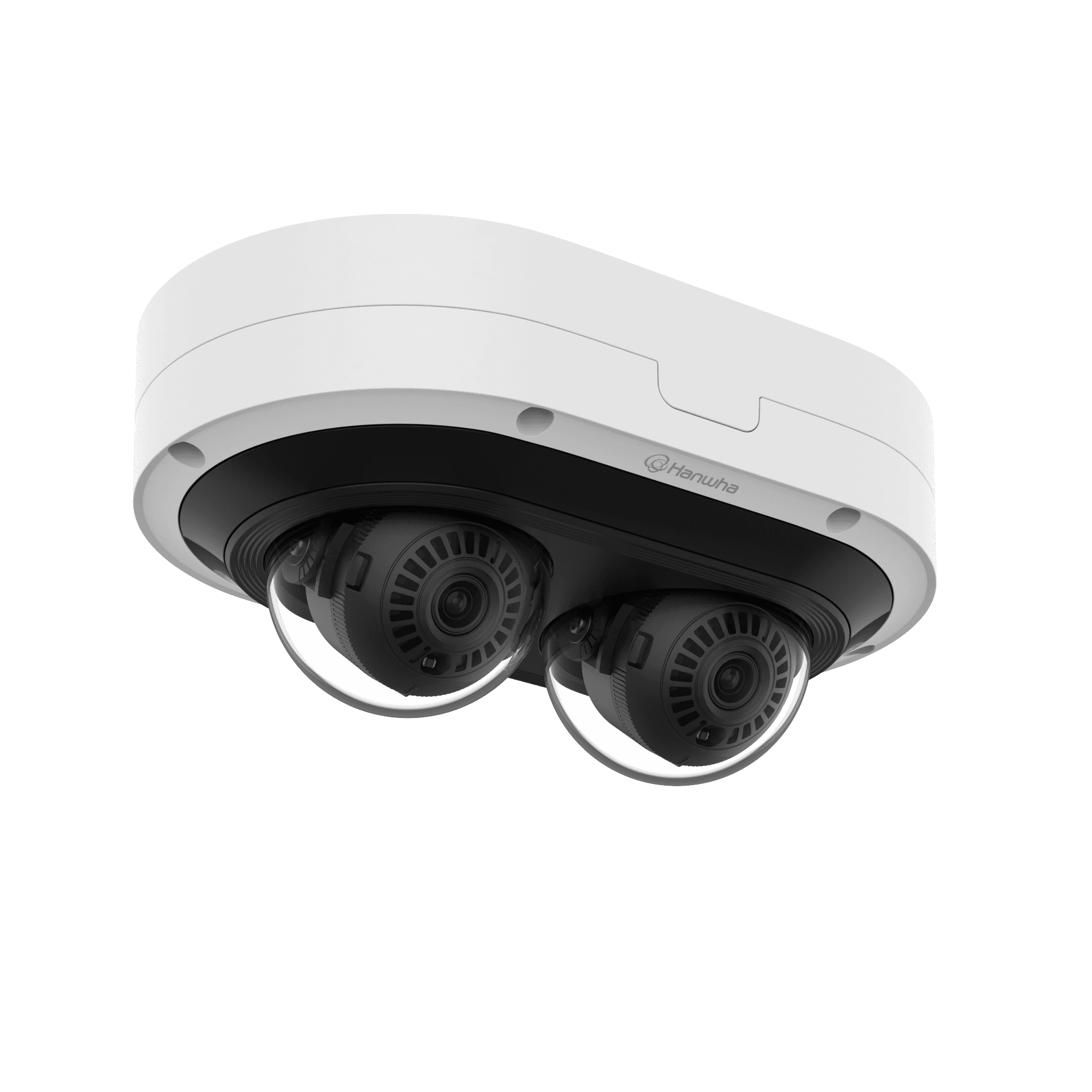

PNM-12082RVD
6MP x 2CH Multi-directional CameraKey Features
• WiseNR, WiseStreamⅡ, extremeWDR (120dB)
• Maximum 3328x1872 resolution
• Maximum 15fps@6M
• Color: 0.16lux (F1.67, 1/30sec, 30IRE), 0 Lux (IR LED on)
• 3.54~6.69mm motorized varifocal, 78° tilt angle
• IR viewable length: IR 25m (82ft) based on scene
• TPM 2.0 (FIPS 140-2 certified)
• IP66, IP67, IK10, NEMA4X
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_PNM-7082RVD,PNM-12082RVD_240708_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-7082RVD,PNM-12082RVD_240708_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-7082RVD,PNM-12082RVD_240708_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-7082RVD,PNM-12082RVD_240708_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-7082RVD,PNM-12082RVD_240708_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-7082RVD,PNM-12082RVD_240708_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-7082RVD,PNM-12082RVD_240708_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-7082RVD,PNM-12082RVD_240708_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_PNM-7082RVD,PNM-12082RVD_240708_ZH.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_PNM-C12083RVDPNM-C7083RVD_220317_Common.dwg | 2026-08-06 | |
| CAD | CAD_PNM-C12083RVDPNM-C7083RVD_220317_Common.pdf | 2026-08-06 |
Certification
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | PNM-12082RVD_2.22.04_20241230_R177.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_PNM-12082RVD_220609_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_PNM-12082RVD_20260806_EN_175136.pdf | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_PNM-7082RVDPNM-12082RVD_240708_CS.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-7082RVDPNM-12082RVD_240708_DE.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-7082RVDPNM-12082RVD_240708_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-7082RVDPNM-12082RVD_240708_ES.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-7082RVDPNM-12082RVD_240708_FR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-7082RVDPNM-12082RVD_240708_IT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-7082RVDPNM-12082RVD_240708_NL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-7082RVDPNM-12082RVD_240708_PL.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-7082RVDPNM-12082RVD_240708_PT.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-7082RVDPNM-12082RVD_240708_TR.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_PNM-7082RVDPNM-12082RVD_240708_ZH.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_PNM-12082RVDPNM-7082RVD_20220510_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_PNM-12082RVDPNM-7082RVD_20220510_ES.pdf | 2026-08-06 | |
| Online Help | Online-Help_PNM-12082RVDPNM-7082RVD_20220510_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_PNM-12082RVDPNM-7082RVD_220412_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 3328x1872, 3072x1728, 2688x1520, 2592x1944, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 15fps/15fps(60Hz/50Hz) |
| MJPEG | 15fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.16 |
| BW(1/30sec, 30IRE) | 0.016 | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 3.54~6.69 | |
| Zoom Ratio | Optical | 1.9x |
| Max Aperture Ratio (F number) | Wide | 1.67 |
| Tele | 2.64 | |
| Angular Field of View | Horizontal | 96°~47° |
| Vertical | 51°~26° | |
| Diagonal | 113°~54° | |
| Min. Object Distance | 1.5m(4.92ft) | |
| Focus Control | Simple focus, Manual | |
| Lens Type | Fixed iris |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~355° |
| Tilt | 0°~78° | |
| Rotate | 0°~180° | |
| Sequence | Preset(255ea) |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNR, SSNRⅤ | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Off, Max gain, Manual | |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | Others | Support alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP | |
| Audio In | Support via optional I/O box | |
| Audio Out | Support via optional I/O box | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 15m(49ft), 25m(82ft) based on scene |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear) |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast) | |
| Application Programming Interface | ONVIF | S, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256) | |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 |
General
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 1slot |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Others | Start up should be done at above -35°C, Humidity control with AIR vent | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4) | |
| Power Consumption | PoE | Max. 18.3W, typical 13.5W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | 215(W)x135(D)x93.2(H)mm(8.46x5.31x3.67") | |
| Product Weight | 1,330g(2.93lb) | |
| Compatible Conduit Hole | 12.7mm(1/2")(M20) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 59.9m(196.62ft) |
| Tele | 153.1m(502.22ft) | |
| Observe (63PPM/ 19PPF) | Wide | 24.0m(78.65ft) |
| Tele | 61.2m(200.89ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 12.0m(39.32ft) |
| Tele | 30.6m(100.44ft) | |
| Identify (250PPM/ 76PPF) | Wide | 6.0m(19.66ft) |
| Tele | 15.3m(50.22ft) |
