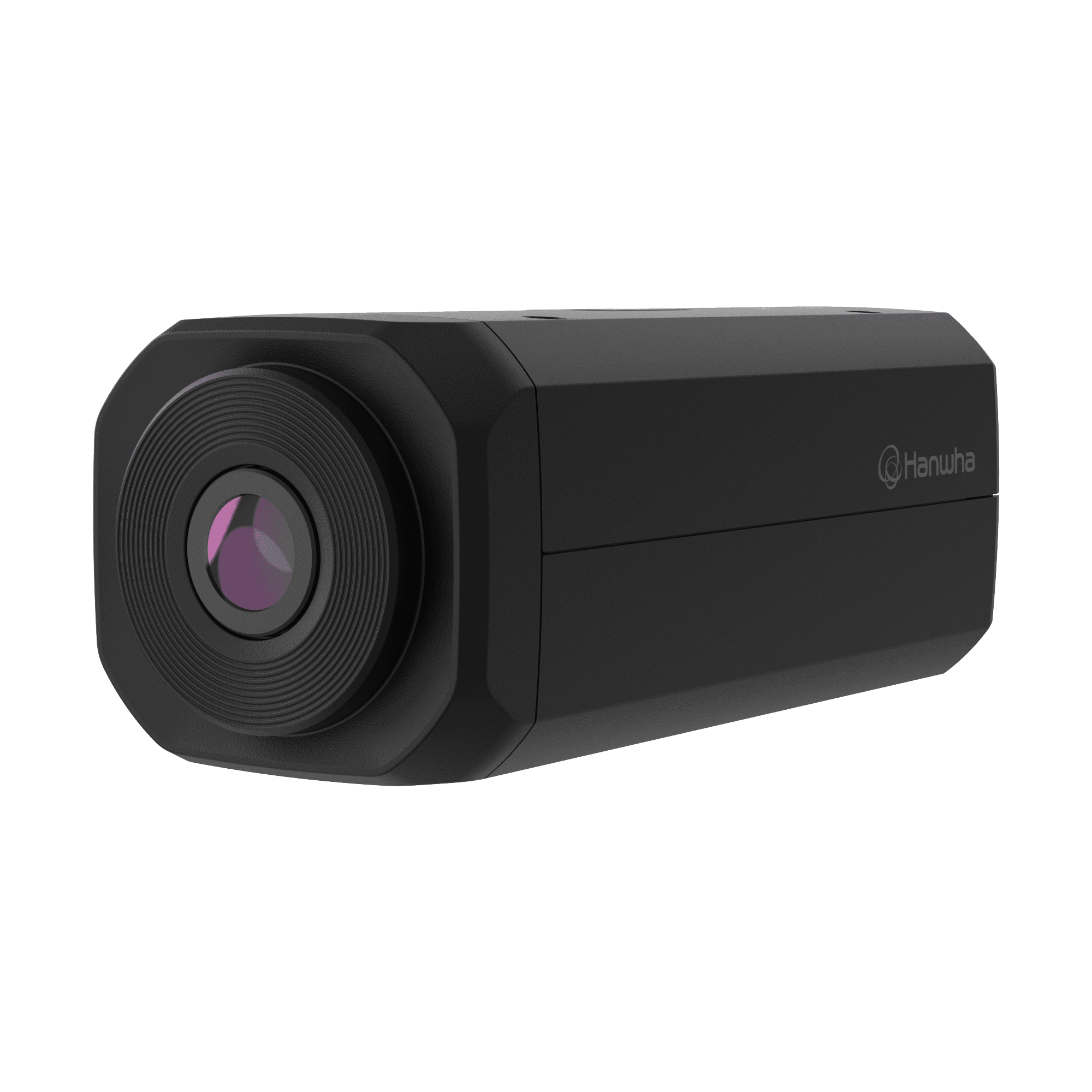

PNB-A9082
8MP AI Lens integrated Box CameraKey Features
- 8MP Image Resolution
- 5.9~13.3mm Focal Length
- Integrated Lens Box Camera
- WisePower Monitoring
- Dynamic Privacy Masking
- Similarity Search with BLAZE and Hanwha Vision Plug-in for Genetec/milestone
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_PNB-A9092%2CPNB-A9082%2CPNB-A9092MC%2CPNB-A9082MC_250806_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_PNB-A9092%2CPNB-A9082%2CPNB-A9092MC%2CPNB-A9082MC_250806_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_PNB-A9092%2CPNB-A9082%2CPNB-A9092MC%2CPNB-A9082MC_250806_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_PNB-A9092%2CPNB-A9082%2CPNB-A9092MC%2CPNB-A9082MC_250806_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_PNB-A9092%2CPNB-A9082%2CPNB-A9092MC%2CPNB-A9082MC_250806_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_PNB-A9092%2CPNB-A9082%2CPNB-A9092MC%2CPNB-A9082MC_250806_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_PNB-A9092%2CPNB-A9082%2CPNB-A9092MC%2CPNB-A9082MC_250806_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_PNB-A9092%2CPNB-A9082%2CPNB-A9092MC%2CPNB-A9082MC_250806_ZH-TW.pdf | 2026-08-06 | |
| Manuals | Manuals_PNB-A9092%2CPNB-A9082%2CPNB-A9092MC%2CPNB-A9082MC_250806_ZH.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_PNB-A9092%2CPNB-A9082_250311_Common.dxf | 2026-08-06 | |
| CAD | CAD_PNB-A9092%2CPNB-A9082_250311_Common.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_PNB-A9082_250725_EN_FCC%2CIC.pdf | 2026-08-06 | |
| Certification | Certification_PNB-A9082_250725_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_PNB-A9082_250725_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_PNB-A9082%2CPNB-A9082MC_250725_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_PNB-A9082%2CPNB-A9082MC_250725_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_PNB-A9082%2CPNB-A9082MC_250725_EN_EMC_CE%2CUKCA.pdf | 2026-08-06 | |
| Certification | Certification_PNB-A9082%2CPNB-A9092%2CPNO-A9092R%2CPNO-A9082R%2CPNO-A7082R_250822_EN_ETSI-EN-303-645.pdf | 2026-08-06 | |
| Certification | Certification_PNB-A9092%2CPNB-A9082%2CPNB-A9092MC%2CPNB-A9082MC_250722_EN_60068-2.pdf | 2026-08-06 | |
| Certification | Certification_PNB-A9092%2CPNB-A9082%2CPNB-A9092MC%2CPNB-A9082MC_250724_EN_UL.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_WN9_2_14_04_20260320_hva_prod.zip | 2026-08-06 | |
| Firmware | GenetecSecurityCenterSaaS_v_AB_wn9_26_04_03_20260403.zip | 2026-08-06 | |
| Firmware | PNO-A9082R_26.03.03_20260513_R831.zip | 2026-08-06 | |
| Firmware | WiseAI_v_PNO-A9082R_26_03_01_20260403.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | A%26E%20Document_PNB-A9082_260109_EN.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_PNB-A9082_20260806_EN_185722.pdf | 2026-08-06 |
Quick Guide
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online%20Help_PND-A9082RV%2CPNO-A9082R%2CPNO-A9092R%2CPNB-A9082%2CPNB-A9092_20251218_EN.pdf | 2026-08-06 | |
| Online Help | Online%20Help_PND-A9082RV%2CPNO-A9082R%2CPNO-A9092R%2CPNB-A9082%2CPNB-A9092_20251218_ES.pdf | 2026-08-06 | |
| Online Help | Online%20Help_PND-A9082RV%2CPNO-A9082R%2CPNO-A9092R%2CPNB-A9082%2CPNB-A9092_20251218_FR.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_PNO-A9082R%2CPNV-A9082RZ%2CPNO-A9092R%2CPND-A9082RV%2CPNB-A9092%2CPNB-A9082_260326_EN.txt | 2026-08-06 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_PNO-A9082R%2CPNV-A9082RZ%2CPNO-A9092R%2CPND-A9082RV%2CPNB-A9092%2CPNB-A9082_260326_EN_cyclonedx.json | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/1.2" |
| Type | CMOS | |
| Resolution | 3840x2160, 3328x1872, 3072x1728, 2688x1512, 2592x1944, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@8MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.015 |
| BW(1/30sec, 30IRE) | 0.0015 | |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
Lens
| Focal Length (mm) | 5.9~13.3 | |
| Zoom Ratio | Optical | 2.25 |
| Max Aperture Ratio (F number) | Wide | 1.5 |
| Tele | 2.9 | |
| Angular Field of View | Horizontal | 109°~49° |
| Vertical | 59°~27° | |
| Diagonal | 128°~56° | |
| Min. Object Distance | 0.8m(2.62ft) | |
| Focus Control | Simple focus | |
| Lens Type | P iris(IR corrected) |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 8point Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow | |
| Dynamic Privacy Masking: Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow | |
| Gain Control | Off, Max gain, Manual | |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support(Fill/stretch mode) | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 2~1/30,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Others | 12VDC output | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in), Built-in mic | |
| Audio Out | Line out |
Analytics
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | Upper/Lower clothes color, Gender, Bag |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Face | Age, Gender, Face mask, Glasses | |
| Similarity Search | Support | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Normal | Defocus detection, Tampering, Audio detection, Shock detection, Virtual area(Appear/Disappear) | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps) | |
| Smart Codec | WiseStream(Based on AI engine) | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles, 3 virtual channel support | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control, MAC-based access control, Auto logout | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element | |
| Supply Chain Security | SBOM | |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
General
| SoC | Type | Wisenet 9 |
| Dual NPU | Support | |
| Memory | RAM | 4GB |
| Flash | 8GB eMMC | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1TB x 2slot(Total 2TB) |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| EPA(Effective Projected Area) | 0.0153㎡ | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE | Max. 13.6W, typical 12.7W |
| 12VDC | Max. 11.5W, typical 10.9W | |
| WisePower | Power monitoring | |
| Power Redundance Failover | Support |
Mechanical
| Color | Black | |
| Material | Aluminum | |
| RAL Code | RAL9005 | |
| Product Dimensions | 82(W)x76(H)x190(D)mm(3.23x2.99x7.48") | |
| Product Weight | 900g(1.98lb) |
Certifications & Standards
| EMC | EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 54.8m(179.73ft) |
| Tele | 168.5m(552.89ft) | |
| Observe (63PPM/ 19PPF) | Wide | 21.9m(71.89ft) |
| Tele | 67.4m(221.16ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 11.0m(35.95ft) |
| Tele | 33.7m(110.58ft) | |
| Identify (250PPM/ 76PPF) | Wide | 5.5m(17.97ft) |
| Tele | 16.9m(55.29ft) |
