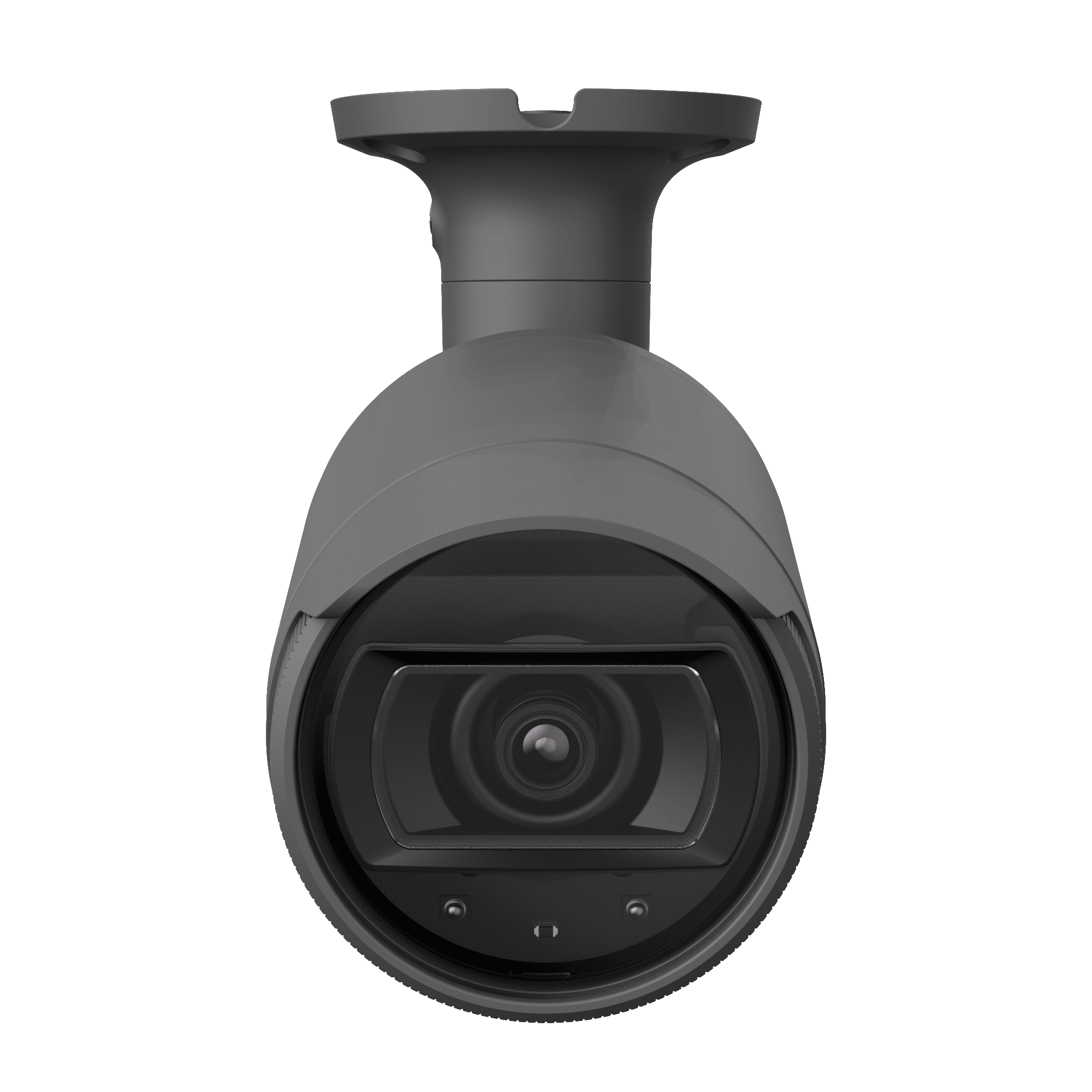

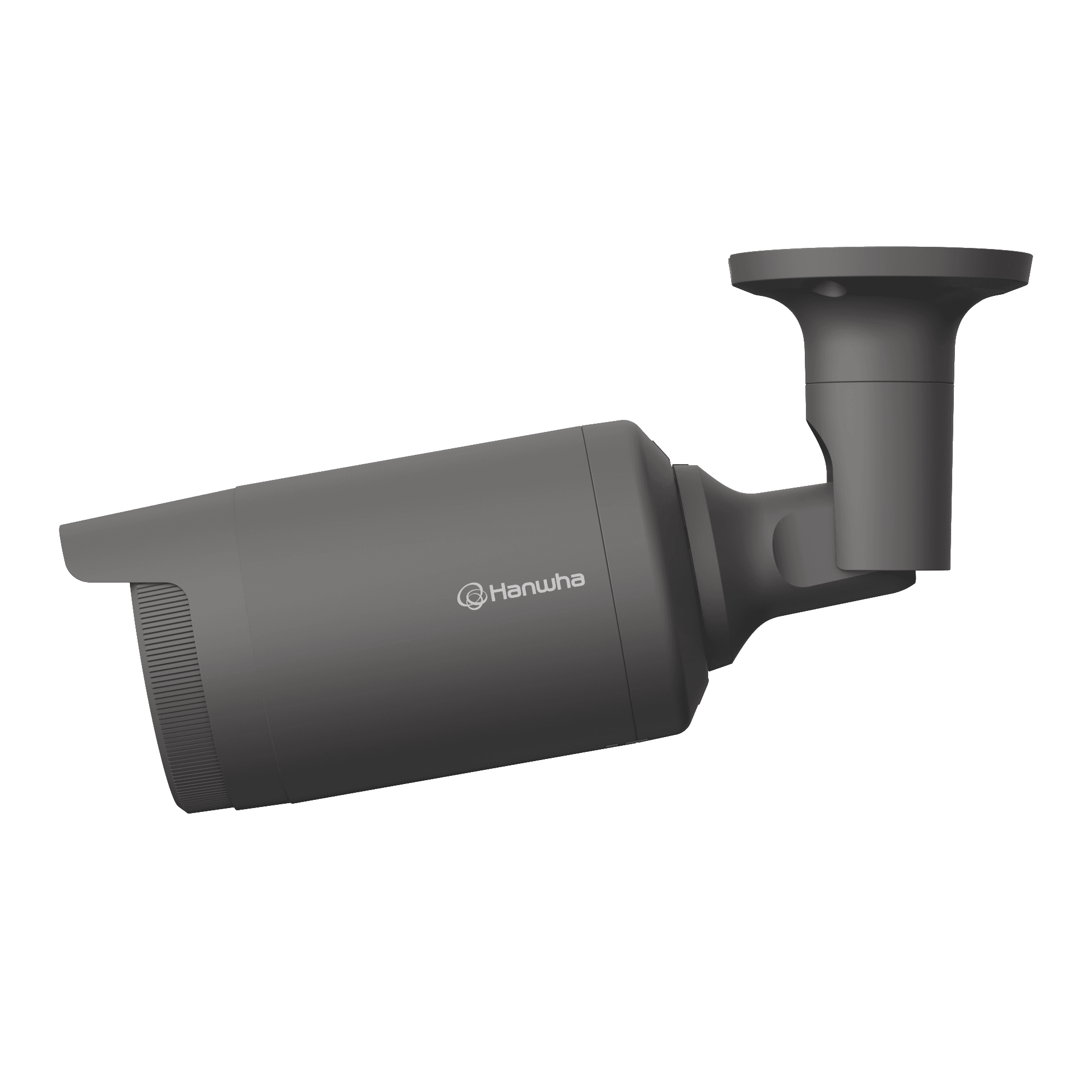

LNO-6022R
2MP IR Bullet CameraKey Features
• Maximum 2MP resolution
• Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on)
• 4.0mm fixed focal
• Maximum 30fps@2MP all resolutions (H.264)
• H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Tampering, Motion detection
• Micro SD/SDHC memory slot (32GB), PoE
• Hallway view (90°/270°), WiseStreamII support
• IR viewable length 30m(98.43ft)
• IP66 support
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_LNO-6012R,LNO-6022R,LNO-6032R,LNO-6072R_240628_DE.pdf | 2026-08-13 | |
| Manuals | Manuals_LNO-6012R,LNO-6022R,LNO-6032R,LNO-6072R_240628_EN.pdf | 2026-08-13 | |
| Manuals | Manuals_LNO-6012R,LNO-6022R,LNO-6032R,LNO-6072R_240628_ES.pdf | 2026-08-13 | |
| Manuals | Manuals_LNO-6012R,LNO-6022R,LNO-6032R,LNO-6072R_240628_FR.pdf | 2026-08-13 | |
| Manuals | Manuals_LNO-6012R,LNO-6022R,LNO-6032R,LNO-6072R_240628_IT.pdf | 2026-08-13 | |
| Manuals | Manuals_LNO-6012R,LNO-6022R,LNO-6032R,LNO-6072R_240628_PL.pdf | 2026-08-13 | |
| Manuals | Manuals_LNO-6012R,LNO-6022R,LNO-6032R,LNO-6072R_240628_PT.pdf | 2026-08-13 | |
| Manuals | Manuals_LNO-6012R,LNO-6022R,LNO-6032R,LNO-6072R_240628_TR.pdf | 2026-08-13 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_LNO-6012RLNO-6022RLNO-6032RLNO-6072R_191022.pdf | 2026-08-13 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_LNO-6022R_191003_EN_UL.pdf | 2026-08-13 | |
| Certification | Certification_LNO-6022R_230224_EN_DoC_CE.pdf | 2026-08-13 | |
| Certification | Certification_LNO-6022R_230224_EN_DoC_UKCA.pdf | 2026-08-13 | |
| Certification | Certification_LNO-6022R_230224_EN_EMC_CE(+UKCA).pdf | 2026-08-13 | |
| Certification | Certification_LNO-6022R_230224_EN_FCC,IC.pdf | 2026-08-13 | |
| Certification | Certification_LNO-6022R_230311_KO_SDoC_KC.pdf | 2026-08-13 | |
| Certification | Certification_LNO-6022R_230315_KO_Report_KC(EMC).pdf | 2026-08-13 | |
| Certification | Certification_LNO-6022R_230315_KO_Report_KC(TEL).pdf | 2026-08-13 | |
| Certification | Certification_LNO-6022R_230321_KO_KC(EMC).pdf | 2026-08-13 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | LNO-6072R_1.41.13_20231109_R165.zip | 2026-08-13 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_LNO-6022R_200101_EN.docx | 2026-08-13 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_LNO-6022R_20260806_EN_145341.pdf | 2026-08-13 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_LNO-6012RLNO-6022RLNO-6032RLNO-6072R_240628_CS.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_LNO-6012RLNO-6022RLNO-6032RLNO-6072R_240628_DE.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_LNO-6012RLNO-6022RLNO-6032RLNO-6072R_240628_ES.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_LNO-6012RLNO-6022RLNO-6032RLNO-6072R_240628_FR.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_LNO-6012RLNO-6022RLNO-6032RLNO-6072R_240628_IT.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_LNO-6012RLNO-6022RLNO-6032RLNO-6072R_240628_NL.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_LNO-6012RLNO-6022RLNO-6032RLNO-6072R_240628_PL.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_LNO-6012RLNO-6022RLNO-6032RLNO-6072R_240628_PT.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_LNO-6012RLNO-6022RLNO-6032RLNO-6072R_240628_TR.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_LNO-6012RLNO-6022RLNO-6032RLNO-6072R_240628_EN.pdf | 2026-08-13 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_LND-6012RLND-6022RLND-6072RLNV-6012RLNV-6022RLNV-6072RLNO-6012RLNO-6022RLNO-6072R_20220119_ES.pdf | 2026-08-13 | |
| Online Help | Online-Help_LND-6012RLND-6022RLND-6072RLNV-6012RLNV-6022RLNV-6072RLNO-6012RLNO-6022RLNO-6072R_20220119_FR.pdf | 2026-08-13 | |
| Online Help | Online-Help_LND-6012RLND-6022RLND-6072RLNV-6012RLNV-6022RLNV-6072RLNO-6012RLNO-6022RLNO-6072R_20220119_EN.pdf | 2026-08-13 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz)(WDR off) / 15fps/12fps(60Hz/50Hz)(WDR on) |
| MJPEG | 10fps(@2MP Max. 2fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.03 |
| BW(1/30sec, 30IRE) | 0.003 |
Lens
| Focal Length (mm) | 4.0 | |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 85° |
| Vertical | 46° | |
| Diagonal | 99° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Fixed |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~100° | |
| Rotate | 0°~360° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNR | |
| Motion Detection | Quantity | 4ea |
| Shape | Rectangler zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Triggers | Analytics | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 30m(98.43ft) |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Motion detection, Tampering |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast) | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API) | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 512MB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 32GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Others | Start up should be done at above -20°C | |
| Storage Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max 6.4W, Typical 5.0W |
Mechanical
| Color | Dark grey | |
| Material | Plastic | |
| Product Dimensions | ø78.0x262.0mm(ø3.07x10.31”) | |
| Product Weight | 390g(0.86lb) |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 42.4m(139.17ft) |
| Observe (63PPM/ 19PPF) | Wide | 17.0m(55.67ft) |
| Recognize (125PPM/ 38PPF) | Wide | 8.5m(27.83ft) |
| Identify (250PPM/ 76PPF) | Wide | 4.2m(13.92ft) |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz)(WDR off) / 15fps/12fps(60Hz/50Hz)(WDR on) |
| MJPEG | 10fps(@2MP Max. 2fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.03 |
| BW(1/30sec, 30IRE) | 0.003 |
Lens
| Focal Length (mm) | 4.0 | |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 85° |
| Vertical | 46° | |
| Diagonal | 99° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Fixed |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~100° | |
| Rotate | 0°~360° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNR | |
| Motion Detection | Quantity | 4ea |
| Shape | Rectangler zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Triggers | Analytics | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 30m(98.43ft) |
| IR Wavelength | 850nm |
Analytics
| Analytics Events | Normal | Motion detection, Tampering |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast) | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API) | |
| Direct Cloud Connection | Optional (needs gateway) |
Security
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
General
| Memory | RAM | 512MB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 32GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Others | Start up should be done at above -20°C | |
| Storage Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max 6.4W, Typical 5.0W |
Mechanical
| Color | Dark grey | |
| Material | Plastic | |
| Product Dimensions | ø78.0x262.0mm(ø3.07x10.31”) | |
| Product Weight | 390g(0.86lb) |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66 |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 42.4m(139.17ft) |
| Observe (63PPM/ 19PPF) | Wide | 17.0m(55.67ft) |
| Recognize (125PPM/ 38PPF) | Wide | 8.5m(27.83ft) |
| Identify (250PPM/ 76PPF) | Wide | 4.2m(13.92ft) |
