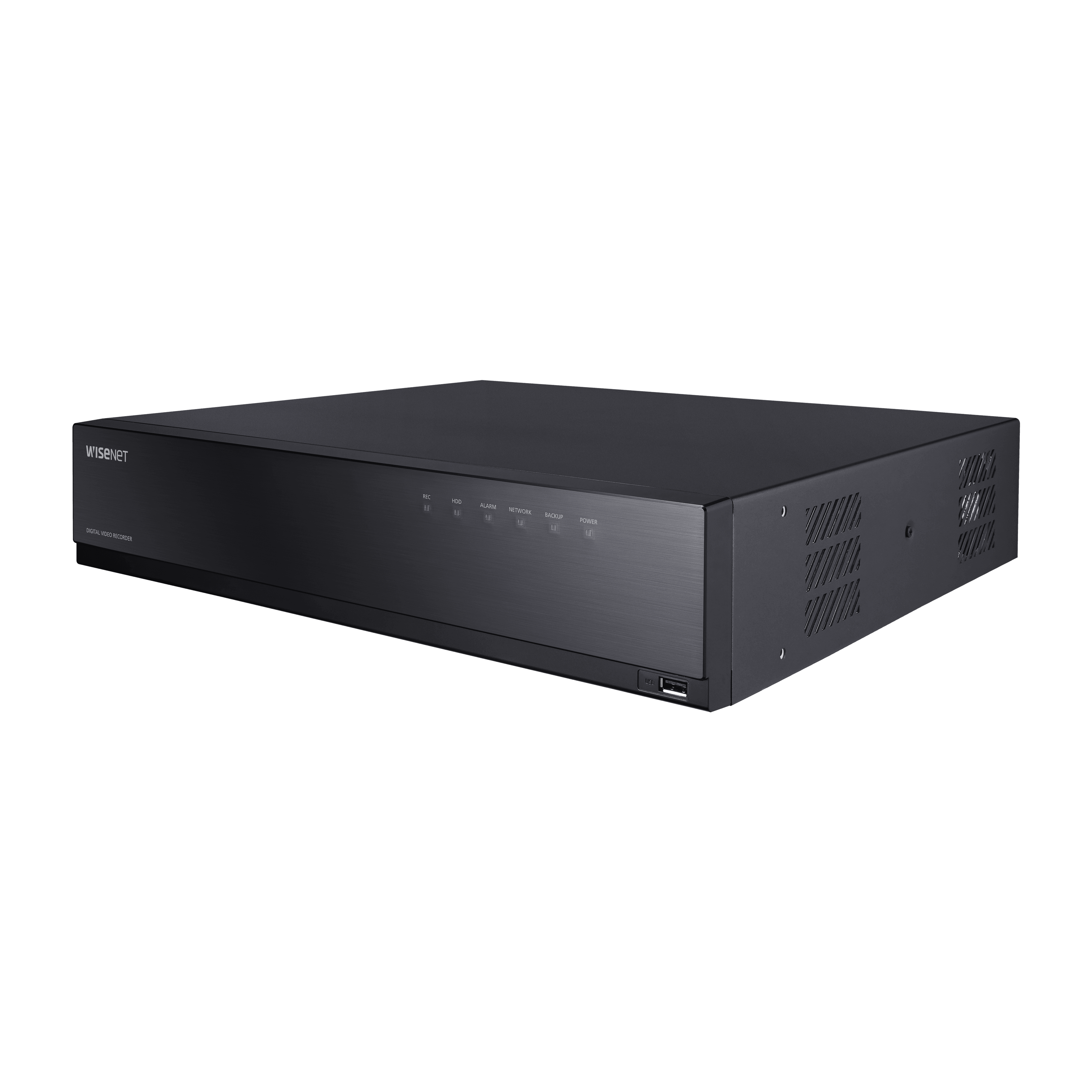

HRX-835A
8CH Pentabrid DVRKey Features
• 5-in-1 8CH Pentabrid DVR
• AHD/HDTVI/HDCVI/CVBS/IP inputs
• Total 10CH(Analog Maximum 8CH and Network Maximum 10CH), up to 8MP
• H.265, H.264, MJPEG codec
• 8fps@8MP, 12fps@5MP, 15/12fps@4MP, 30/25fps@2MP recording
• Coaxial control
• Up to 4 SATA HDDs(6TB/HDD)
• HDMI/VGA Dual monitor (Expand mode)
• P2P service (QR code connect)
For supported HDD information, please visit the HDD compatibility list.
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_HRX-1635,HRX-1634,HRX-835A_230405_DE.pdf | 2026-08-13 | |
| Manuals | Manuals_HRX-1635,HRX-1634,HRX-835A_230405_EN.pdf | 2026-08-13 | |
| Manuals | Manuals_HRX-1635,HRX-1634,HRX-835A_230405_ES.pdf | 2026-08-13 | |
| Manuals | Manuals_HRX-1635,HRX-1634,HRX-835A_230405_FR.pdf | 2026-08-13 | |
| Manuals | Manuals_HRX-1635,HRX-1634,HRX-835A_230405_IT.pdf | 2026-08-13 | |
| Manuals | Manuals_HRX-1635,HRX-1634,HRX-835A_230405_NL.pdf | 2026-08-13 | |
| Manuals | Manuals_HRX-1635,HRX-1634,HRX-835A_230405_PL.pdf | 2026-08-13 | |
| Manuals | Manuals_HRX-1635,HRX-1634,HRX-835A_230405_PT.pdf | 2026-08-13 | |
| Manuals | Manuals_HRX-1635,HRX-1634,HRX-835A_230405_TR.pdf | 2026-08-13 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_HRX-835A_220421_Common.dxf | 2026-08-13 | |
| CAD | CAD_HRX-835A_220421_Common.pdf | 2026-08-13 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_HRX-835A_220520_EN_UL.pdf | 2026-08-13 | |
| Certification | Certification_HRX-835A_230224_EN_DoC_CE.pdf | 2026-08-13 | |
| Certification | Certification_HRX-835A_230224_EN_DoC_UKCA.pdf | 2026-08-13 | |
| Certification | Certification_HRX-835A_230224_EN_EMC_CE(+UkCA).pdf | 2026-08-13 | |
| Certification | Certification_HRX-835A_230224_EN_RCM.pdf | 2026-08-13 | |
| Certification | Certification_HRX-835A_230224_EN_VCCI.pdf | 2026-08-13 | |
| Certification | Certification_HRX-835A_230311_KO_SDoC_KC.pdf | 2026-08-13 | |
| Certification | Certification_HRX-835A_230315_KO_Report_KC(EMC).pdf | 2026-08-13 | |
| Certification | Certification_HRX-835A_230321_KO_KC(EMC).pdf | 2026-08-13 | |
| Certification | Certification_HRX-835A_230328_EN_CB.pdf | 2026-08-13 | |
| Certification | Certification_HRX-835A_230224_EN_FCC-IC.pdf | 2026-08-13 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | HRX-1635_5.31.82_241114114945.zip | 2026-08-13 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_HRX-835A_220609_EN.docx | 2026-08-13 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_HRX-835A_20260813_EN_173059.pdf | 2026-08-13 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_HRX-1635HRX-1634HRX-835A_230405_CS.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_HRX-1635HRX-1634HRX-835A_230405_DE.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_HRX-1635HRX-1634HRX-835A_230405_EN.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_HRX-1635HRX-1634HRX-835A_230405_ES.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_HRX-1635HRX-1634HRX-835A_230405_FR.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_HRX-1635HRX-1634HRX-835A_230405_IT.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_HRX-1635HRX-1634HRX-835A_230405_NL.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_HRX-1635HRX-1634HRX-835A_230405_PL.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_HRX-1635HRX-1634HRX-835A_230405_PT.pdf | 2026-08-13 | |
| Quick Guide | Quick-Guide_HRX-1635HRX-1634HRX-835A_230405_TR.pdf | 2026-08-13 |
Product Specifications
| Category | File Name | Last Update | |
|---|---|---|---|
| Product Specifications | Product-Specifications_HRX-1635HRX-1634HRX-835A_230405_DE.pdf | 2026-08-13 | |
| Product Specifications | Product-Specifications_HRX-1635HRX-1634HRX-835A_230405_EN.pdf | 2026-08-13 | |
| Product Specifications | Product-Specifications_HRX-1635HRX-1634HRX-835A_230405_ES.pdf | 2026-08-13 | |
| Product Specifications | Product-Specifications_HRX-1635HRX-1634HRX-835A_230405_FR.pdf | 2026-08-13 | |
| Product Specifications | Product-Specifications_HRX-1635HRX-1634HRX-835A_230405_IT.pdf | 2026-08-13 | |
| Product Specifications | Product-Specifications_HRX-1635HRX-1634HRX-835A_230405_NL.pdf | 2026-08-13 | |
| Product Specifications | Product-Specifications_HRX-1635HRX-1634HRX-835A_230405_PL.pdf | 2026-08-13 | |
| Product Specifications | Product-Specifications_HRX-1635HRX-1634HRX-835A_230405_PT.pdf | 2026-08-13 | |
| Product Specifications | Product-Specifications_HRX-1635HRX-1634HRX-835A_230405_TR.pdf | 2026-08-13 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_HRX-1635HRX-1634HRX-835A_220322_EN.txt | 2026-08-13 |
Specifications
Display
| Analog camera | Inputs | 8CH(1Vp-p 75ohm, BNC) |
| Signal Type | AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(8MP, 5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL) | |
| Network camera | Inputs | Additional 2CH (Up to 10CH) |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI(Wisenet), ONVIF | |
| Live | Local Display | 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Resolution | [Analog Camera(NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH [Network Camera] - 2MP(up to 30fps/CH) |
Performance
| Record | Compression | H.265, H.264, MJPEG |
| Record Rate(Analog) | (Main Stream, NT/PAL) 8M 8/8fps, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, Under 960H 30/25fps/CH (Sub Stream) 720p/CH or Higher : 640x368 Full fps, SD : up to SD Full fps, * The maximum recording frame rate depends on the frame rate of the input camera. | |
| Recording Bandwidth | Max. 80Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss Analog Camera : Video Loss, Motion Detection, Tampering Network Camera : Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Play | Playback Bandwidth | Max. 32Mbps (10CH simultaneously) |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | 10CH(Local Monitor),10Ch (CMS), 4Ch (Wisenet Mobile), 1Ch(Web) | |
| Fisheye Dewarping | CMS (only N/W Camera) | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 4ea(Max 24TB) | |
| Backup | File backup | Set : Recorder, SEC, AVI Webviewer : AVI |
| Function | Max. 10 CH play, Date-time/title display |
Function
| PTZ | Control | Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live(8ch): Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push | |
| Max, Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ARB | Support |
| Easy configuration | Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code) | |
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI |
Interface
| HDMI | 1 EA | |
| VGA | 1 EA | |
| BNC | 8CH In / 1CH Out(Spot Output) | |
| Audio | Out(1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100/1000BASE-T) | |
| Alarm | In 8EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) | |
| USB | 2EA(Front USB2.0, Rear USB 3.0) | |
| Serial(Protocols) | RS-485/422 (Samsung-T/Pelco-D/Pelco-p) * for PTZ | |
| Power inlet | 1EA AC |
System
| System Control | Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000, SPC-2001) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai |
Environmental
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC, UKCA |
Electrical
| Power Input | 100~240 VAC±10%, 50/60 Hz | |
| Power Consumption | Max. 100W (6TB HDD 4ea) |
Mechanical
| Color / Material | Black / Metal | |
| Dimension | 440.0 x 88 x 384.8 mm (17.32 x 3.46 x 15.15 inch) | |
| Weight | Approx. 6.0Kg (13.2 lb, 4TB HDD 1ea) |
Network
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission speed | Analog Camera) (Main Stream) 8MP 8/8fps, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, 960H/640H 30/25fps (NTSC/PAL per CH) (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : upto CIF full fps/CH, * The maximum recording frame rate depends on the frame rate of the input camera. | |
| Transmission Bandwidth | Max. 64Mbps | |
| Audio | Input/Output | 4 Lline in / 1 Line out |
| Compression | G.711 (N/W Camera G.711, 726) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Vision Root CA) | |
| Viewer Software | SSM, Webviewer, SmartViewer, Wisenet Mobile Viewer, Wisenet Viewer |
