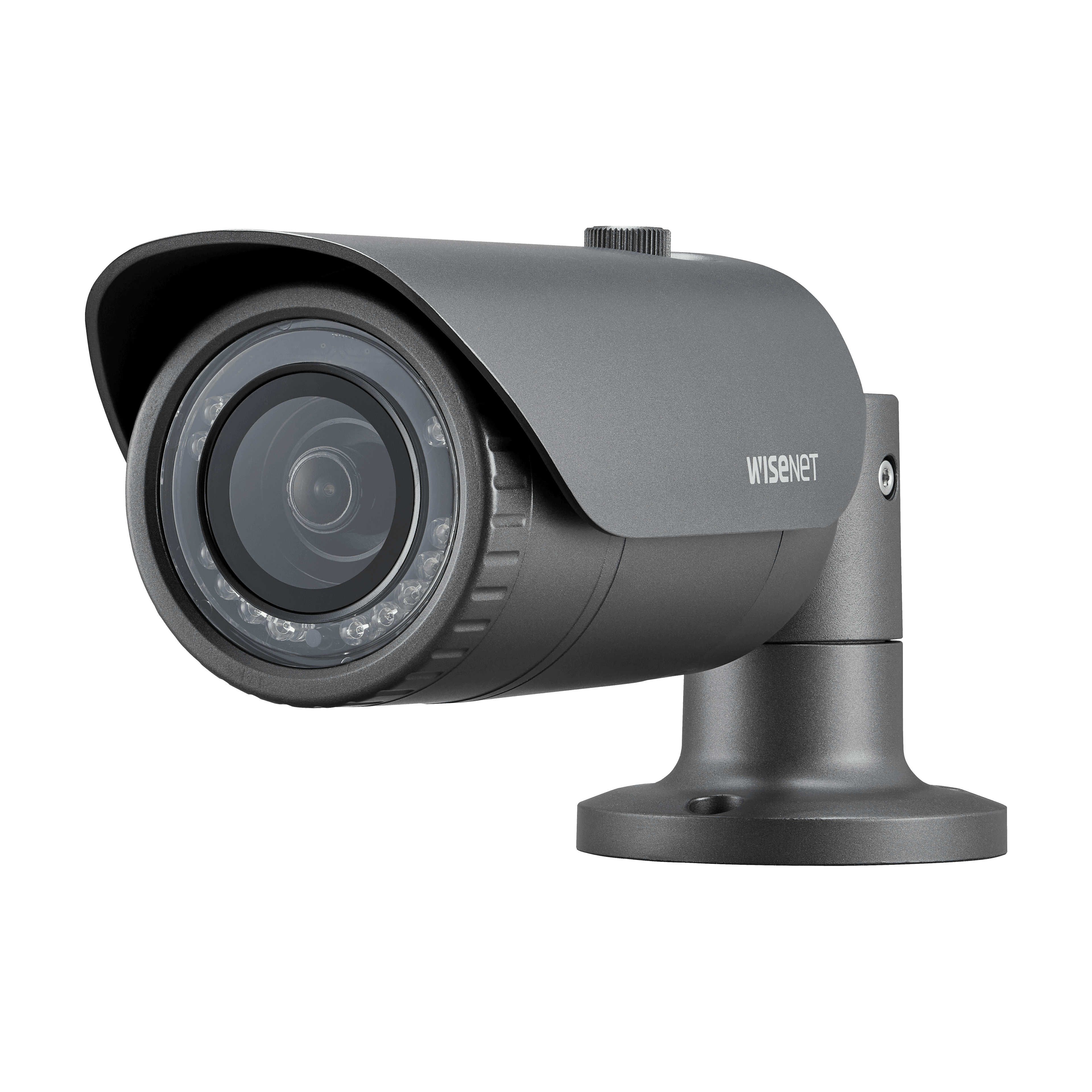

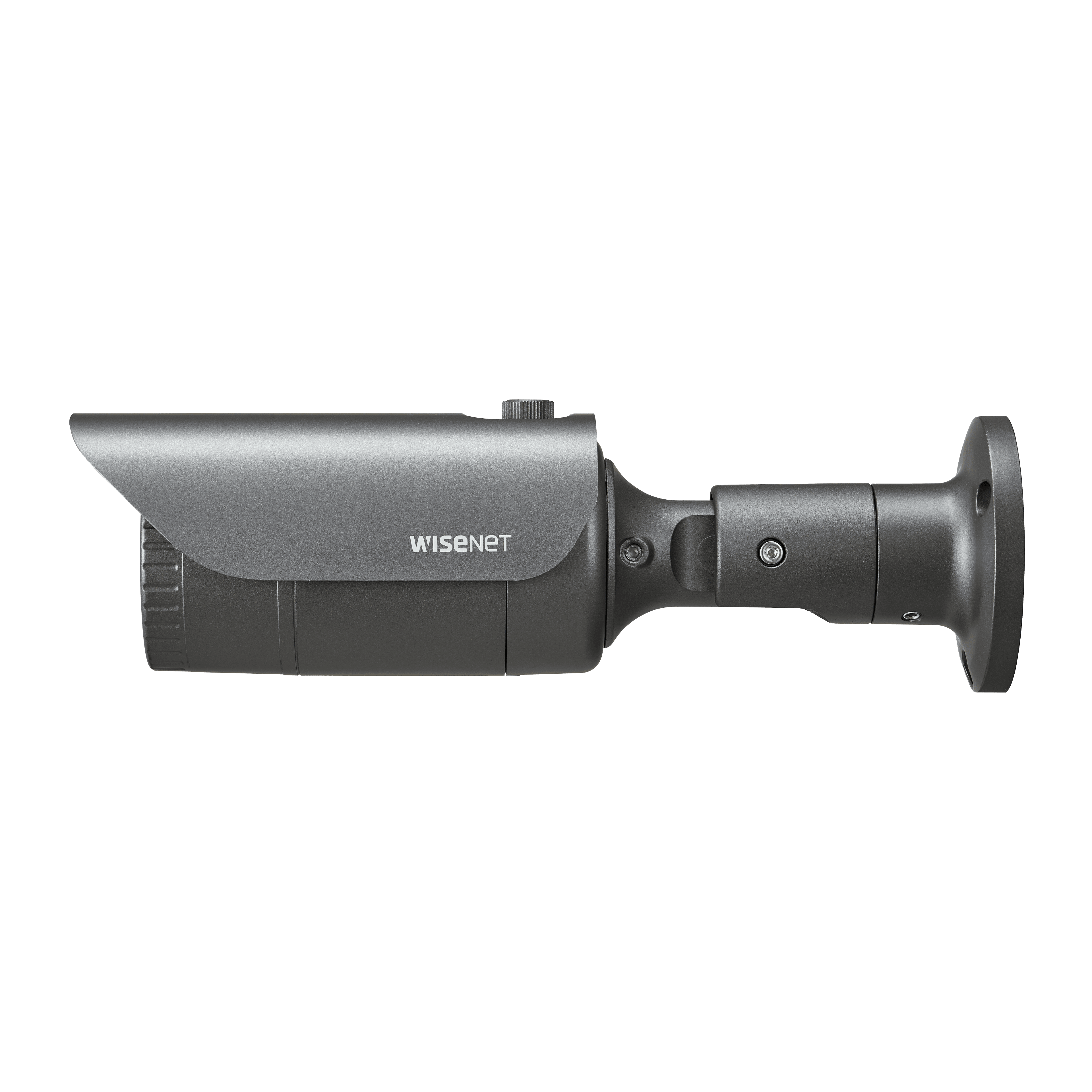

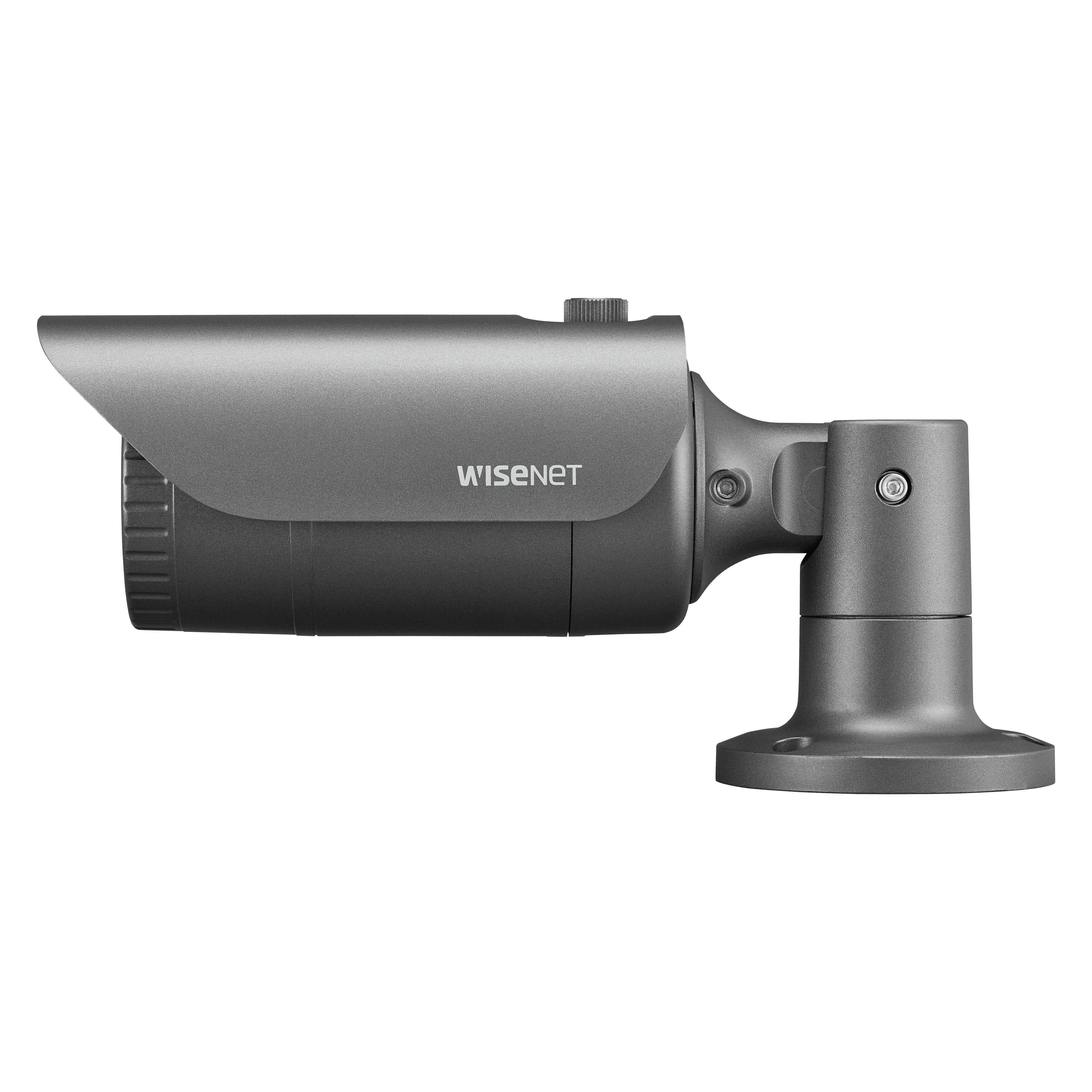

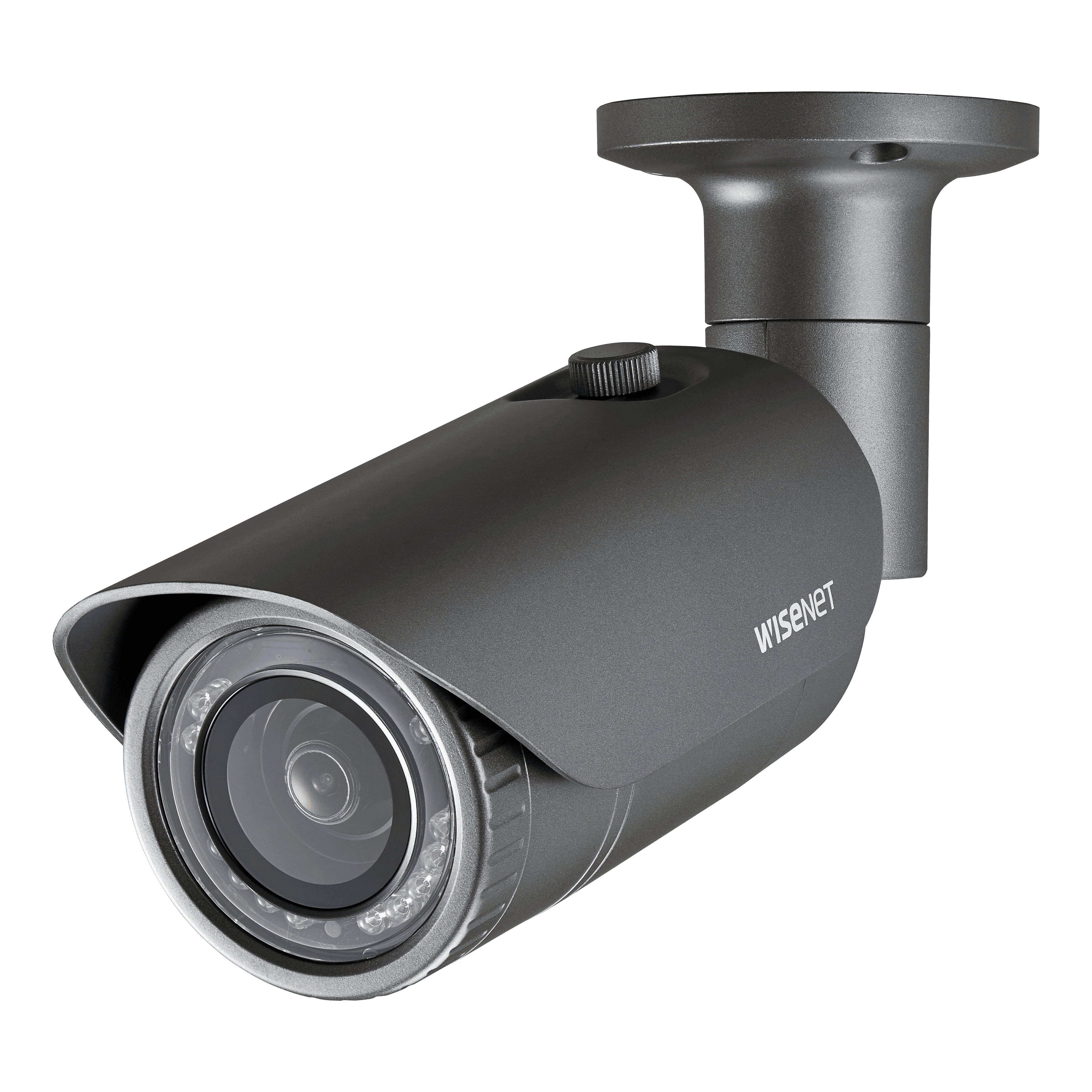

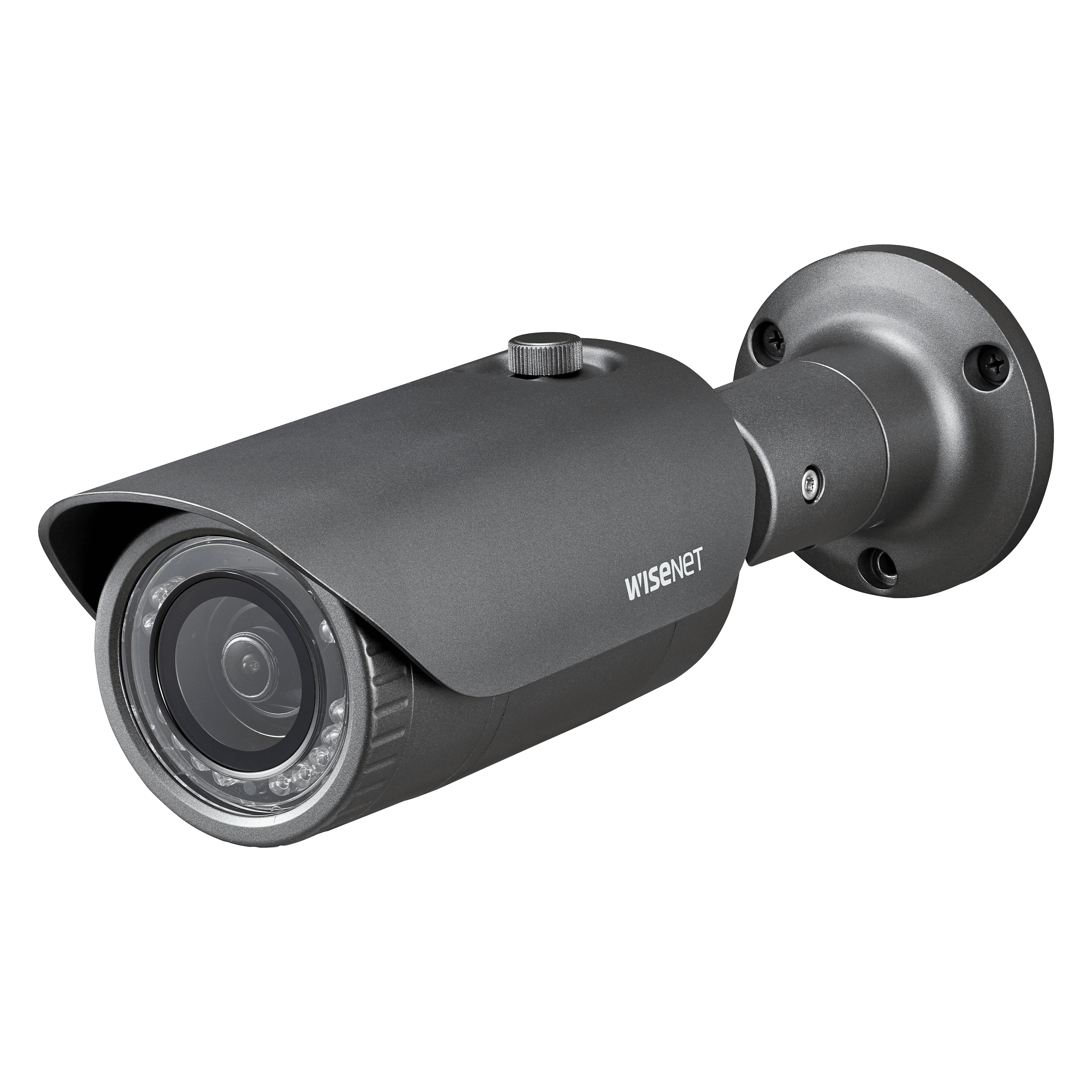

HCO-7020RA
QHD (4MP) Analog IR Bullet CameraKey Features
• QHD (2560 x 1440, 30fps) resolution
• 0.27 Lux@F2.0 (Color),0 Lux (B/W : IR LED on)
• Built-in 4.0mm fixed lens
• Day & Night (ICR), DWDR, Motion detection
• IR Viewable Length 25m
• Transmission distance max.500m
• Easy installation (Plug & play), IP66, IK10
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_HCO-7010RA,HCO-7020RA,HCO-7030RA_230608_EN.pdf | 2026-04-19 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_Wisenet-HD_180202_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_HCO-7010R,HCO-7020R,HCO-7030R_170726.dxf | 2026-04-19 | |
| CAD | CAD_HCO-7010R,HCO-7020R,HCO-7030R_170726.pdf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_HCO-7020R_190515_EN_DoC_CE.pdf | 2026-04-19 | |
| Certification | Certification_HCO-7020R_190515_EN_EMC_CE.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_HCO-7020RA_20250906_EN_053130.pdf | 2026-04-19 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_HCO-7010RAHCO-7020RAHCO-7030RA_230608_Common.pdf | 2026-04-19 |
Specifications
Video
| Imaging Device | Size | 1/3" |
| Type | CMOS | |
| Resolution | 2560x1440 | |
| Max. Framerate(NTSC/PAL) | 30fps/25fps | |
| Min. Illumination | Color(1/30sec, 30IRE) | 0.27 |
| BW(1/30sec, 30IRE) | 0.027 | |
| Video Out | CVBS: 1.0Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation, BNC: AHD | |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
Lens
| Focal Length (mm) | 4.0 | |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 78° |
| Vertical | 41° | |
| Diagonal | 88° | |
| Min. Object Distance | 0.5m(1.64ft) |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, DWDR | |
| Digital Noise Reduction | 2DDNR | |
| Motion Detection | Quantity | 4ea |
| Privacy Masking | Quantity | 2ea |
| Gain Control | Low, Middle, High, Very High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Speed Range | 1/30~1/12,000sec(N), 1/25~1/12,000sec(P) |
| Video Rotation | Flip, Mirror | |
| IR Viewable Length | 25m(82.02ft) | |
| Coaxial Protocol | ACP, CVBS |
Analytics
| Analytics Events | Normal | Motion detection |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Others | Start up should be done at above -10°C | |
| Input Voltage | 12VDC | |
| Power Consumption | 12VDC | Max 5W |
Mechanical
| Color | Dark grey | |
| Material | Aluminum | |
| Product Dimensions | Ø70.0x246.0mm(Ø2.76x9.69") | |
| Product Weight | 670g(1.48lb) |
Video
| Imaging Device | Size | 1/3" |
| Type | CMOS | |
| Resolution | 2560x1440 | |
| Max. Framerate(NTSC/PAL) | 30fps/25fps | |
| Min. Illumination | Color(1/30sec, 30IRE) | 0.27 |
| BW(1/30sec, 30IRE) | 0.027 | |
| Video Out | CVBS: 1.0Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation, BNC: AHD | |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
Lens
| Focal Length (mm) | 4.0 | |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 78° |
| Vertical | 41° | |
| Diagonal | 88° | |
| Min. Object Distance | 0.5m(1.64ft) |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, DWDR | |
| Digital Noise Reduction | 2DDNR | |
| Motion Detection | Quantity | 4ea |
| Privacy Masking | Quantity | 2ea |
| Gain Control | Low, Middle, High, Very High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Speed Range | 1/30~1/12,000sec(N), 1/25~1/12,000sec(P) |
| Video Rotation | Flip, Mirror | |
| IR Viewable Length | 25m(82.02ft) | |
| Coaxial Protocol | ACP, CVBS |
Analytics
| Analytics Events | Normal | Motion detection |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Others | Start up should be done at above -10°C | |
| Input Voltage | 12VDC | |
| Power Consumption | 12VDC | Max 5W |
Mechanical
| Color | Dark grey | |
| Material | Aluminum | |
| Product Dimensions | Ø70.0x246.0mm(Ø2.76x9.69") | |
| Product Weight | 670g(1.48lb) |
Accessories
SBP-302PM
SBO-100B1
