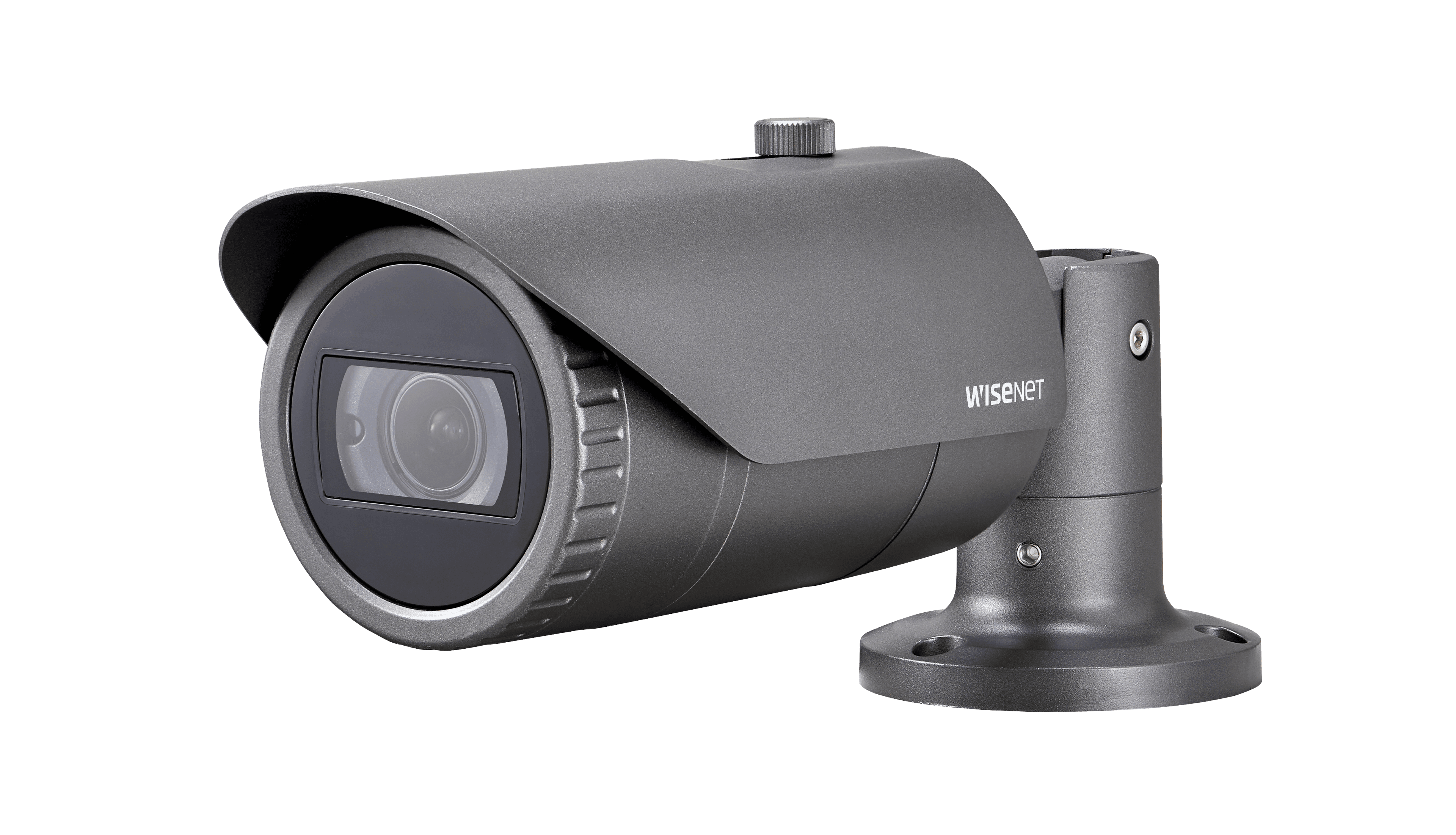

HCO-6080R
1080p Analog HD IR Bullet CameraKey Features
• Full HD resolution
• 0.11 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
• 3.2 ~ 10mm (3.1x) motorized V/F lens
• Day & Night (ICR), WDR (120dB)
• SSNRⅣ, Motion detection
• IR viewable length 30m, IP66, IK10
• Transmission distance max.500m
• Easy Installation (Plug & play), Dual power
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_HCO-6080R_240103_EN.pdf | 2026-04-19 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_Wisenet-HD_180202_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_HCO-6070R,HCO-6080R,HCO-7070R_170726.dxf | 2026-04-19 | |
| CAD | CAD_HCO-6070R,HCO-6080R,HCO-7070R_170804_EN.pdf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_HCO-6080R_170220_KO_Report_KC(EMC).pdf | 2026-04-19 | |
| Certification | Certification_HCO-6080R_170309_KO_KC(EMC).pdf | 2026-04-19 | |
| Certification | Certification_HCO-6080R_171018_EN_UL.pdf | 2026-04-19 | |
| Certification | Certification_HCO-6080R_171030_KO_SDoC_KC.pdf | 2026-04-19 | |
| Certification | Certification_HCO-6080R_190515_EN_DoC_CE.pdf | 2026-04-19 | |
| Certification | Certification_HCO-6080R_190515_EN_EMC_CE.pdf | 2026-04-19 | |
| Certification | Certification_HCO-6080R_170811_EN_FCC.pdf | 2026-04-19 | |
| Certification | Certification_HCO-6080R_170811_EN_IC.pdf | 2026-04-19 | |
| Certification | Certification_HCO-6080R_170814_EN_RCM.pdf | 2026-04-19 | |
| Certification | Certification_HCO-6080R_170814_EN_VCCI.pdf | 2026-04-19 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_HCO-6080R_200808_EN.docx | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_HCO-6080R_20250906_EN_052841.pdf | 2026-04-19 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_HCO-6080R_181207_Common_inch.rfa | 2026-04-19 | |
| BIM&Revit | BIM&Revit_HCO-6080R_181207_Common_mm.rfa | 2026-04-19 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_HCO-6080R_230608_Common.pdf | 2026-04-19 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation-Guide-Sheet_HCO-6080RHCO-7070RHCO-7080RVP_241023_Common.pdf | 2026-04-19 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080 | |
| Max. Framerate(NTSC/PAL) | 30fps/25fps | |
| Min. Illumination | Color(1/30sec, 30IRE) | 0.11 |
| BW(1/30sec, 30IRE) | 0.011 | |
| Video Out | BNC: AHD/TVI/CVI/CVBS Selectable | |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
Lens
| Focal Length (mm) | 3.2~10 | |
| Optical Zoom Ratio | 3.1x | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 110.2° ~ 32° |
| Vertical | 55.4° ~ 18° | |
| Diagonal | 128.4° ~ 36.6° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus | |
| Lens Type | DC auto iris(IR corrected) |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅣ | |
| Defog | Support | |
| Motion Detection | Quantity | 4ea |
| Privacy Masking | Quantity | 8ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High, Very High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Speed Range | 1~1/12,000sec |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | Output 1ea |
| Alarm Triggers | Analytics | |
| Alarm Events When Alarm Trigger Occurred | Alarm output | |
| IR Viewable Length | 30m(98.43ft) | |
| Coaxial Protocol | ACP, TCP, CCP, CVBS |
Analytics
| Analytics Events | Normal | Motion detection |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+60°C(-22°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Others | Start up should be done at above -10°C | |
| Storage Condition | Temperature | -30°C~+60°C |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | 24VAC, 12VDC | |
| Power Consumption | 12VDC | Max 5.8W |
| 24VAC | Max 5.8W |
Mechanical
| Color | Dark grey | |
| Material | Aluminum | |
| Product Dimensions | ø78.0x259.8mm(3.07x10.23") | |
| Product Weight | 948g(2.09 lb) |
Certifications & Standards
| Environment | IEC 60529 IP66, IEC 62262 IK10 |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080 | |
| Max. Framerate(NTSC/PAL) | 30fps/25fps | |
| Min. Illumination | Color(1/30sec, 30IRE) | 0.11 |
| BW(1/30sec, 30IRE) | 0.011 | |
| Video Out | BNC: AHD/TVI/CVI/CVBS Selectable | |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
Lens
| Focal Length (mm) | 3.2~10 | |
| Optical Zoom Ratio | 3.1x | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 110.2° ~ 32° |
| Vertical | 55.4° ~ 18° | |
| Diagonal | 128.4° ~ 36.6° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus | |
| Lens Type | DC auto iris(IR corrected) |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅣ | |
| Defog | Support | |
| Motion Detection | Quantity | 4ea |
| Privacy Masking | Quantity | 8ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High, Very High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Speed Range | 1~1/12,000sec |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | Output 1ea |
| Alarm Triggers | Analytics | |
| Alarm Events When Alarm Trigger Occurred | Alarm output | |
| IR Viewable Length | 30m(98.43ft) | |
| Coaxial Protocol | ACP, TCP, CCP, CVBS |
Analytics
| Analytics Events | Normal | Motion detection |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+60°C(-22°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Others | Start up should be done at above -10°C | |
| Storage Condition | Temperature | -30°C~+60°C |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | 24VAC, 12VDC | |
| Power Consumption | 12VDC | Max 5.8W |
| 24VAC | Max 5.8W |
Mechanical
| Color | Dark grey | |
| Material | Aluminum | |
| Product Dimensions | ø78.0x259.8mm(3.07x10.23") | |
| Product Weight | 948g(2.09 lb) |
Certifications & Standards
| Environment | IEC 60529 IP66, IEC 62262 IK10 |
