HCD-6070R

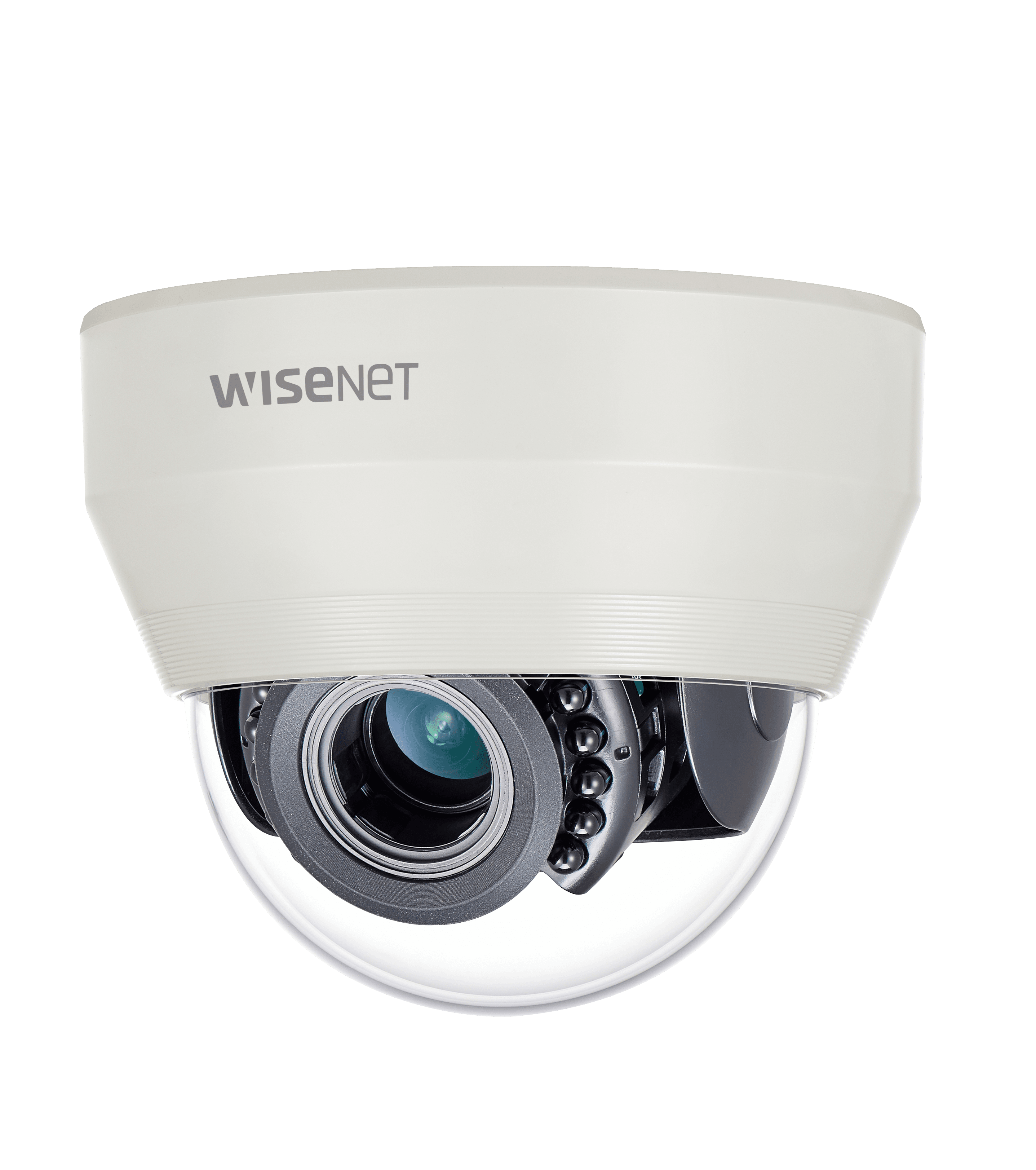

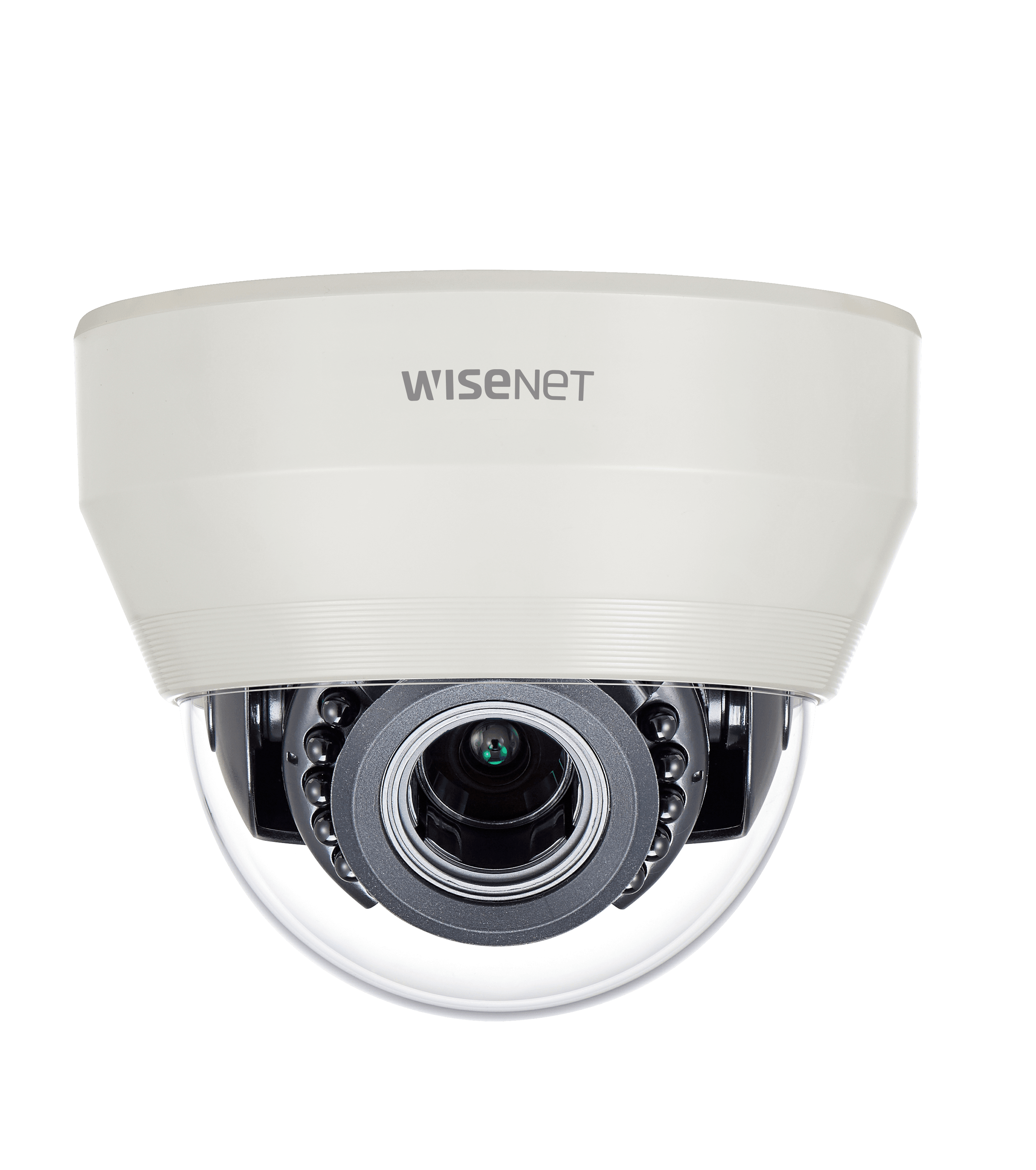

1080p Analog HD IR Dome CameraKey Features
• Full HD resolution
• 0.11 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
• 3.2 ~ 10mm (3.1x) V/F lens
• Day & Night (ICR), WDR (120dB)
• SSNRⅣ, Motion detection
• IR viewable length 20m
• Transmission distance max.500m
• Easy Installation (Plug & play), Dual power
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_HCD-6070R,HCV-6070R_240103_EN.pdf | 2026-04-19 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_Wisenet-HD_180202_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_HCD-6070R,HCD-6080R,HCD-7070R_170726_EN.pdf | 2026-04-19 | |
| CAD | CAD_HCD-6070R,HCD-6080R,HCD-7070R_170726.dxf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_HCD-6070R_170512_EN_UL.pdf | 2026-04-19 | |
| Certification | Certification_HCD-6070R_230224_EN_DoC_CE.pdf | 2026-04-19 | |
| Certification | Certification_HCD-6070R_230224_EN_DoC_UKCA.pdf | 2026-04-19 | |
| Certification | Certification_HCD-6070R_230224_EN_EMC_CE(+UKCA).pdf | 2026-04-19 | |
| Certification | Certification_HCD-6070R_230224_EN_FCC,IC.pdf | 2026-04-19 | |
| Certification | Certification_HCD-6070R_230224_EN_RCM.pdf | 2026-04-19 | |
| Certification | Certification_HCD-6070R_230224_EN_VCCI.pdf | 2026-04-19 | |
| Certification | Certification_HCD-6070R_230310_KO_SDoC_KC.pdf | 2026-04-19 | |
| Certification | Certification_HCD-6070R_230315_KO_Report_KC(EMC).pdf | 2026-04-19 | |
| Certification | Certification_HCD-6070R_230321_KO_KC(EMC).pdf | 2026-04-19 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_HCD-6070R_200811_EN.docx | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_HCD-6070R_20250906_EN_051549.pdf | 2026-04-19 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_HCD-6070R_181207_Common_inch.rfa | 2026-04-19 | |
| BIM&Revit | BIM&Revit_HCD-6070R_181207_Common_mm.rfa | 2026-04-19 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_HCD-6070R_230613_Common-1.pdf | 2026-04-19 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080 | |
| Max. Framerate(NTSC/PAL) | 30fps/25fps | |
| Min. Illumination | Color(1/30sec, 30IRE) | 0.11 |
| BW(1/30sec, 30IRE) | 0.011 | |
| Video Out | BNC: AHD/TVI/CVI/CVBS Selectable | |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
Lens
| Focal Length (mm) | 3.2~10 | |
| Optical Zoom Ratio | 3.1x | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 110.2°~32° |
| Vertical | 55.4°~18° | |
| Diagonal | 128.4°~36.6° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Manual | |
| Lens Type | DC auto iris(IR corrected) |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~350° |
| Tilt | 0°~67° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅣ | |
| Defog | Support | |
| Motion Detection | Quantity | 4ea |
| Privacy Masking | Quantity | 8ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High, Very High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Speed Range | 1~1/12,000sec |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | Output 1ea |
| Alarm Triggers | Analytics | |
| Alarm Events When Alarm Trigger Occurred | Alarm output | |
| IR Viewable Length | 20m(65.62ft) | |
| Coaxial Protocol | ACP, TCP, CCP, CVBS |
Analytics
| Analytics Events | Normal | Motion detection |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | 24VAC, 12VDC | |
| Power Consumption | 12VDC | Max 4.2W |
| 24VAC | Max 4.2W |
Mechanical
| Color | Ivory | |
| Material | PC(Polycarbonate) | |
| Product Dimensions | ø119.8x98.5mm(4.72x3.88") | |
| Product Weight | 320g(0.71lb) |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080 | |
| Max. Framerate(NTSC/PAL) | 30fps/25fps | |
| Min. Illumination | Color(1/30sec, 30IRE) | 0.11 |
| BW(1/30sec, 30IRE) | 0.011 | |
| Video Out | BNC: AHD/TVI/CVI/CVBS Selectable | |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
Lens
| Focal Length (mm) | 3.2~10 | |
| Optical Zoom Ratio | 3.1x | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 110.2°~32° |
| Vertical | 55.4°~18° | |
| Diagonal | 128.4°~36.6° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Manual | |
| Lens Type | DC auto iris(IR corrected) |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~350° |
| Tilt | 0°~67° | |
| Rotate | 0°~355° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅣ | |
| Defog | Support | |
| Motion Detection | Quantity | 4ea |
| Privacy Masking | Quantity | 8ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High, Very High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Speed Range | 1~1/12,000sec |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | Output 1ea |
| Alarm Triggers | Analytics | |
| Alarm Events When Alarm Trigger Occurred | Alarm output | |
| IR Viewable Length | 20m(65.62ft) | |
| Coaxial Protocol | ACP, TCP, CCP, CVBS |
Analytics
| Analytics Events | Normal | Motion detection |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | 24VAC, 12VDC | |
| Power Consumption | 12VDC | Max 4.2W |
| 24VAC | Max 4.2W |
Mechanical
| Color | Ivory | |
| Material | PC(Polycarbonate) | |
| Product Dimensions | ø119.8x98.5mm(4.72x3.88") | |
| Product Weight | 320g(0.71lb) |
