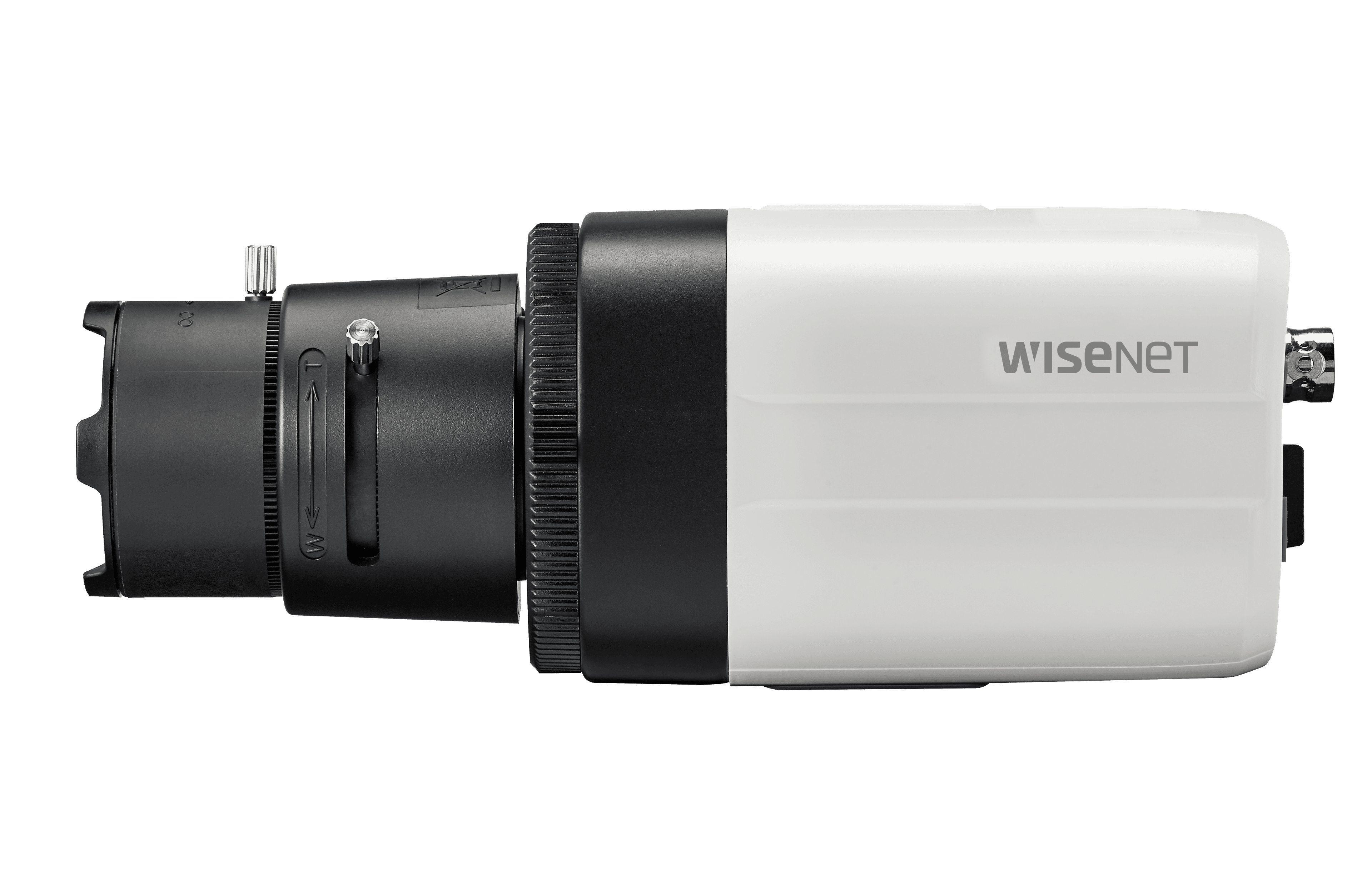

HCB-7000A
QHD (4MP) Analog Box CameraKey Features
• QHD (2560 x 1440, 30fps) resolution
• 0.16 Lux@F1.2 (Color), 0.009 Lux@F1.2 (B/W)
• Day & Night (ICR), DWDR, Motion detection
• Transmission distance Max. 500m
• Easy installation (Plug & play), Dual power
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_HCB-7000A,HCB-7000PHA_230609_EN.pdf | 2026-04-19 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_Wisenet-HD_180202_EN.pdf | 2026-04-19 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_HCB-6000,HCB-7000_170726.dxf | 2026-04-19 | |
| CAD | CAD_HCB-6000,HCB-7000_170726.pdf | 2026-04-19 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_HCB-7000_190515_EN_DoC_CE.pdf | 2026-04-19 | |
| Certification | Certification_HCB-7000_190515_EN_EMC_CE.pdf | 2026-04-19 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_HCB-7000A_20250906_EN_051048.pdf | 2026-04-19 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_HCB-7000A_230609_Common.pdf | 2026-04-19 |
Specifications
Video
| Imaging Device | Size | 1/3" |
| Type | CMOS | |
| Resolution | 2560x1440 | |
| Max. Framerate(NTSC/PAL) | 30fps/25fps | |
| Min. Illumination | Color(1/30sec, 30IRE) | 0.16 |
| BW(1/30sec, 30IRE) | 0.009 | |
| Video Out | CVBS: 1.0Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation, BNC: AHD | |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
Lens
| Focus Control | Manual | |
| Lens Type | DC auto iris(IR corrected) | |
| Mount Type | C mount, CS mount |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, DWDR | |
| Digital Noise Reduction | 2DDNR | |
| Motion Detection | Quantity | 4ea |
| Privacy Masking | Quantity | 2ea |
| Gain Control | Low, Middle, High, Very High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Speed Range | 1/30~1/12,000sec(N), 1/25~1/12,000sec(P) |
| Video Rotation | Flip, Mirror | |
| Serial Interface | RS-485 | |
| Alarm Interface | In/Out | Output 1ea |
| Coaxial Protocol | ACP, CVBS |
Analytics
| Analytics Events | Normal | Motion detection |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | 24VAC, 12VDC | |
| Power Consumption | 12VDC | Max 3.6W |
| 24VAC | Max 3.6W |
Mechanical
| Color | Ivory, Black | |
| Material | Aluminum, PC(Polycarbonate) | |
| Product Dimensions | 59.6x68.4x92.7mm(2.35x2.69x3.65") | |
| Product Weight | 186g(0.41lb) |
Video
| Imaging Device | Size | 1/3" |
| Type | CMOS | |
| Resolution | 2560x1440 | |
| Max. Framerate(NTSC/PAL) | 30fps/25fps | |
| Min. Illumination | Color(1/30sec, 30IRE) | 0.16 |
| BW(1/30sec, 30IRE) | 0.009 | |
| Video Out | CVBS: 1.0Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation, BNC: AHD | |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
Lens
| Focus Control | Manual | |
| Lens Type | DC auto iris(IR corrected) | |
| Mount Type | C mount, CS mount |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, DWDR | |
| Digital Noise Reduction | 2DDNR | |
| Motion Detection | Quantity | 4ea |
| Privacy Masking | Quantity | 2ea |
| Gain Control | Low, Middle, High, Very High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Speed Range | 1/30~1/12,000sec(N), 1/25~1/12,000sec(P) |
| Video Rotation | Flip, Mirror | |
| Serial Interface | RS-485 | |
| Alarm Interface | In/Out | Output 1ea |
| Coaxial Protocol | ACP, CVBS |
Analytics
| Analytics Events | Normal | Motion detection |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | 24VAC, 12VDC | |
| Power Consumption | 12VDC | Max 3.6W |
| 24VAC | Max 3.6W |
Mechanical
| Color | Ivory, Black | |
| Material | Aluminum, PC(Polycarbonate) | |
| Product Dimensions | 59.6x68.4x92.7mm(2.35x2.69x3.65") | |
| Product Weight | 186g(0.41lb) |
