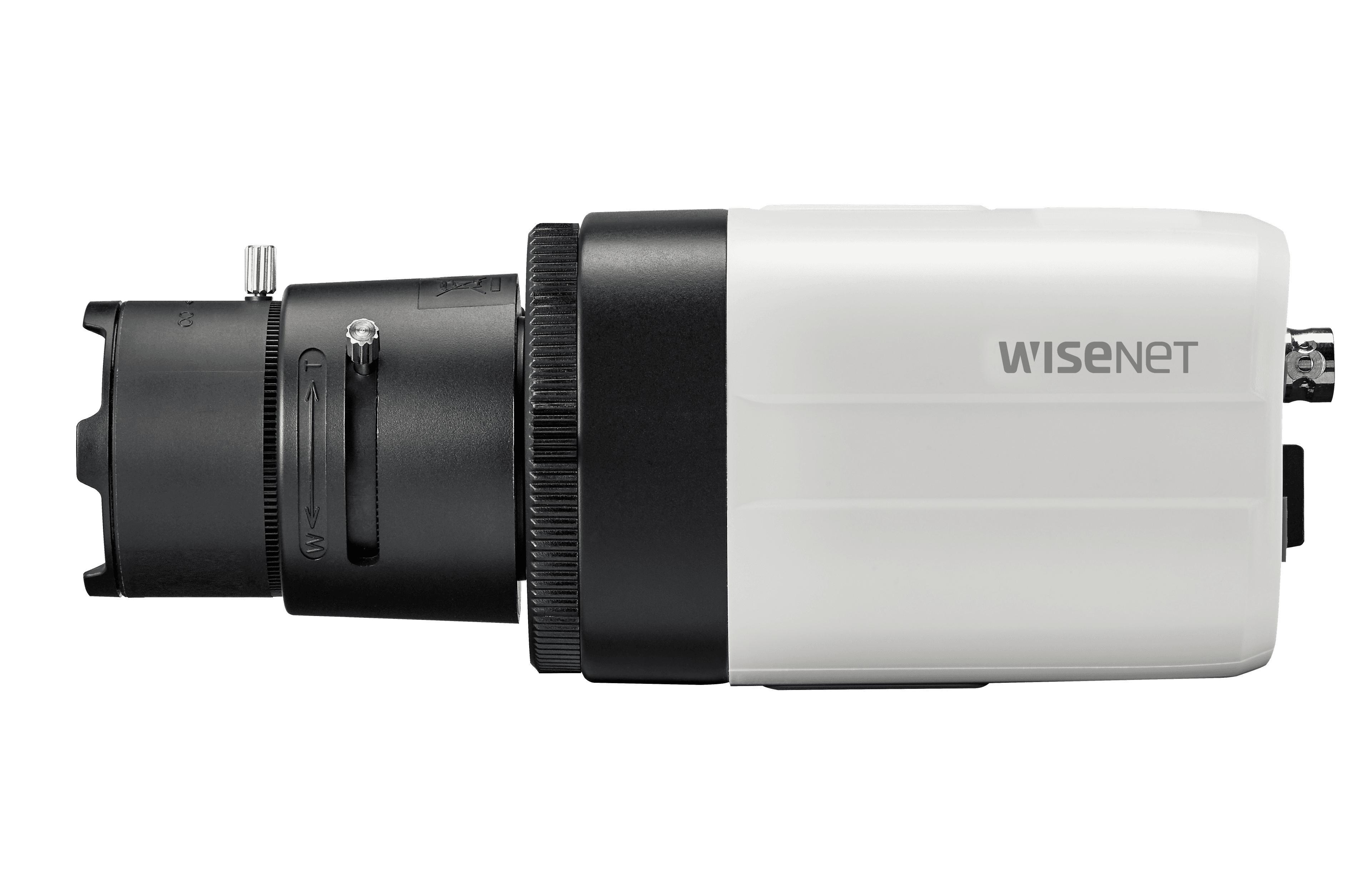

HCB-6000
1080p Analog HD CameraKey Features
• Full HD resolution
• 0.09 Lux@F1.2 (Color), 0.009 Lux@F1.2 (B/W )
• Day & Night (ICR), WDR (120dB)
• SSNRⅣ, Motion detection
• Transmission distance max.500m
• Easy Installation (Plug & play), Dual power, RS-485
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_HCB-6000%2CHCB-6000PH_230608_EN.pdf | 2026-04-27 |
Brochures
| Category | File Name | Last Update | |
|---|---|---|---|
| Brochures | Brochures_Wisenet-HD_180202_EN.pdf | 2026-04-27 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_HCB-6000,HCB-7000,SCB-6005_231016_EN.dwg | 2026-04-27 | |
| CAD | CAD_HCB-6000,HCB-7000,SCB-6005_231016_EN.dxf | 2026-04-27 | |
| CAD | CAD_HCB-6000,HCB-7000,SCB-6005_231016_EN.pdf | 2026-04-27 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_HCB-6000_170915_EN_UL.pdf | 2026-04-27 | |
| Certification | Certification_HCB-6000_230224_EN_DoC_CE.pdf | 2026-04-27 | |
| Certification | Certification_HCB-6000_230224_EN_DoC_UKCA.pdf | 2026-04-27 | |
| Certification | Certification_HCB-6000_230224_EN_EMC_CE(+UKCA).pdf | 2026-04-27 | |
| Certification | Certification_HCB-6000_230224_EN_FCC.pdf | 2026-04-27 | |
| Certification | Certification_HCB-6000_230224_EN_IC.pdf | 2026-04-27 | |
| Certification | Certification_HCB-6000_230224_EN_RCM.pdf | 2026-04-27 | |
| Certification | Certification_HCB-6000_230224_EN_VCCI.pdf | 2026-04-27 | |
| Certification | Certification_HCB-6000_230310_KO_SDoC_KC.pdf | 2026-04-27 | |
| Certification | Certification_HCB-6000_230315_KO_Report_KC(EMC).pdf | 2026-04-27 | |
| Certification | Certification_HCB-6000_230321_KO_KC(EMC).pdf | 2026-04-27 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_HCB-6000_200811_EN.docx | 2026-04-27 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_HCB-6000_20250906_EN_050805.pdf | 2026-04-27 |
BIM&Revit
| Category | File Name | Last Update | |
|---|---|---|---|
| BIM&Revit | BIM&Revit_HCB-6000_181220_Common_inch.rfa | 2026-04-27 | |
| BIM&Revit | BIM&Revit_HCB-6000_181220_Common_mm.rfa | 2026-04-27 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_HCB-6000_230608_Common.pdf | 2026-04-27 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080 | |
| Max. Framerate(NTSC/PAL) | 30fps/25fps | |
| Min. Illumination | Color(1/30sec, 30IRE) | 0.09 |
| BW(1/30sec, 30IRE) | 0.009 | |
| Video Out | BNC: AHD/TVI/CVI/CVBS Selectable | |
| Video Transmission Distance | 500m(5C2V Coaxial Cable), 300m(5C2V Coaxial Cable) |
Lens
| Focus Control | Manual | |
| Lens Type | DC auto iris(IR corrected) | |
| Mount Type | C mount, CS mount |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅣ | |
| Defog | Support | |
| Motion Detection | Quantity | 4ea |
| Privacy Masking | Quantity | 8ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High, Very High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Speed Range | 1~1/12,000sec |
| Video Rotation | Flip, Mirror | |
| Serial Interface | RS-485 | |
| Alarm Interface | In/Out | Output 1ea |
| Others | External D/N | |
| Alarm Triggers | Analytics | |
| Alarm Events When Alarm Trigger Occurred | Alarm output | |
| Coaxial Protocol | ACP, TCP, CCP, CVBS |
Analytics
| Analytics Events | Normal | Motion detection |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | 24VAC, 12VDC | |
| Power Consumption | 12VDC | Max 3.5W |
| 24VAC | Max 3.5W |
Mechanical
| Color | Ivory, Black | |
| Material | Aluminum, PC(Polycarbonate) | |
| Product Dimensions | 68.4(W)×59.6(H)×92.7(D)mm(2.69×2.35×3.65") | |
| Product Weight | 186g(0.41lb) |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080 | |
| Max. Framerate(NTSC/PAL) | 30fps/25fps | |
| Min. Illumination | Color(1/30sec, 30IRE) | 0.09 |
| BW(1/30sec, 30IRE) | 0.009 | |
| Video Out | BNC: AHD/TVI/CVI/CVBS Selectable | |
| Video Transmission Distance | 500m(5C2V Coaxial Cable), 300m(5C2V Coaxial Cable) |
Lens
| Focus Control | Manual | |
| Lens Type | DC auto iris(IR corrected) | |
| Mount Type | C mount, CS mount |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅣ | |
| Defog | Support | |
| Motion Detection | Quantity | 4ea |
| Privacy Masking | Quantity | 8ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High, Very High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Speed Range | 1~1/12,000sec |
| Video Rotation | Flip, Mirror | |
| Serial Interface | RS-485 | |
| Alarm Interface | In/Out | Output 1ea |
| Others | External D/N | |
| Alarm Triggers | Analytics | |
| Alarm Events When Alarm Trigger Occurred | Alarm output | |
| Coaxial Protocol | ACP, TCP, CCP, CVBS |
Analytics
| Analytics Events | Normal | Motion detection |
Environmental & Electrical
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | 24VAC, 12VDC | |
| Power Consumption | 12VDC | Max 3.5W |
| 24VAC | Max 3.5W |
Mechanical
| Color | Ivory, Black | |
| Material | Aluminum, PC(Polycarbonate) | |
| Product Dimensions | 68.4(W)×59.6(H)×92.7(D)mm(2.69×2.35×3.65") | |
| Product Weight | 186g(0.41lb) |
Accessories
SHB-4200H
SHB-4200
SHB-4301HP
Discontinued

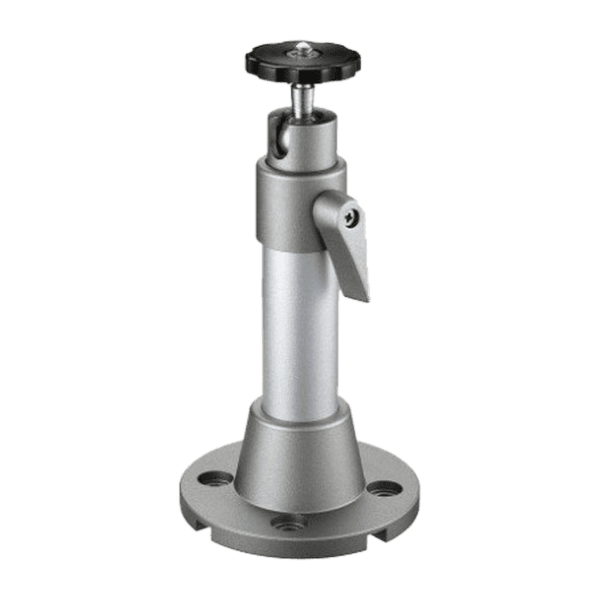

STB-4150V
