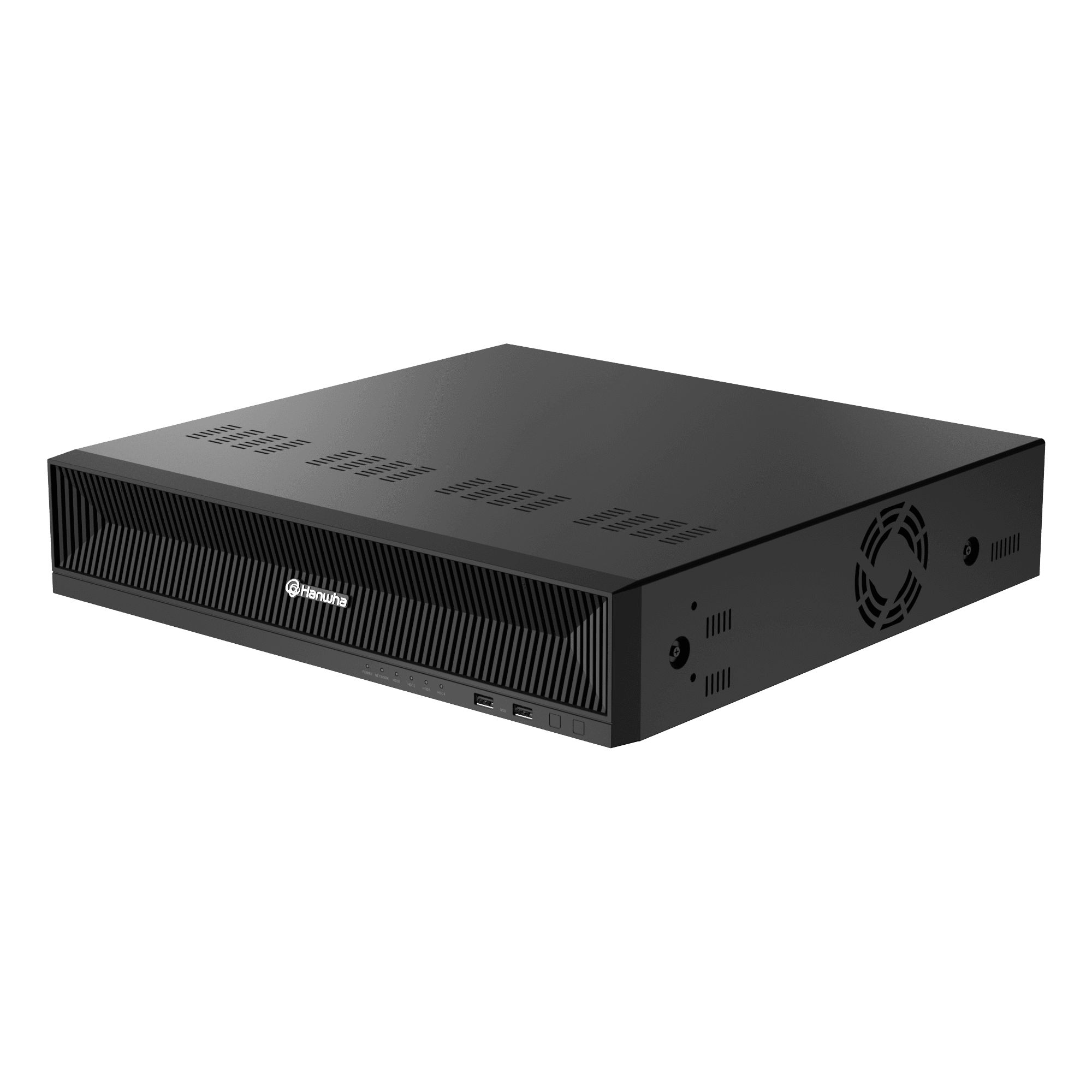

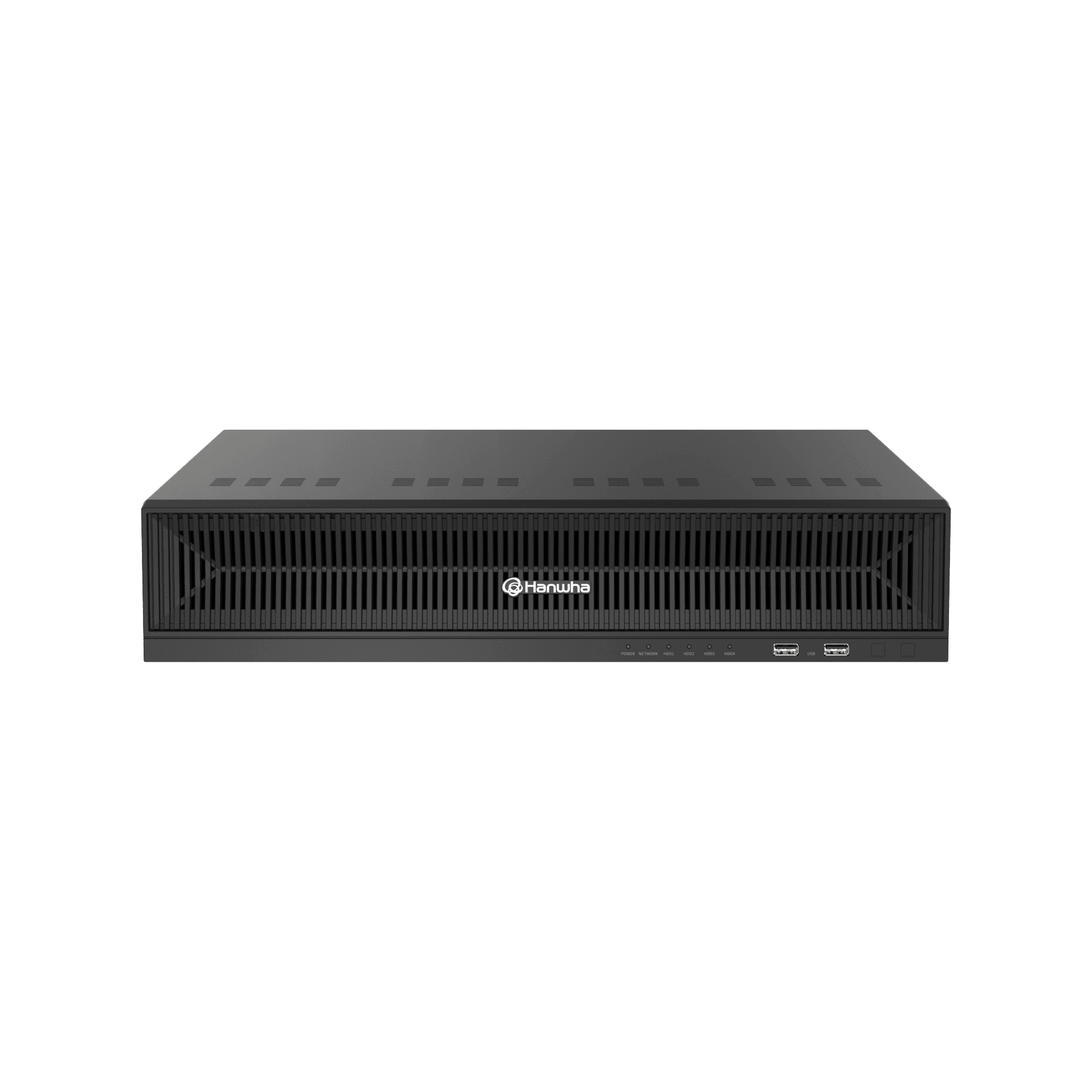

CGR-3210B1
32Ch Cloud Gateway Recorder Key Features
• Cloud Gateway Recorder is a device for local recording
and connecting to Hanwha OnCloud for third-party cameras
or HanwhaIP camera which do not have cloud connector app
• Supports up to 32ch, 250Mbps recording
• Supports up to 4x3.5” HDD, up to 16TB per SATA
Total 64TB HDD capacity
• Two Gigabit network ports(10/100/1000 BASE-T)
• NDAA compliant, FCC Certified
For supported HDD information, please visit the HDD compatibility list.
Downloads
View Selection
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_CGR-3210B1_250701_EN_DoC_CE.pdf | 2026-06-23 | |
| Certification | Certification_CGR-3210B1_250701_EN_DoC_UKCA.pdf | 2026-06-23 | |
| Certification | Certification_CGR-3210B1_250701_EN_EMC_CE%2CUKCA.pdf | 2026-06-23 | |
| Certification | Certification_CGR-3210B1_250701_EN_FCC%2CIC.pdf | 2026-06-23 | |
| Certification | Certification_CGR-3210B1_250701_EN_RCM.pdf | 2026-06-23 | |
| Certification | Certification_CGR-3210B1_250701_EN_VCCI.pdf | 2026-06-23 | |
| Certification | Certification_CGR-3210B1_250729_EN_CB.pdf | 2026-06-23 | |
| Certification | Certification_CGR-3210B1_250814_EN_UL.pdf | 2026-06-23 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CGR-3210B1-1.2.36-prod-20260607.472.zip | 2026-06-25 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | A%26E%20Document_CGR-3210B1_260211_EN.docx | 2026-06-23 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_CGR-3210B1_20250915_EN_112449.pdf | 2026-06-23 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick%20Guide_CGR-3210B1%2CCGR-1610_250813_AR.pdf | 2026-06-23 | |
| Quick Guide | Quick%20Guide_CGR-3210B1%2CCGR-1610_250813_CS.pdf | 2026-06-23 | |
| Quick Guide | Quick%20Guide_CGR-3210B1%2CCGR-1610_250813_DE.pdf | 2026-06-23 | |
| Quick Guide | Quick%20Guide_CGR-3210B1%2CCGR-1610_250813_EN.pdf | 2026-06-23 | |
| Quick Guide | Quick%20Guide_CGR-3210B1%2CCGR-1610_250813_ES.pdf | 2026-06-23 | |
| Quick Guide | Quick%20Guide_CGR-3210B1%2CCGR-1610_250813_FR.pdf | 2026-06-23 | |
| Quick Guide | Quick%20Guide_CGR-3210B1%2CCGR-1610_250813_IT.pdf | 2026-06-23 | |
| Quick Guide | Quick%20Guide_CGR-3210B1%2CCGR-1610_250813_NL.pdf | 2026-06-23 | |
| Quick Guide | Quick%20Guide_CGR-3210B1%2CCGR-1610_250813_PL.pdf | 2026-06-23 | |
| Quick Guide | Quick%20Guide_CGR-3210B1%2CCGR-1610_250813_PT.pdf | 2026-06-23 | |
| Quick Guide | Quick%20Guide_CGR-3210B1%2CCGR-1610_250813_TR.pdf | 2026-06-23 | |
| Quick Guide | Quick%20Guide_CGR-3210B1%2CCGR-1610_250813_VI.pdf | 2026-06-23 | |
| Quick Guide | Quick%20Guide_CGR-3210B1%2CCGR-1610_250813_ZH-TW.pdf | 2026-06-23 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_CGR-1610%2CCGR-3210B1_250722_EN.txt | 2026-06-23 |
Specifications
Performance
| Operating System | Embedded | Linux |
| Recording Bandwidth | Max. 250Mbps | |
| Storage | Supported HDD | Up to 16TB |
| HDD Slot | SATA 4ea(Max. 64TB) |
Interface
| Front | Indicator | Power, Network, HDD1, HDD2, HDD3, HDD4 |
| HDMI | 1EA(Reserved) | |
| DP | 1EA(Reserved) | |
| Audio | Audio output(Reserved) | |
| Ethernet | RJ-45 2ea (10/100/1000 BASE-T) | |
| USB | Front USB 2.0(2), Rear USB 3.0(2) |
Environmental
| CPU | Quad core | |
| RAM | DDR4 16GB | |
| OS HDD | eMMC 32GB | |
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH |
Electrical
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| Power Consumption | 80W |
Mechanical
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440 x 90 x 430 mm(17.3x3.5x16.9") | |
| Weight | 5.5Kg(12.2lb) |
Performance
| Operating System | Embedded | Linux |
| Recording Bandwidth | Max. 250Mbps | |
| Storage | Supported HDD | Up to 16TB |
| HDD Slot | SATA 4ea(Max. 64TB) |
Interface
| Front | Indicator | Power, Network, HDD1, HDD2, HDD3, HDD4 |
| HDMI | 1EA(Reserved) | |
| DP | 1EA(Reserved) | |
| Audio | Audio output(Reserved) | |
| Ethernet | RJ-45 2ea (10/100/1000 BASE-T) | |
| USB | Front USB 2.0(2), Rear USB 3.0(2) |
Environmental
| CPU | Quad core | |
| RAM | DDR4 16GB | |
| OS HDD | eMMC 32GB | |
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH |
Electrical
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| Power Consumption | 80W |
Mechanical
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440 x 90 x 430 mm(17.3x3.5x16.9") | |
| Weight | 5.5Kg(12.2lb) |
