BRR-P6410A4ENew

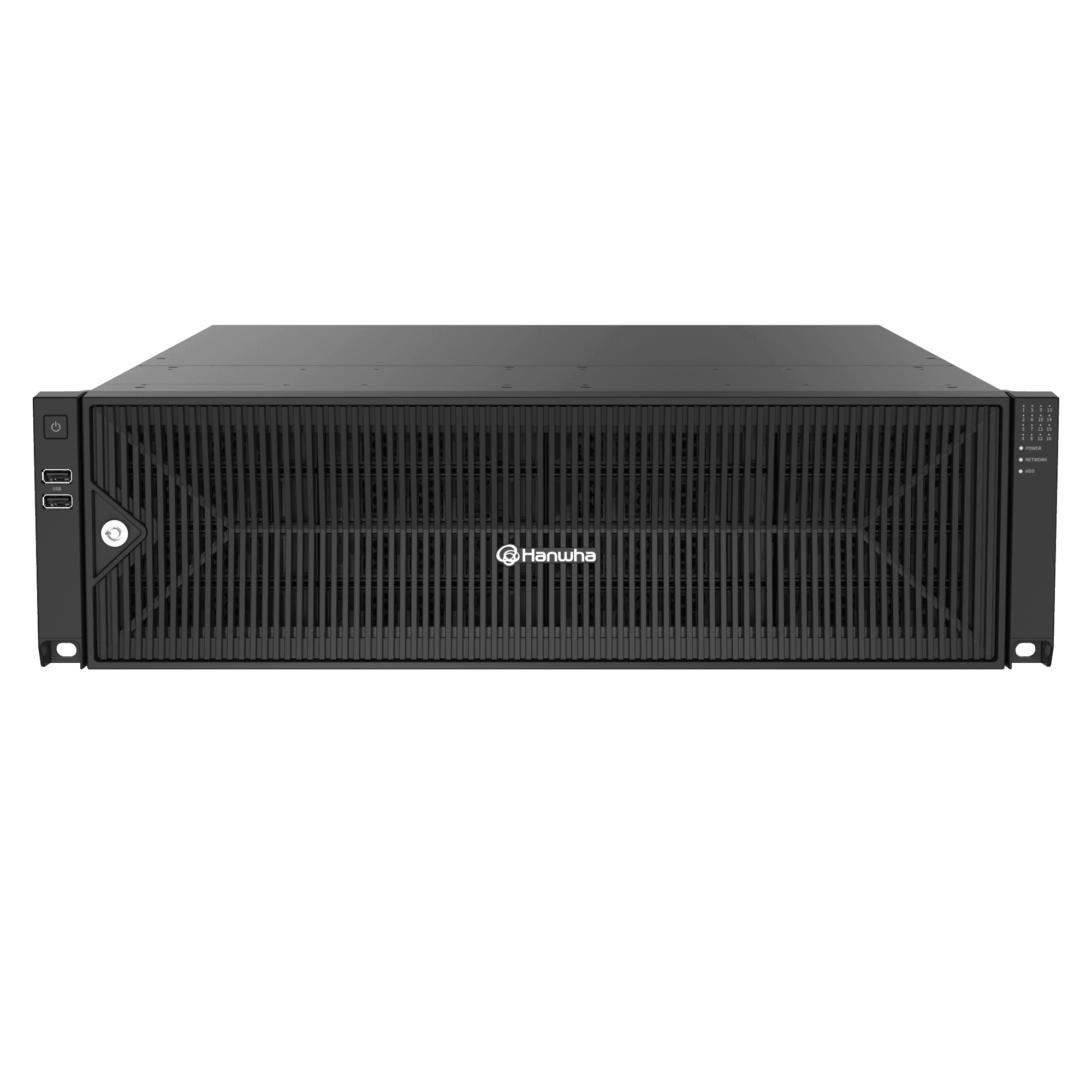

64CH BLAZE ApplianceKey Features
- Pre-installed BLAZE Client, Server and 64ch premium licenses
- Up to 520Mbps recording bandwidth
- (AI) Semantic Search Support
- 16 HDD bays (3.5"), up to 160TB
- Hardened OS
- RAID 1/5/6 support
- 3 x RJ-45 (1Gbps)
- NDAA compliant, UL listed, FCC certified
For supported BLAZE information, please visit the BLAZE compatibility list.
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_BLAZE_260818_EN_v1.3.pdf | 2026-09-28 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_BRR-P6410A4E%2CBRR-P3210A4E%2CBRR-X6410A4E%2CBRR-X3210A4E_260409_Common.dxf | 2026-09-28 | |
| CAD | CAD_BRR-P6410A4E%2CBRR-P3210A4E%2CBRR-X6410A4E%2CBRR-X3210A4E_260409_Common.pdf | 2026-09-28 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_BRR-P6410A4E%2CBRR-P3210A4E_260310_EN_VCCI.PDF | 2026-09-28 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | BRR-P6410A4E-1.3.21-prod-20260825.306.img | 2026-09-28 | |
| Firmware | BRR-P6410A4E-1.3.23-prod-20260911.327.img | 2026-09-28 | |
| Firmware | BRR-P6410A4E-1.3.21-prod-20260825.306.img | 2026-09-28 | |
| Firmware | SemanticAI_v_BPA-1050PN1_1_3_19_20260820.cap | 2026-09-28 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | A%26E%20Document_BRR-P6410A4E_260610_EN.docx | 2026-09-28 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_BRR-P6410A4E_20260928_EN_103204.pdf | 2026-09-28 |
Quick Guide
Product Specifications
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_BRR-P6410A4E%2CBRR-X6410A4E%2CBRR-P3210A4E%2CBRR-X3210A4E_260330_EN.txt | 2026-09-28 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_BRR-P6410A4E%2CBRR-X6410A4E%2CBRR-P3210A4E%2CBRR-X3210A4E_260330_EN_cyclonedx.json | 2026-09-28 |
Specifications
System
| Video Management Software | BLAZE VMS | |
| Licenses | 64 x BLAZE Premium License | |
| Available Channels | Up to 64 channels | |
| Recording Rate | Up to 520Mbps | |
| OS Drive Bays | SSD 128GB | |
| Data Drive Bays | SATA 16ea | |
| Data Storage | Up to 160TB | |
| RAID Support | RAID 1, RAID 5, RAID 6 | |
| Network Interface | 3 x RJ-45 (1Gbps) | |
| Memory | 16GB DDR4 | |
| AI Card | Yes | |
| Operating System | Hardened OS | |
| Decoding | Video Outputs | Duplicate: 2 x HDMI(4K), Extend: 1 x HDMI(4K), 1 x HDMI(FHD) |
| Resolution | Decoding Performance (H.264) - UHD Duplicate Mode: 26CH*8M@15fps, 64CH*2M@15fps, 64CH*640x360@7fps - UHD/FHD Extend Mode: (14CH+14CH)*8M@15fps, (32CH+32CH)*2M@15fps, (32CH+32CH)*640x360@7fps | |
| USB Ports | Front 2 x USB 2.0 Rear 2 x USB 3.0 | |
| Audio | Output | 1x Audio output |
| Audio Communication | 2-Way (Audio In: USB Mic) | |
| Keyboard & Mouse | Keyboard, Mouse |
Mechanical
| Form Factor | 3U rack | |
| Color / Material | Black / Metal | |
| Dimensions (WxHxD) | 17.32"(440mm) x 5.20"(132mm) x 22.48"(571.1mm) | |
| Weight | 31.3 lbs (14.2kg) |
Electrical
| Power Input | 100 ~ 240 VAC ±10%, 50/60 Hz | |
| Power Consumption | 283W (965.6 BTU) |
Environmental
| Operating Temperature | 32°F to 104°F(0°C to 40°C) | |
| Operating Humidity | 20% to 85% RH (non-condensing) |
System
| Video Management Software | BLAZE VMS | |
| Licenses | 64 x BLAZE Premium License | |
| Available Channels | Up to 64 channels | |
| Recording Rate | Up to 520Mbps | |
| OS Drive Bays | SSD 128GB | |
| Data Drive Bays | SATA 16ea | |
| Data Storage | Up to 160TB | |
| RAID Support | RAID 1, RAID 5, RAID 6 | |
| Network Interface | 3 x RJ-45 (1Gbps) | |
| Memory | 16GB DDR4 | |
| AI Card | Yes | |
| Operating System | Hardened OS | |
| Decoding | Video Outputs | Duplicate: 2 x HDMI(4K), Extend: 1 x HDMI(4K), 1 x HDMI(FHD) |
| Resolution | Decoding Performance (H.264) - UHD Duplicate Mode: 26CH*8M@15fps, 64CH*2M@15fps, 64CH*640x360@7fps - UHD/FHD Extend Mode: (14CH+14CH)*8M@15fps, (32CH+32CH)*2M@15fps, (32CH+32CH)*640x360@7fps | |
| USB Ports | Front 2 x USB 2.0 Rear 2 x USB 3.0 | |
| Audio | Output | 1x Audio output |
| Audio Communication | 2-Way (Audio In: USB Mic) | |
| Keyboard & Mouse | Keyboard, Mouse |
Mechanical
| Form Factor | 3U rack | |
| Color / Material | Black / Metal | |
| Dimensions (WxHxD) | 17.32"(440mm) x 5.20"(132mm) x 22.48"(571.1mm) | |
| Weight | 31.3 lbs (14.2kg) |
Electrical
| Power Input | 100 ~ 240 VAC ±10%, 50/60 Hz | |
| Power Consumption | 283W (965.6 BTU) |
Environmental
| Operating Temperature | 32°F to 104°F(0°C to 40°C) | |
| Operating Humidity | 20% to 85% RH (non-condensing) |
