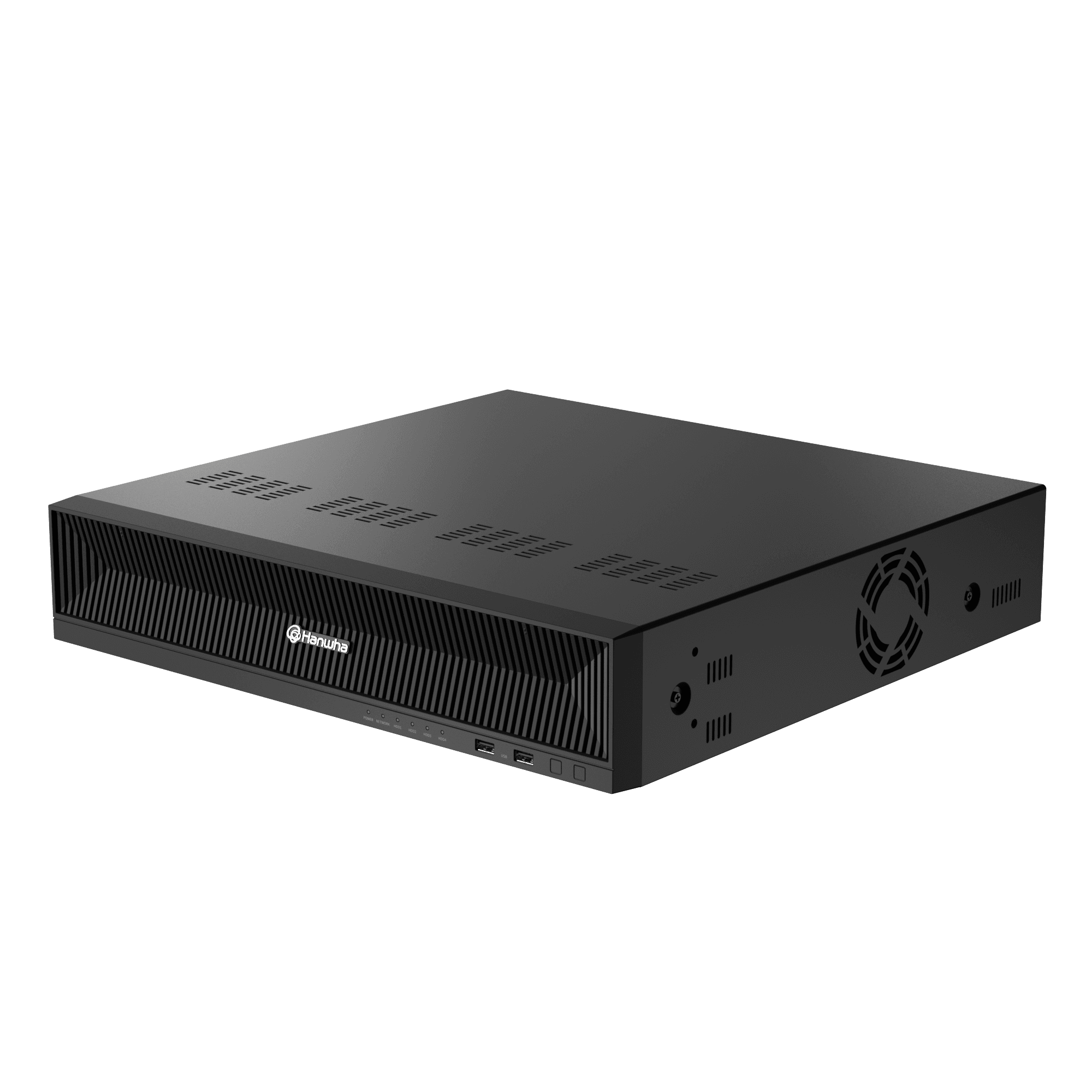

BRB-X32101ENew
32CH BLAZE ApplianceKey Features
- Pre-installed BLAZE Client, Server and 32ch premium licenses
- Up to 250Mbps recording bandwidth
- 4 HDD bays (3.5"), up to 64TB
- Hardened OS
- 2 x RJ-45 (1Gbps)
- FIPS 140-3 level 3, NDAA compliant, UL listed, FCC certified
For supported BLAZE information, please visit the BLAZE compatibility list.
Downloads
View Selection
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_BRB-X32101E%2CBRB-X3210S1E_250731_Common.dxf | 2026-07-07 | |
| CAD | CAD_BRB-X32101E%2CBRB-X3210S1E_250731_Common.pdf | 2026-07-07 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_BRB-X32101E_251022_EN_CE%2CUKCA.pdf | 2026-07-07 | |
| Certification | Certification_BRB-X32101E_251022_EN_DoC_CE.pdf | 2026-07-07 | |
| Certification | Certification_BRB-X32101E_251022_EN_DoC_UKCA.pdf | 2026-07-07 | |
| Certification | Certification_BRB-X32101E_251022_EN_FCC%2CIC.pdf | 2026-07-07 | |
| Certification | Certification_BRB-X32101E_251022_EN_RCM.pdf | 2026-07-07 | |
| Certification | Certification_BRB-X32101E_251022_EN_VCCI.pdf | 2026-07-07 | |
| Certification | Certification_BRB-X3210S1E%2CBRB-X32101E_251028_EN_CB.pdf | 2026-07-07 | |
| Certification | Certification_BRB-X3210S1E%2CBRB-X32101E_251031_EN_UL.pdf | 2026-07-07 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | BRR-P6410A4E-1.2.20-prod-20260325.154.img | 2026-07-07 | |
| Firmware | BRR-P6410A4E-1.2.204-prod-20260512.212.img | 2026-07-07 | |
| Firmware | BRR-P6410A4E-1.2.209-prod-20260610.230.img | 2026-07-07 | |
| Firmware | BRR-P6410A4E-1.2.212-prod-20260629.242.img | 2026-07-07 | |
| Firmware | BRR-P6410A4E-1.2.28-prod-20260420.190.img | 2026-07-07 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | A%26E%20Document_BRB-X32101E_260402_EN.docx | 2026-07-07 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_BRB-X32101E_20260707_EN_135606.pdf | 2026-07-07 |
Quick Guide
Product Specifications
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_BRB-X3210S1E%2CBRB-X32101E%2CBRB-X1610SE%2CBRB-X1610E_260330_EN.txt | 2026-07-07 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_BRB-X3210S1E%2CBRB-X32101E%2CBRB-X1610SE%2CBRB-X1610E_260330_EN_cyclonedx.json | 2026-07-07 |
Specifications
System
| Video Management Software | BLAZE VMS | |
| Licenses | 32 x BLAZE Premium License | |
| Available Channels | Up to 32 channels | |
| Recording Rate | Up to 250Mbps | |
| OS Drive Bays | eMMC 32GB | |
| Data Drive Bays | SATA 4ea | |
| Data Storage | Up to 64TB | |
| Network Interface | 2 x RJ-45 (1Gbps) | |
| Processor | 12th Atom Quad core | |
| Memory | 16GB DDR4 | |
| Operating System | Hardened OS | |
| Decoding | Video Outputs | 1 x HDMI(4K), 1 x DP(4K) |
| USB Ports | Front 2 x USB 2.0 Rear 2 x USB 3.0 | |
| Audio | Output | 1x Audio output |
| Audio Communication | 2-Way (Audio In: USB Mic) | |
| Keyboard & Mouse | Keyboard, Mouse |
Security
| Security Certificate | FIPS 140-3 Level3 |
Mechanical
| Form Factor | Box | |
| Color / Material | Black / Metal | |
| Dimensions (WxHxD) | 17.32"(440mm) x 3.54"(89.8mm) x 16.87"(428.4mm) | |
| Weight | 12.06lbs ( 5.47Kg) |
Electrical
| Power Input | 100 ~ 240 VAC ±10%, 50/60 Hz | |
| Power Consumption | 80W (272.96 BTU) |
Environmental
| Operating Temperature | 32°F to 104°F(0°C to 40°C) | |
| Operating Humidity | 20% to 85% RH (non-condensing) |
System
| Video Management Software | BLAZE VMS | |
| Licenses | 32 x BLAZE Premium License | |
| Available Channels | Up to 32 channels | |
| Recording Rate | Up to 250Mbps | |
| OS Drive Bays | eMMC 32GB | |
| Data Drive Bays | SATA 4ea | |
| Data Storage | Up to 64TB | |
| Network Interface | 2 x RJ-45 (1Gbps) | |
| Processor | 12th Atom Quad core | |
| Memory | 16GB DDR4 | |
| Operating System | Hardened OS | |
| Decoding | Video Outputs | 1 x HDMI(4K), 1 x DP(4K) |
| USB Ports | Front 2 x USB 2.0 Rear 2 x USB 3.0 | |
| Audio | Output | 1x Audio output |
| Audio Communication | 2-Way (Audio In: USB Mic) | |
| Keyboard & Mouse | Keyboard, Mouse |
Security
| Security Certificate | FIPS 140-3 Level3 |
Mechanical
| Form Factor | Box | |
| Color / Material | Black / Metal | |
| Dimensions (WxHxD) | 17.32"(440mm) x 3.54"(89.8mm) x 16.87"(428.4mm) | |
| Weight | 12.06lbs ( 5.47Kg) |
Electrical
| Power Input | 100 ~ 240 VAC ±10%, 50/60 Hz | |
| Power Consumption | 80W (272.96 BTU) |
Environmental
| Operating Temperature | 32°F to 104°F(0°C to 40°C) | |
| Operating Humidity | 20% to 85% RH (non-condensing) |
