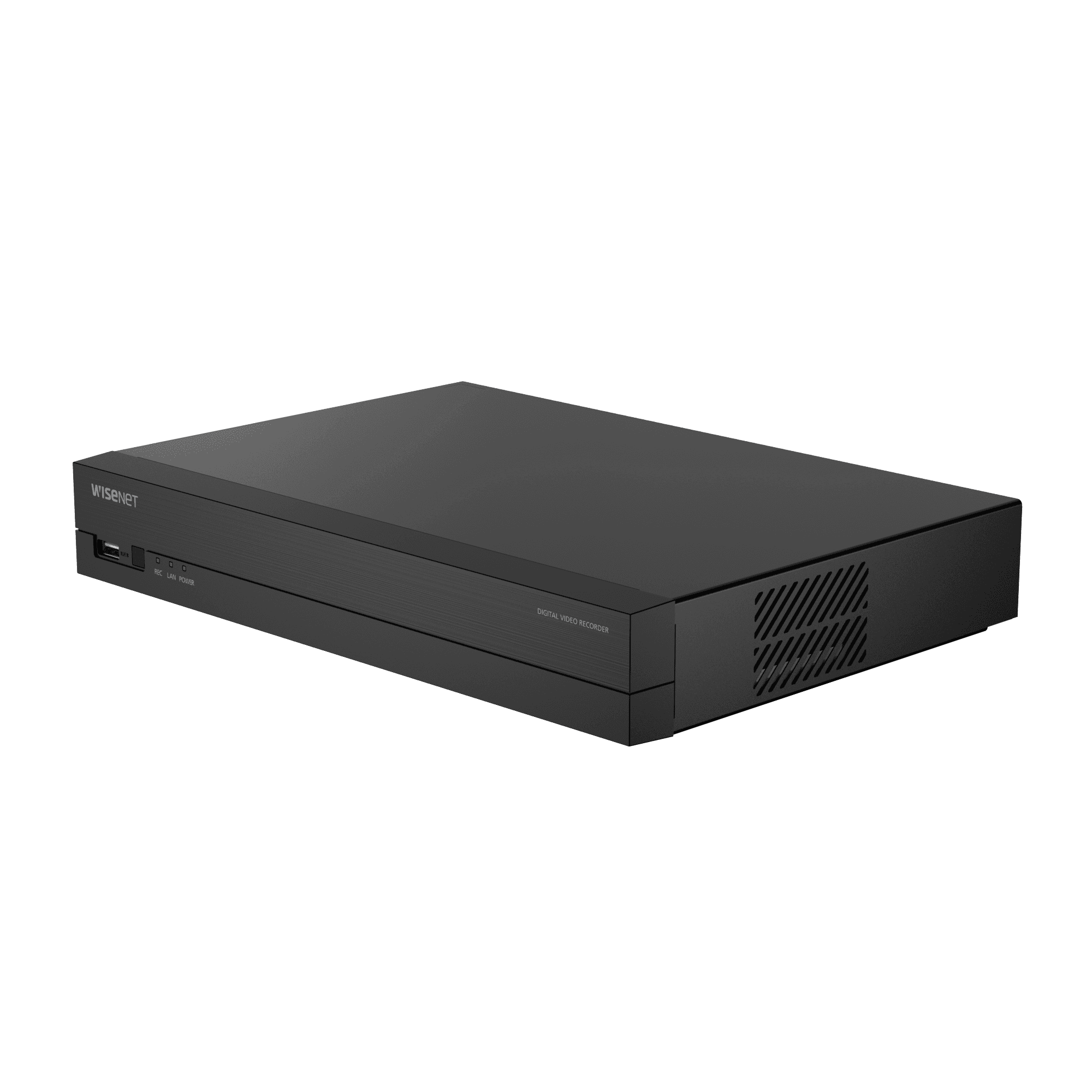

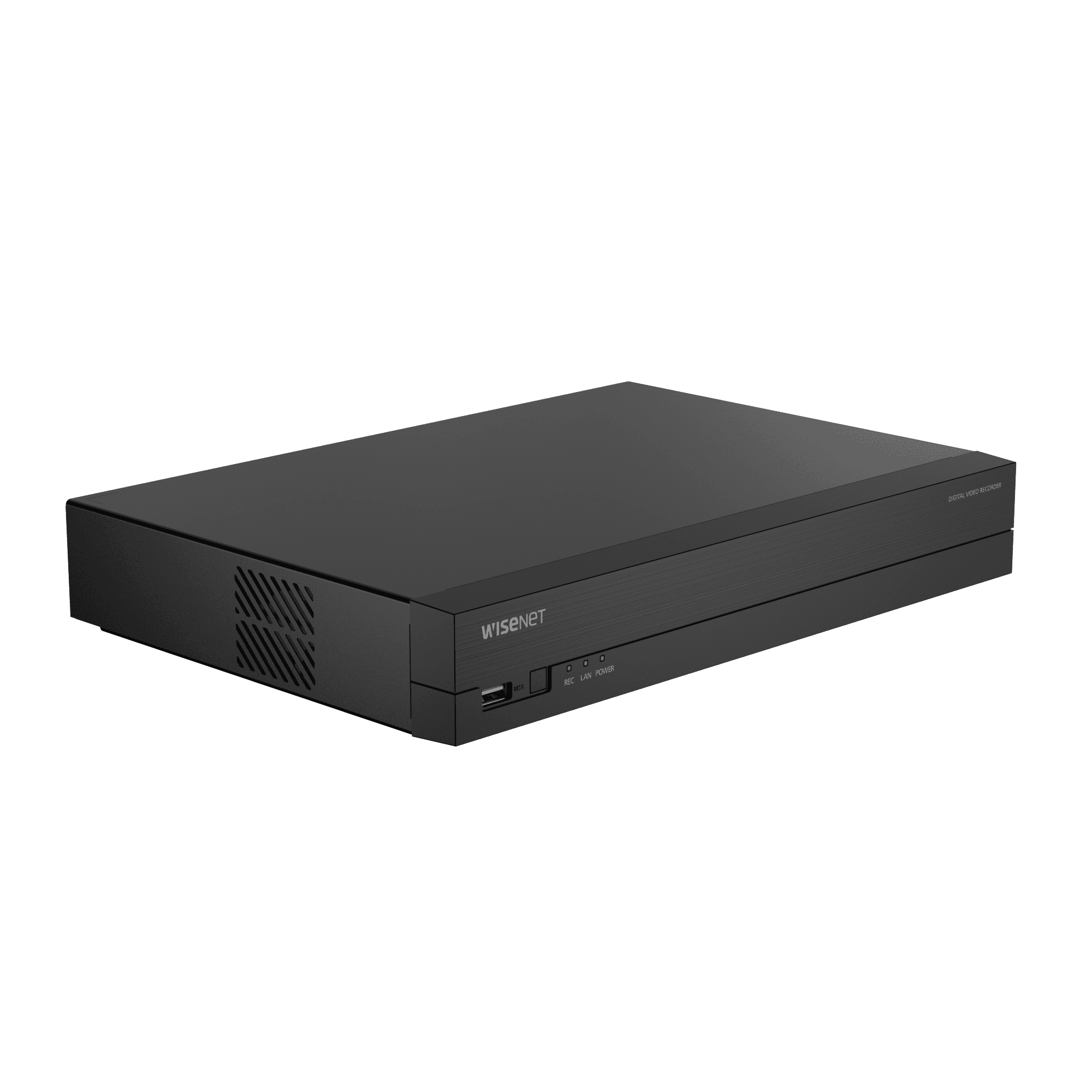

ARD-410
A series DVRKey Features
- AHD/TVI/CVI 4ch, 5MP (Half, Actual 2.5MP), 4MP (Half, Actual 2MP), 1080p (2MP) Camera input
- IP up to 5MP Input
- H.265, H.264, MJPEG
- 30Mbps IP camera recording
- 1RJ-45 (WAN, 10/100)
- 1 SATA HDD up to 6TB
- 4K HDMI Monitor output
- P2P service (QR code connect) support
For supported HDD information, please visit the HDD compatibility list.
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_ARD-1610,ARD-810,ARD-410_240103_DE.pdf | 2026-07-03 | |
| Manuals | Manuals_ARD-1610,ARD-810,ARD-410_240103_EN.pdf | 2026-07-03 | |
| Manuals | Manuals_ARD-1610,ARD-810,ARD-410_240103_ES.pdf | 2026-07-03 | |
| Manuals | Manuals_ARD-1610,ARD-810,ARD-410_240103_FR.pdf | 2026-07-03 | |
| Manuals | Manuals_ARD-1610,ARD-810,ARD-410_240103_IT.pdf | 2026-07-03 | |
| Manuals | Manuals_ARD-1610,ARD-810,ARD-410_240103_NL.pdf | 2026-07-03 | |
| Manuals | Manuals_ARD-1610,ARD-810,ARD-410_240103_PL.pdf | 2026-07-03 | |
| Manuals | Manuals_ARD-1610,ARD-810,ARD-410_240103_PT.pdf | 2026-07-03 | |
| Manuals | Manuals_ARD-1610,ARD-810,ARD-410_240103_TR.pdf | 2026-07-03 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_ARD-410_230220_EN.dxf | 2026-07-03 | |
| CAD | CAD_ARD-410_230220_EN.pdf | 2026-07-03 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_ARD-410_221104_EN_FCC-IC.pdf | 2026-07-03 | |
| Certification | Certification_ARD-410_221217_EN_UL.pdf | 2026-07-03 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_ARD-410_20250906_EN_070410.pdf | 2026-07-03 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_ARD-1610ARD-810ARD-410_240104_EN.pdf | 2026-07-03 |
Product Specifications
| Category | File Name | Last Update | |
|---|---|---|---|
| Product Specifications | Product-Specifications_ARD-1610ARD-810ARD-410_240103_EN.pdf | 2026-07-03 |
Specifications
Display
| Analog camera | Inputs | 4CH(1Vp-p 75ohm, BNC) |
| Signal Type | AHD(5MP Half, 4MP Half, 1080p) HD TVI(5MP Half, 4MP Half, 1080p) HD CVI(5MP Half, 4MP Half, 1080p) CVBS(NTSC/PAL) | |
| Network camera | Inputs | Additional 2CH (Up to 6CH) |
| Resolution | 5MP ~ CIF | |
| Protocols | SUNAPI(Wisenet), ONVIF | |
| Live | Local Display | 1x HDMI, 1x VGA [Single Mode] - HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 [Dual Mode] Clone - HDMI: 1920x1080, 1280x1024, 1280x720 - VGA: 1920x1080, 1280x1024, 1280x720 |
| Multi Screen Display | [Local monitor] - Dynamic layout, Virtual channel view - up to 6 division [Web] 1 / 2 / 3 / 4 / 6 / 1+5 / 1+ 7 / 9 | |
| Resolution | [Analog Camera(NTSC/PAL)] 5MP(Half ), 4MP(Half), 2MP [Network Camera] - Typ. 2MP(120fps) |
Performance
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG |
| Record Rate(Analog) | [Analog Camera(NTSC/PAL)] 5MP(5M Half 12fps/12fps) 4MP(4M Half 15fps/12fps) 2MP(2M 15fps/12fps) * Half : Horizontal resolution 1/2 * Resolution higher than 2MP will only record half of the resolution, 4MP will only record 2MP, and 5MP will only record 2.5M | |
| Recording Bandwidth | Max. 30Mbps | |
| Resolution | 5MP ~ CIF | |
| Mode | Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track | |
| Event Trigger | Alarm Input Analog Camera : Video Loss, Motion Detection,Tampering, Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event, Dynamic camera event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Play | User | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous playback | 6CH(Local Monitor),6Ch (CMS), 4Ch (Wisenet Mobile), 1Ch(Web) | |
| Fisheye Dewarping | WEB/CMS | |
| Mode | Date & Time (Calendar) / Event log list / Text search (POS), Back up, Motion, Smart search (Virtual Line w/ direction, Enter / Exit) * All Search Included Preview Function ARB search | |
| Resolution | 5MP ~ CIF | |
| Playback Control | Fast Forward/Backward (x2,x4,x8,x16,x32,x64, x128, x256) Slow Forward/Backward (x1/2,x1/4,x1/8) * Move one step up/down | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 1ea(Max 6TB) | |
| Backup | File backup | BU, EXE(Include Player), AVI |
| Function | Max. 6 CH play, Date-time/title display |
Function
| Camera Setup | Register | Auto, Manual |
| PTZ | Control | Via GUI, Webviewer, SSM, Wisenet Viewer, Wisenet Mobile Viewer, System Controller |
| Preset | 300 presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live(6ch) : Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push | |
| Max, Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ARB | Support |
| Easy configuration | Install wizard support | |
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI |

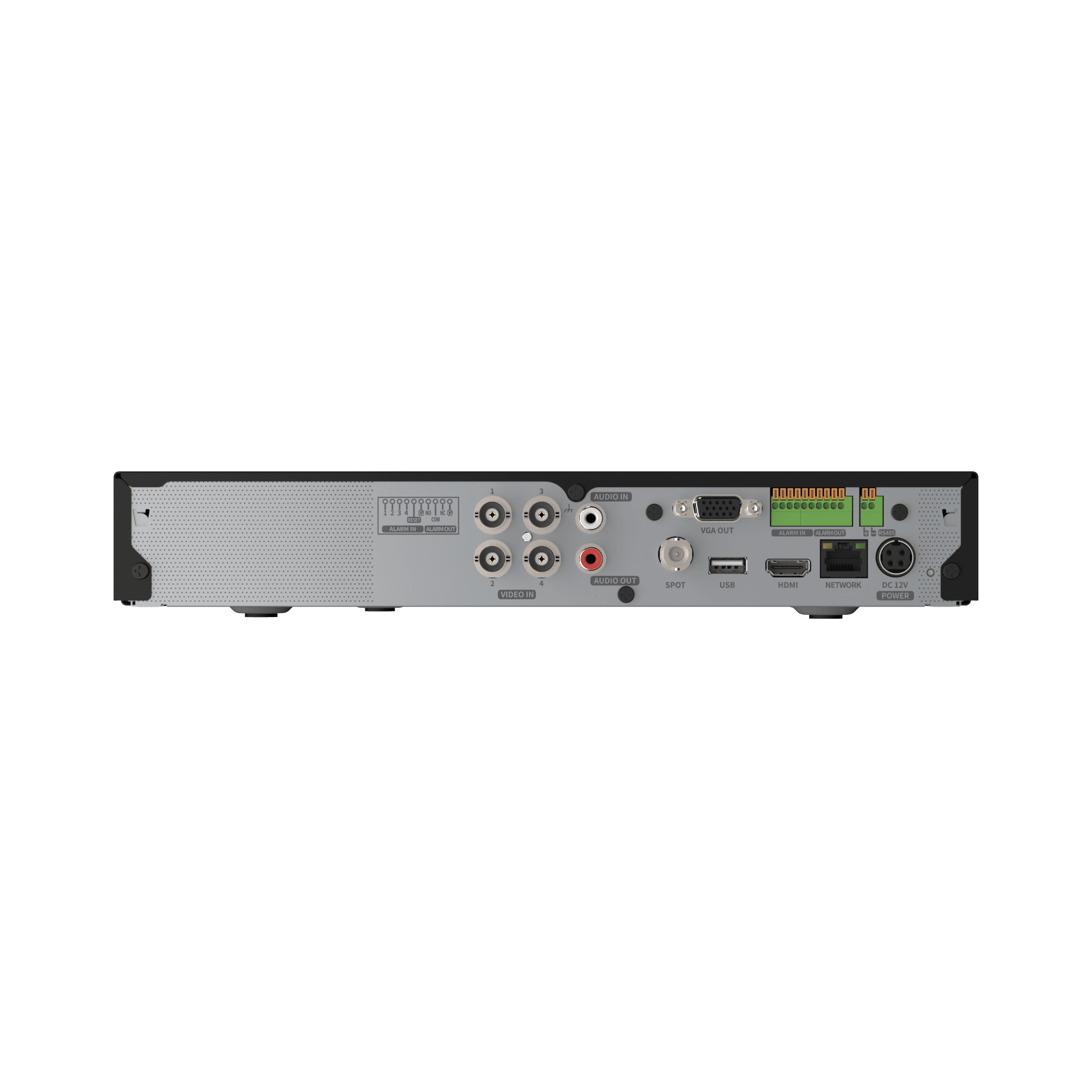

Interface

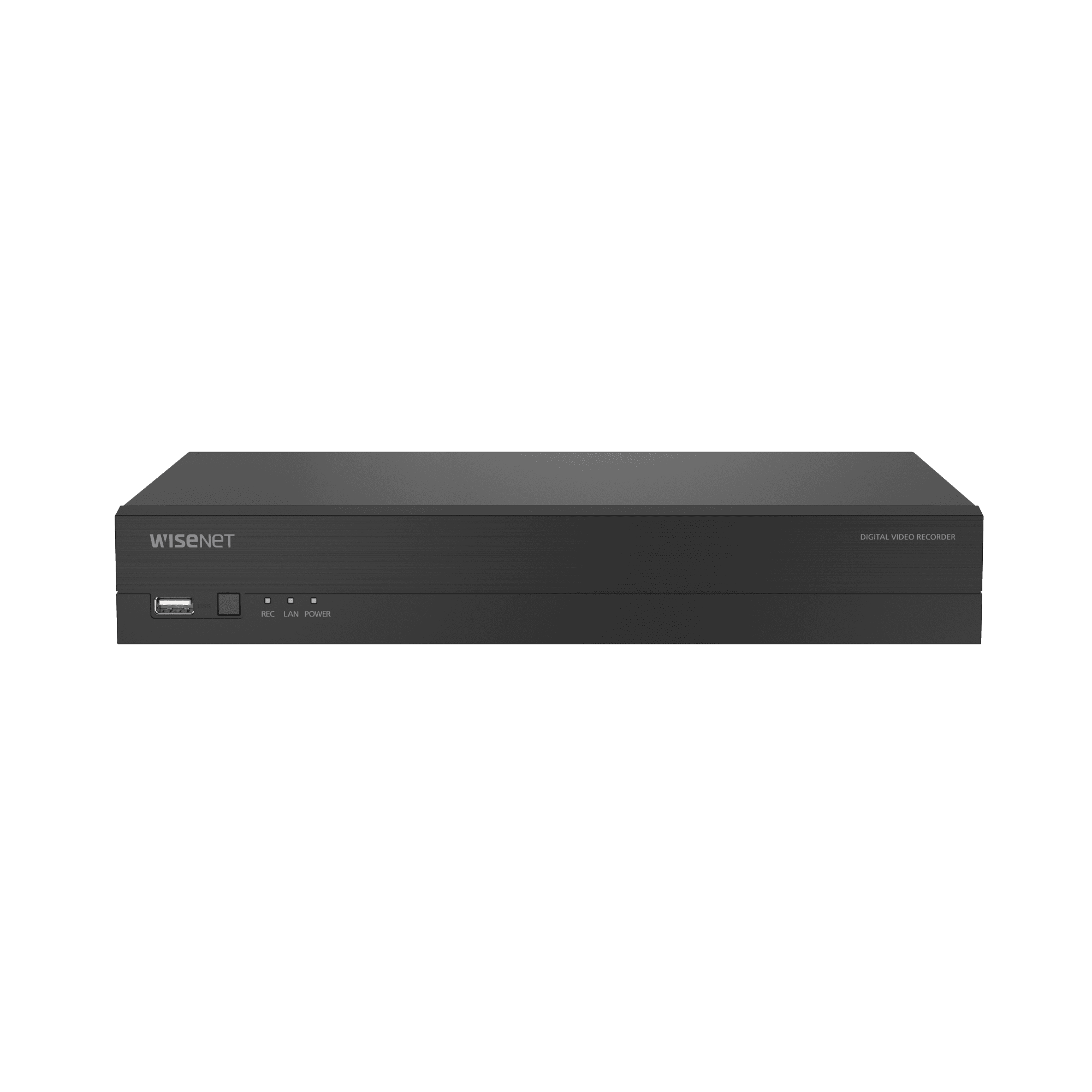

| Front | Indicator | LED(Status indicator) : Power(1), Record(1), Network(1) |
| Reset | Switch(1EA) | |
| HDMI | 1 EA | |
| VGA | 1 EA | |
| BNC | 4CH In / 1CH Out(Spot Output) | |
| Audio | Out(1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100 BASE-T) | |
| Alarm | In 4EA, Out 1EA - Relay Out1(NO/NC/COM) | |
| USB | 2EA(Front/Rear USB2.0) | |
| Serial(Protocols) | RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ | |
| Power inlet | 1EA DC Input Jack |
System
| Log | Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
Environmental
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC |
Electrical
| Power Input | DC12V | |
| Power Consumption | Max. 19.2W (6TB HDD 1ea) |
Mechanical
| Color / Material | Black / Metal | |
| Dimension | 300.0x 47.0 x 208.7 mm (11.85 x 1.89 x 8.22 inch) | |
| Weight | Approx. 1.1Kg (2.4 lb, without HDD) |
Network
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 30Mbps | |
| Audio | Input/Output | 1 Line in / 1 Line out |
| Compression | G.711 (N/W Camera G.711, 726) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Vision Root CA) | |
| Web viewer | Supported OS | Windows 10, Mac OS 11 Big Sur and later |
| Supported browser | Chrome, Edge , Safari | |
| Viewer Software | SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS |
