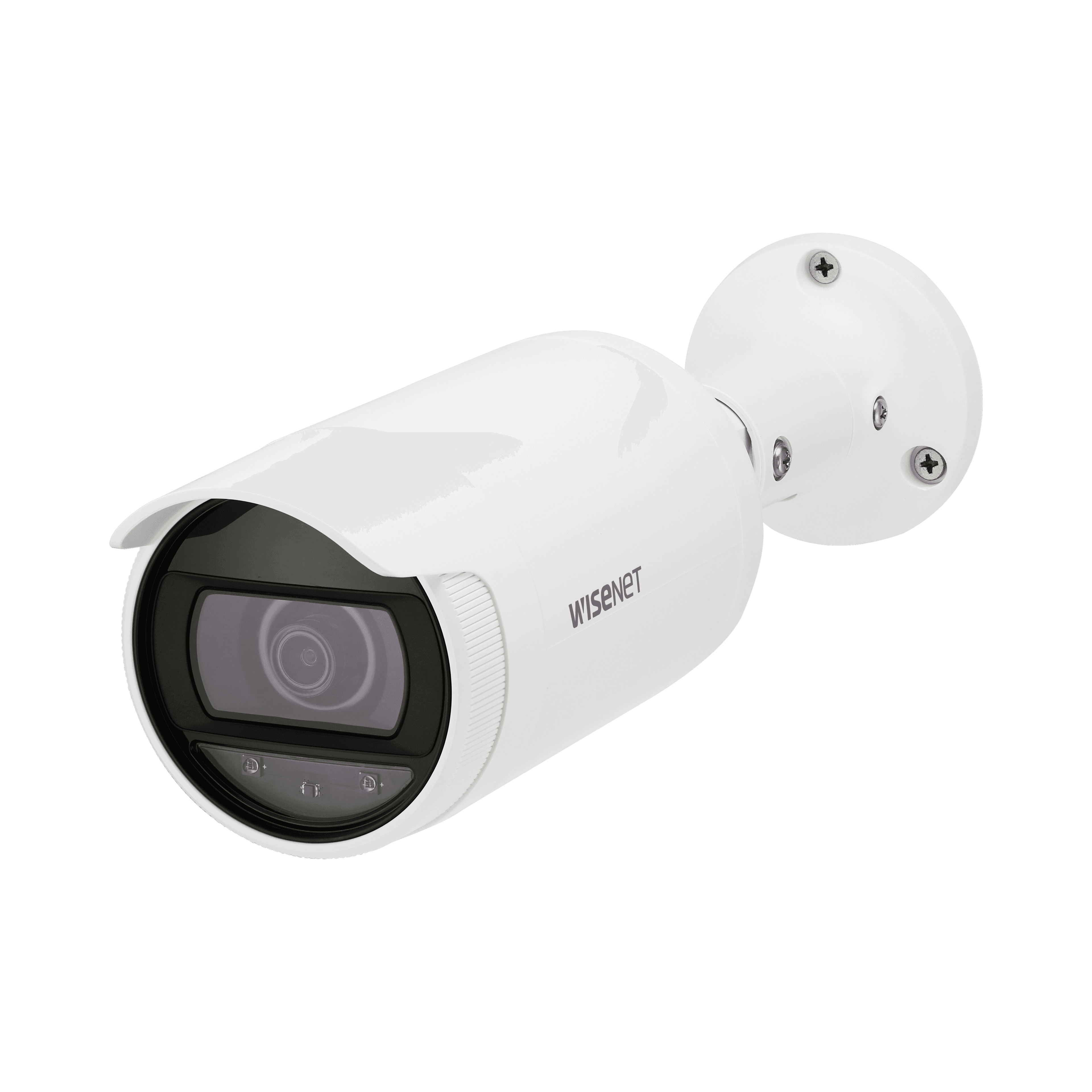

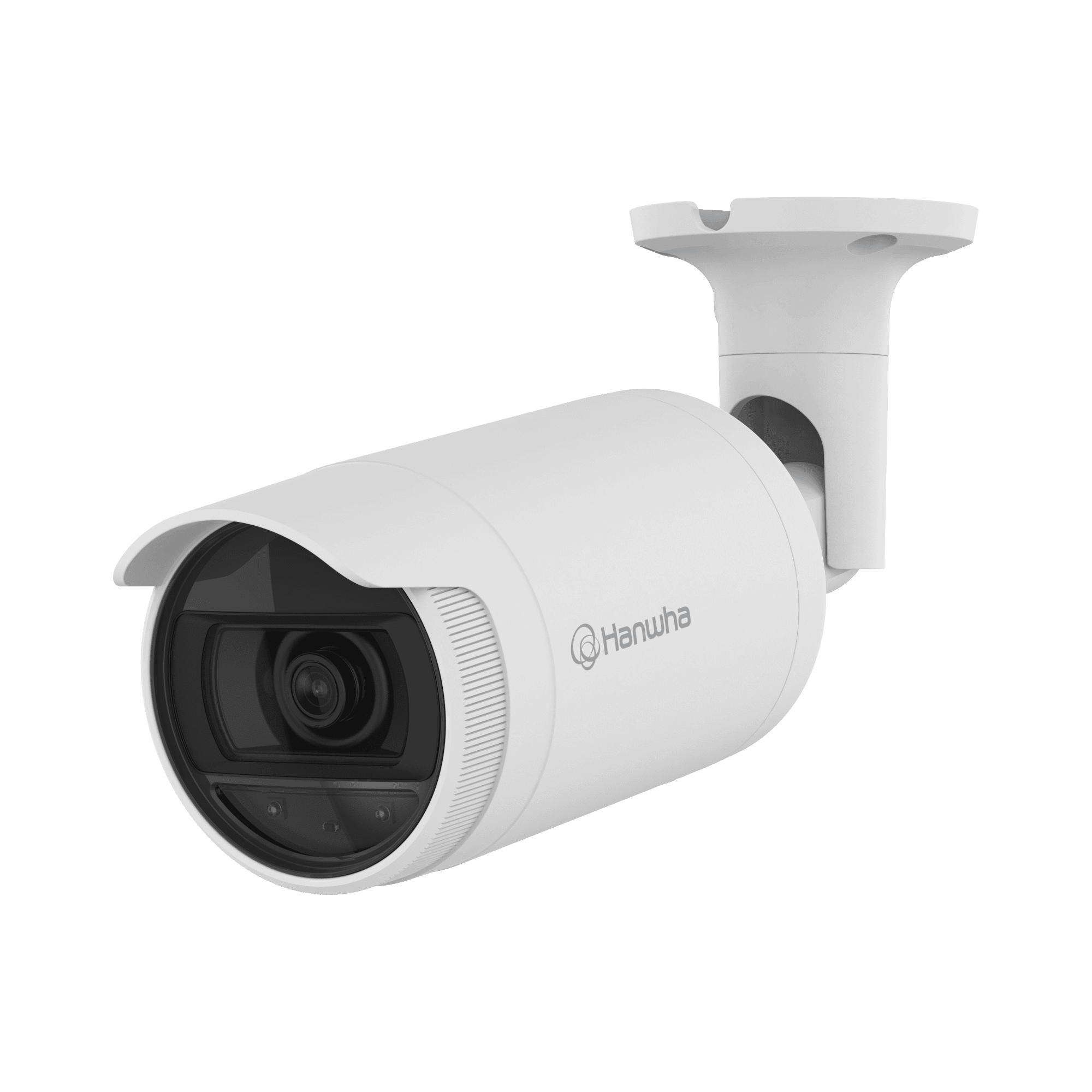

Key Features
- 2 megapixel (1920 x 1080) resolution
- 2.8mm lens w/ 113.7° HFoV
- 30fps@ all resolutions (H.265/H.264)
- H.265/H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway view, WiseStream II support
- IR viewable length 30m
- IP66 support
Downloads
View Selection
Manuals
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_ANO-L6012R_220414_Common.dwg | 2026-08-06 | |
| CAD | CAD_ANO-L6012R_220414_Common.dxf | 2026-08-06 | |
| CAD | CAD_ANO-L6012R_220414_Common.pdf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_ANO-L6012R_230224_EN_FCC,IC.pdf | 2026-08-06 | |
| Certification | Certification_ANO-L6012R_230412_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_ANO-L6012R_230913_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_ANO-L6012R_230913_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_ANO-L6012R_230913_EN_EMC_CE,UKCA.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | ANO-L6012R_1.41.16_20231109_R45.zip | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_ANO-L6012R_220525_EN-1.docx | 2026-08-06 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_ANO-L6012R_20260806_EN_144845.pdf | 2026-08-06 |
Quick Guide
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_ANO-L6012R%2CLNO-6072R%2CQNB-8002%2CQNO-7082R%2CQNO-6084R%2CTNV-8011C_251209_EN.txt | 2026-08-06 |
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 10fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.03 |
| BW(1/30sec, 30IRE) | 0.003 |
• The latest product information / specification can be found at hanwha-security.com
_x000D_ • Design and specifications are subject to change without notice.
_x000D_ • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
Lens
| Focal Length (mm) | 2.8 | |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 114° |
| Vertical | 62° | |
| Diagonal | 135° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Fixed |
• The latest product information / specification can be found at hanwha-security.com
_x000D_ • Design and specifications are subject to change without notice.
_x000D_ • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~100° | |
| Rotate | 0°~360° |
• The latest product information / specification can be found at hanwha-security.com
_x000D_ • Design and specifications are subject to change without notice.
_x000D_ • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNR | |
| Motion Detection | Quantity | 4ea |
| Shape | Rectangler zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Triggers | Analytics | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 30m(98.43ft) |
| IR Wavelength | 850nm |
• The latest product information / specification can be found at hanwha-security.com
_x000D_ • Design and specifications are subject to change without notice.
_x000D_ • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
Analytics
| Analytics Events | Normal | Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) |
• The latest product information / specification can be found at hanwha-security.com
_x000D_ • Design and specifications are subject to change without notice.
_x000D_ • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Smart Codec | WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour | |
| Application Programming Interface | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API) | |
| Direct Cloud Connection | Optional (needs gateway) |
• The latest product information / specification can be found at hanwha-security.com
_x000D_ • Design and specifications are subject to change without notice.
_x000D_ • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
Security
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) |
• The latest product information / specification can be found at hanwha-security.com
_x000D_ • Design and specifications are subject to change without notice.
_x000D_ • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
General
| Memory | RAM | 512MB |
| Flash | 256MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 32GB x 1slot |
• The latest product information / specification can be found at hanwha-security.com
_x000D_ • Design and specifications are subject to change without notice.
_x000D_ • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Others | Start up should be done at above -20°C | |
| Storage Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class2) | |
| Power Consumption | PoE | Max 6.4W, Typical 5.0W |
• The latest product information / specification can be found at hanwha-security.com
_x000D_ • Design and specifications are subject to change without notice.
_x000D_ • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
Mechanical
| Color | White | |
| Material | Plastic | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø78.0x262.0mm(ø3.07x10.31”) | |
| Product Weight | 390g(0.86lb) |
• The latest product information / specification can be found at hanwha-security.com
_x000D_ • Design and specifications are subject to change without notice.
_x000D_ • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66 |
• The latest product information / specification can be found at hanwha-security.com
_x000D_ • Design and specifications are subject to change without notice.
_x000D_ • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 24.9m(81.82ft) |
| Observe (63PPM/ 19PPF) | Wide | 10.0m(32.73ft) |
| Recognize (125PPM/ 38PPF) | Wide | 5.0m(16.36ft) |
| Identify (250PPM/ 76PPF) | Wide | 2.5m(8.18ft) |
