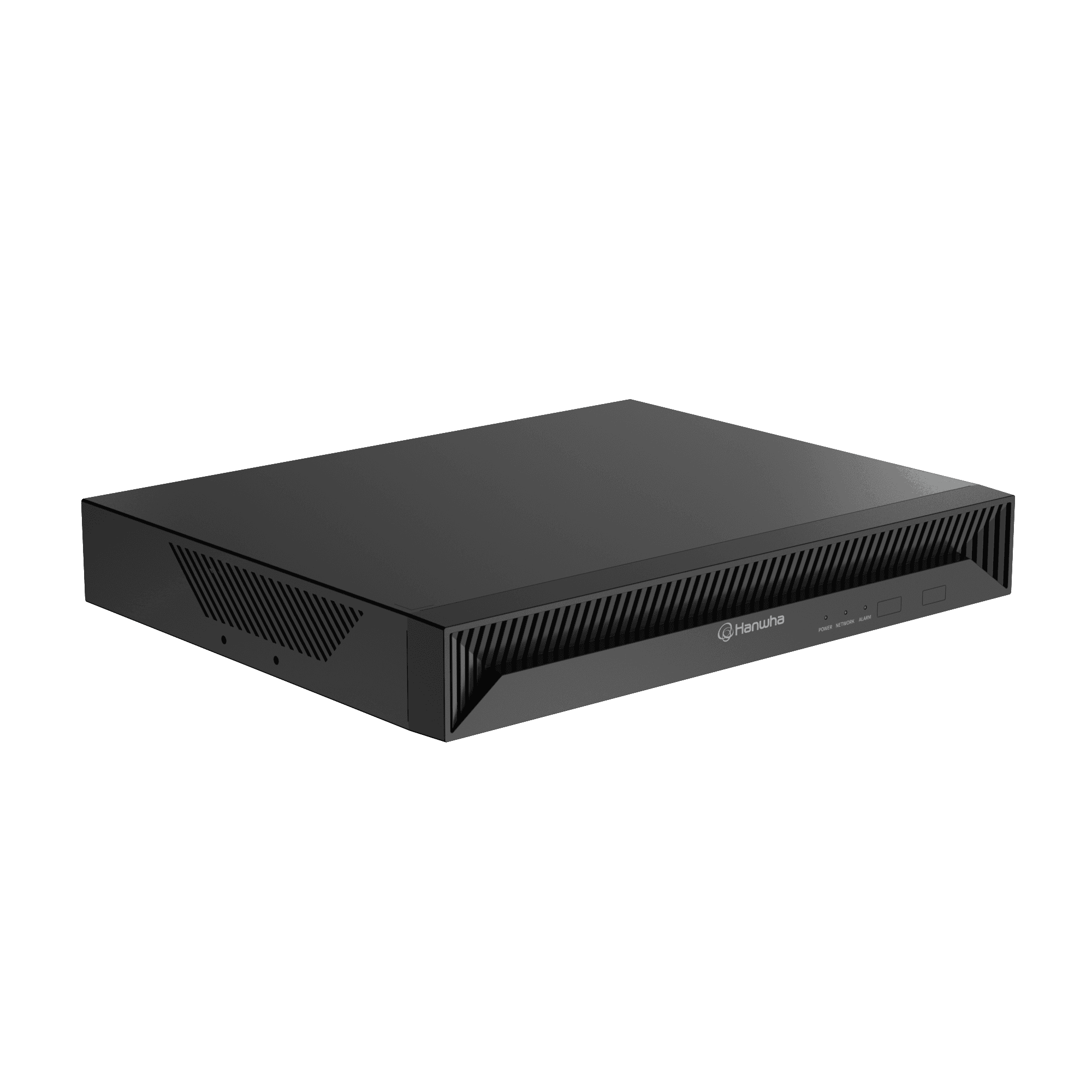

AIB-800
8CH AI BoxKey Features
- 8CH Supported
- 32MP Image Resolution
- AI Object Classification
- Business Intelligence
- AI processing unit for ONVIF compatible cameras
- Broad VMS compatibility
- Dynamic Privacy Masking
- Support SDK/API
Downloads
View Selection
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_AIB-800%2CAIB-800A_250729_DE.pdf | 2026-07-30 | |
| Manuals | Manuals_AIB-800%2CAIB-800A_250729_ES.pdf | 2026-07-30 | |
| Manuals | Manuals_AIB-800%2CAIB-800A_250729_IT.pdf | 2026-07-30 | |
| Manuals | Manuals_AIB-800%2CAIB-800A_250729_PL.pdf | 2026-07-30 | |
| Manuals | Manuals_AIB-800%2CAIB-800A_250729_PT.pdf | 2026-07-30 | |
| Manuals | Manuals_AIB-800%2CAIB-800A_250729_TR.pdf | 2026-07-30 | |
| Manuals | Manuals_AIB-800%2CAIB-800A_250729_ZH.pdf | 2026-07-30 | |
| Manuals | Manuals_AIB-800%2CAIB-800A_250819_EN.pdf | 2026-07-30 | |
| Manuals | Manuals_AIB-800%2CAIB-800A_250819_FR.pdf | 2026-07-30 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_AIB-800_231025_Common.dxf | 2026-07-30 | |
| CAD | CAD_AIB-800_231025_Common.pdf | 2026-07-30 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_AIB-800%2CAIB-800A_250804_EN_DoC_CE.pdf | 2026-07-30 | |
| Certification | Certification_AIB-800%2CAIB-800A_250804_EN_DoC_UKCA.pdf | 2026-07-30 | |
| Certification | Certification_AIB-800%2CAIB-800A_250804_EN_EMC_CE%2CUKCA.pdf | 2026-07-30 | |
| Certification | Certification_AIB-800%2CAIB-800A_250804_EN_FCC%2CIC.pdf | 2026-07-30 | |
| Certification | Certification_AIB-800%2CAIB-800A_250804_EN_RCM.pdf | 2026-07-30 | |
| Certification | Certification_AIB-800%2CAIB-800A_250804_EN_VCCI.pdf | 2026-07-30 | |
| Certification | Certification_AIB-800%2CAIB-800A_250819_EN_Report_UL.pdf | 2026-07-30 | |
| Certification | Certification_AIB-800%2CAIB-800A_250819_EN_UL.pdf | 2026-07-30 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | AIB-800_25.03.00_202604281806_R1960.zip | 2026-07-30 | |
| Firmware | WiseAI_v_AIB-800_25_03_00_20260427.zip | 2026-07-30 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_AIB-800_241203_EN.docx | 2026-07-30 |
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_AIB-800_20260413_EN_105913.pdf | 2026-07-30 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_AIB-800_240115_CS.pdf | 2026-07-30 | |
| Quick Guide | Quick-Guide_AIB-800_240115_DE.pdf | 2026-07-30 | |
| Quick Guide | Quick-Guide_AIB-800_240115_EN.pdf | 2026-07-30 | |
| Quick Guide | Quick-Guide_AIB-800_240115_ES.pdf | 2026-07-30 | |
| Quick Guide | Quick-Guide_AIB-800_240115_FR.pdf | 2026-07-30 | |
| Quick Guide | Quick-Guide_AIB-800_240115_IT.pdf | 2026-07-30 | |
| Quick Guide | Quick-Guide_AIB-800_240115_NL.pdf | 2026-07-30 | |
| Quick Guide | Quick-Guide_AIB-800_240115_PL.pdf | 2026-07-30 | |
| Quick Guide | Quick-Guide_AIB-800_240115_PT.pdf | 2026-07-30 | |
| Quick Guide | Quick-Guide_AIB-800_240115_TR.pdf | 2026-07-30 | |
| Quick Guide | Quick-Guide_AIB-800_240115_ZH.pdf | 2026-07-30 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_AIB-800_260129_EN.txt | 2026-07-30 |
SBOM
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_AIB-800_260129_EN_cyclonedx.json | 2026-07-30 |
Specifications
Display
| Network | Inputs | Max. 8CH |
| Resolution | CIF ~ 32MP, Recommended Configuration: 8CH @ Full HD, 10fps | |
| Protocols | SUNAPI, ONVIF, [Certified Interoperability] - Hanwha non-AI network cameras (SUNAPI) - Hanwha Encoders (SUNAPI) [Limited] - 3rd party non-AI IP cameras (ONVIF/RTSP), compatibility is not 100% guaranteed. [Unsupported] - Any NVR/DVR - 3rd party Encoders |
Intelligent Analysis
| AI function | Pre-Installed Event | Classified object type : Person, Face, Vehicle, License plate, Attributes : Person(Upper/Lower clothes color, Gender, Bag), Vehicle(Type(car, bus, truck, motorcycle, bicycle), Color), Face(Age, Gender, Face mask, Glasses), Support Bestshot, Analytics events based on AI engine: Motion Detection*, Object detection, Virtual line* (Crossing/Direction), Virtual area* (Loitering/Intrusion/Enter/Exit), * Some of the video analytics only works with people/vehicle detection, Analytics events : Virtual area(Appear/Disappear), Business Intelligence (Based on AI engine) : People counting, Vehicle counting, Queue management, Heatmap, Dynamic privacy masking |
Network
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client), SRTP, MQTT | |
| DDNS | Hanwha DDNS | |
| Max Manipulated Streams | 80 Streams (10 Streams per 1CH) | |
| IP Version | IPv4/v6 | |
| Security | IP address filtering, User access Log, 802.1x, Encryption, Device certificate(Hanwha Vision Root CA) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Hungarian, Greek, Korean, Chinese, Japanese | |
| OS | Windows 11/10, macOS 10.13 | |
| Web Browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | Type | WebViewer, WAVE, SSM, Genetec, Milestone |
| CMS Support | Support SDK/CGI(SUNAPI) for interworking with 3rd party VMS |
Functions
| Camera Setup | Register | Auto, Manual |
| Setup Items | Camera Webpage |

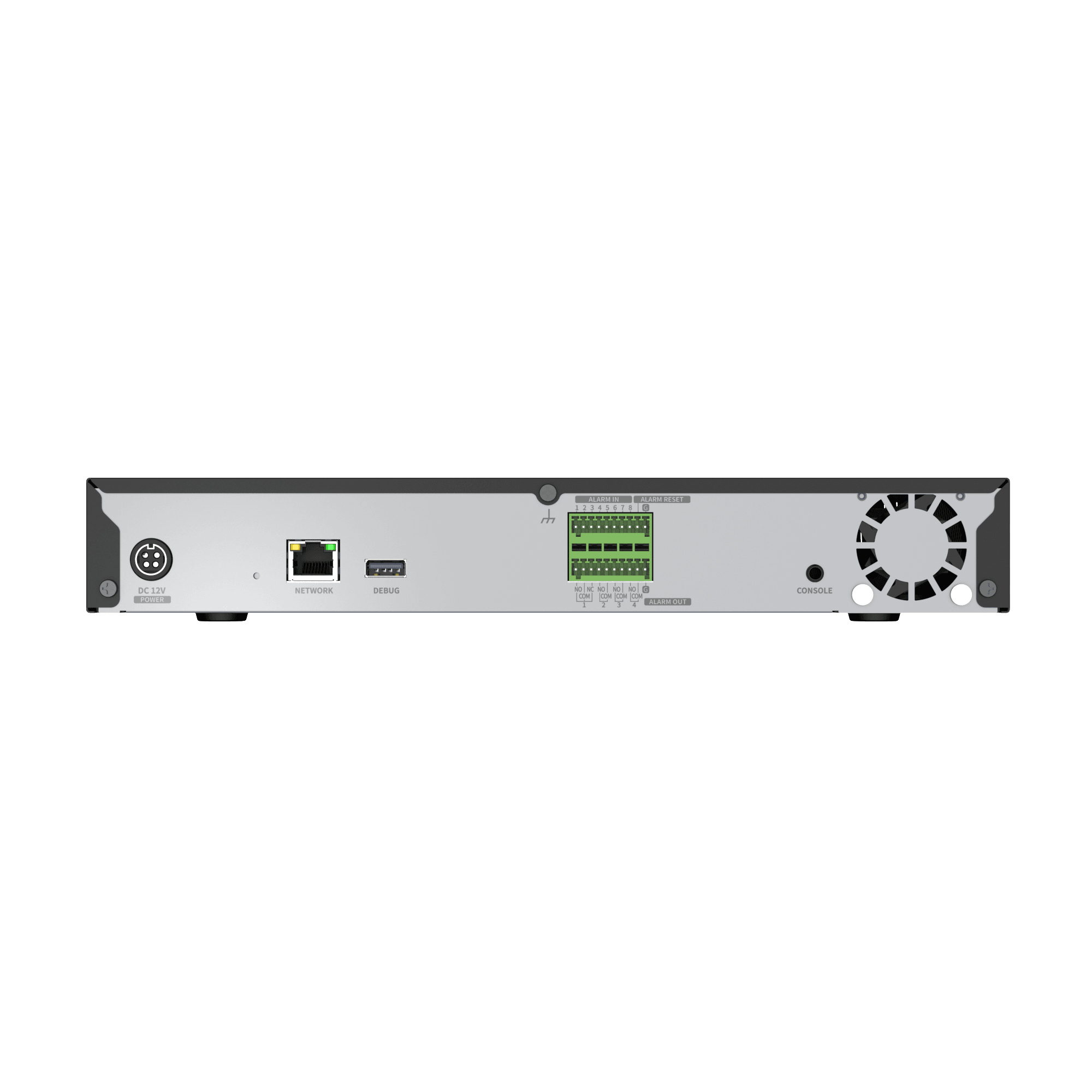

Indicator/Interface

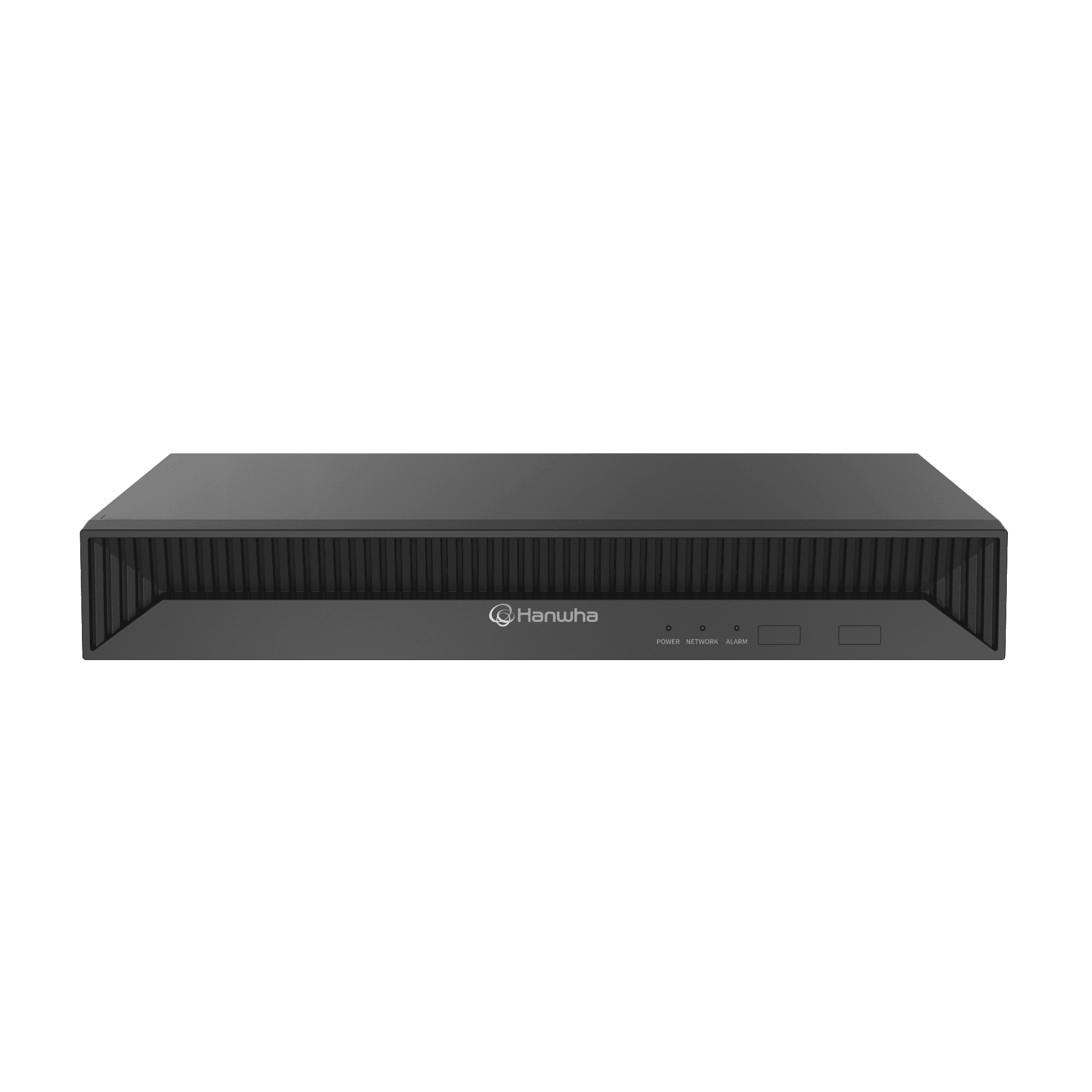

| Front | Indicator | LED(Status indicator) : Alarm(1), Power(1), Network(1) |
| Ethernet | RJ-45 1ea (1Gbps) | |
| Alarm | (1) In(8EA, Terminal Block), (2) Alarm Reset(1EA), (3) Out(4EA, Terminal Block) - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) | |
| USB | 1EA(Rear 1 x USB 3.0) for DEBUG | |
| Serial | Not Supported (internal Debug) | |
| Reset | Factory Reset | |
| Power Cord | DIN 4P 12V, 4A |
System
| Log | Log List | Max. 3,000 (System 1,000, Access 1,000, EVENT 1,000) |
| CPU | NVIDIA ORIN NX 8GB (SOM) |
Environmental
| Operating Temperature / Humidity | +0°C to +40°C(+32°F to +104°F) | |
| Humidity | 20% ~ 85% RH |
Electrical
| Power | 100~240 VAC ±10%; 50/60Hz, 12V, 4A Adaptor | |
| Power Consumption | 28W |
Mechanical
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 300x47.6x240.9mm(11.81x1.87x9.48inch) | |
| Weight | 1.39kg |
Display
| Network | Inputs | Max. 8CH |
| Resolution | CIF ~ 32MP, Recommended Configuration: 8CH @ Full HD, 10fps | |
| Protocols | SUNAPI, ONVIF, [Certified Interoperability] - Hanwha non-AI network cameras (SUNAPI) - Hanwha Encoders (SUNAPI) [Limited] - 3rd party non-AI IP cameras (ONVIF/RTSP), compatibility is not 100% guaranteed. [Unsupported] - Any NVR/DVR - 3rd party Encoders |
Intelligent Analysis
| AI function | Pre-Installed Event | Classified object type : Person, Face, Vehicle, License plate, Attributes : Person(Upper/Lower clothes color, Gender, Bag), Vehicle(Type(car, bus, truck, motorcycle, bicycle), Color), Face(Age, Gender, Face mask, Glasses), Support Bestshot, Analytics events based on AI engine: Motion Detection*, Object detection, Virtual line* (Crossing/Direction), Virtual area* (Loitering/Intrusion/Enter/Exit), * Some of the video analytics only works with people/vehicle detection, Analytics events : Virtual area(Appear/Disappear), Business Intelligence (Based on AI engine) : People counting, Vehicle counting, Queue management, Heatmap, Dynamic privacy masking |
Network
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client), SRTP, MQTT | |
| DDNS | Hanwha DDNS | |
| Max Manipulated Streams | 80 Streams (10 Streams per 1CH) | |
| IP Version | IPv4/v6 | |
| Security | IP address filtering, User access Log, 802.1x, Encryption, Device certificate(Hanwha Vision Root CA) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Hungarian, Greek, Korean, Chinese, Japanese | |
| OS | Windows 11/10, macOS 10.13 | |
| Web Browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | Type | WebViewer, WAVE, SSM, Genetec, Milestone |
| CMS Support | Support SDK/CGI(SUNAPI) for interworking with 3rd party VMS |
Functions
| Camera Setup | Register | Auto, Manual |
| Setup Items | Camera Webpage |
Indicator/Interface
| Front | Indicator | LED(Status indicator) : Alarm(1), Power(1), Network(1) |
| Ethernet | RJ-45 1ea (1Gbps) | |
| Alarm | (1) In(8EA, Terminal Block), (2) Alarm Reset(1EA), (3) Out(4EA, Terminal Block) - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) | |
| USB | 1EA(Rear 1 x USB 3.0) for DEBUG | |
| Serial | Not Supported (internal Debug) | |
| Reset | Factory Reset | |
| Power Cord | DIN 4P 12V, 4A |
System
| Log | Log List | Max. 3,000 (System 1,000, Access 1,000, EVENT 1,000) |
| CPU | NVIDIA ORIN NX 8GB (SOM) |
Environmental
| Operating Temperature / Humidity | +0°C to +40°C(+32°F to +104°F) | |
| Humidity | 20% ~ 85% RH |
Electrical
| Power | 100~240 VAC ±10%; 50/60Hz, 12V, 4A Adaptor | |
| Power Consumption | 28W |
Mechanical
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 300x47.6x240.9mm(11.81x1.87x9.48inch) | |
| Weight | 1.39kg |
