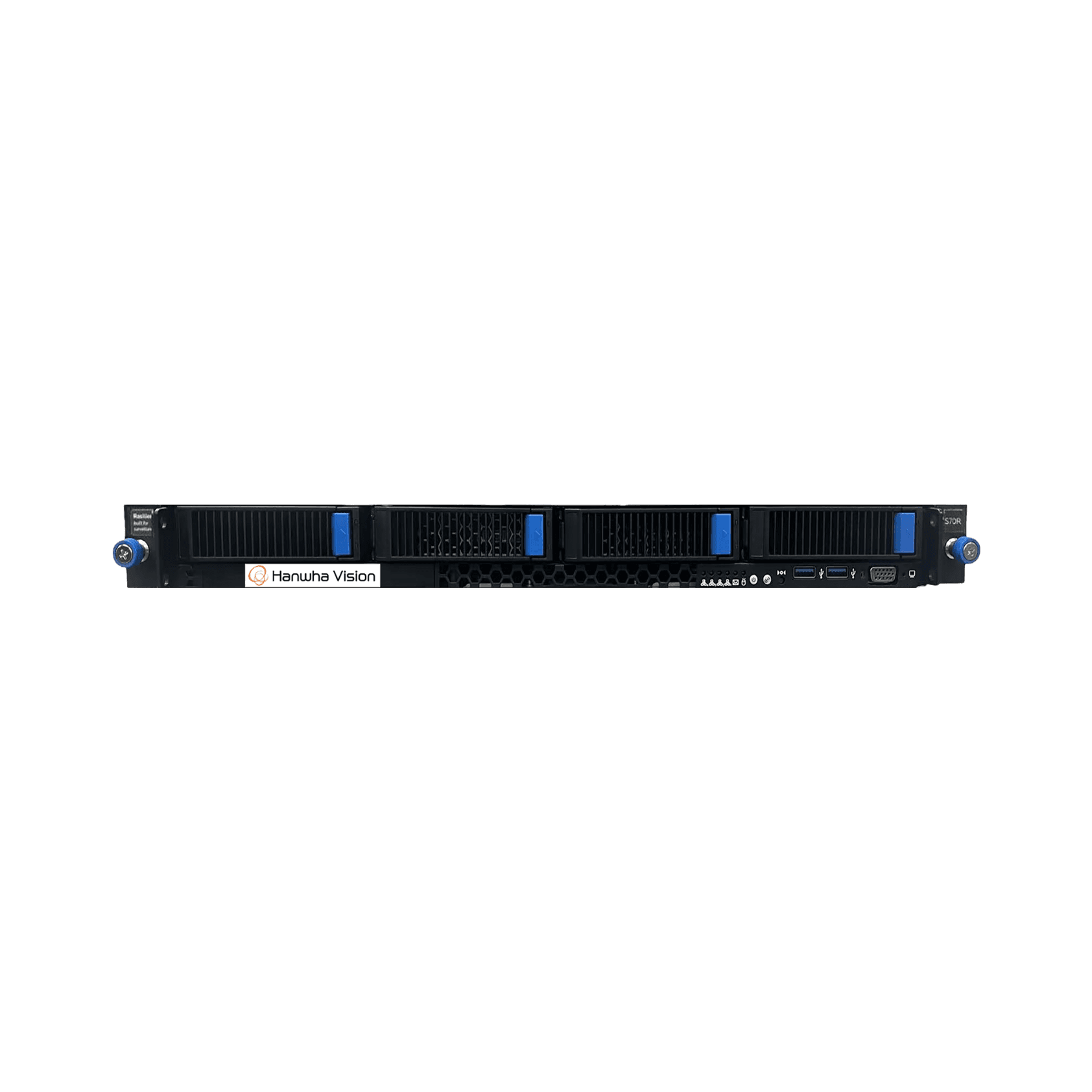

WRR-P-E201W2
Wave Recording ServerKey Features
- 1U Wisenet WAVE Network Video Recorder with 4 Professional licenses
- Wisenet WAVE pre-installed
- max 80TB raw (54TB usable after disk formatting & RAID 5 configuration)
- 470 Mbps recording B/W
- 4 HDD Bay (3.5")
- Intel Xeon 6333P
- 16GB RAM
- Dual 480GB SSD OS drives (RAID 1)
- Windows IoT
- Support RAID 0/1/5/6 + 512MB NV cache
- HDMI output
- VGA output
- 2 x 1GbE NICs
- IPMI
- Redundant 450W power supplies
- Keyboard and mouse included
- Rail kit included
Downloads
View Selection
DataSheet
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_WRR-P-E201W2_20260512_EN_171922.pdf | 2026-05-19 |
Specifications
System
| Included Licenses | 4 x Wisenet WAVE Professional License | |
| Recording Bandwidth | Up to 470Mbps | |
| OS Drive Bays | 2 x 480GB Dual RAID 1 SSD (Internally Mounted) | |
| Data Drive Bays | 4 x 3.5" Front Hot Swappable Bays | |
| Data Storage | Up to 80TB raw storage | |
| RAID Support | RAID 0, 1, 5, 6, 10 (RAID 5 default configuration) | |
| Network Interface | 2 x RJ45 GbE(default), 2 x RJ45 + 2 x 10GbE RJ45 (optional) | |
| Processor | 1 x Intel Xeon 6333P | |
| Memory | 16GB, 2 x 8GB DDR4 | |
| Operating System | Windows 11 IoT Enterprise LTSC | |
| IPMI | Supported | |
| Video Outputs | NVIDIA Quadro T400 3x MiniDisplayPort (1xHDMI adapter), 1x VGA | |
| USB Ports | 2 x USB 3.2 (Front), 2 x USB 3.2 (Rear) | |
| Other Ports | Serial | |
| Keyboard & Mouse | Included | |
| Sliding Rail Kit | Included, with Cable Management Arm |
Mechanical
| Form Factor | 1U Rack | |
| Color / Material | Black / Metal | |
| Dimensions (HxWxD) | 17.3"(440mm) x 19.6"(498mm) x 1.7"(44mm) | |
| Weight | 50 lbs(23 kg) *Weight is on chassis without HDD's |
Electrical
| Power Supply | 2x 450W 80 Plus Platinum | |
| Power Input | 100 ~ 240V AC | |
| Heat Dissipation | 1725W Max BTU/hr |
Environmental
| Operating Temperature | 50°F to 95°F (10°C to 35°C) | |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) | |
| Operating Humidity | 10% to 80% RH with 84.2°F maximum dew point. | |
| Certification | BSMI, CE, FCC(Class A), UL/cUL equivalent(MET/Eurofins) |
System
| Included Licenses | 4 x Wisenet WAVE Professional License | |
| Recording Bandwidth | Up to 470Mbps | |
| OS Drive Bays | 2 x 480GB Dual RAID 1 SSD (Internally Mounted) | |
| Data Drive Bays | 4 x 3.5" Front Hot Swappable Bays | |
| Data Storage | Up to 80TB raw storage | |
| RAID Support | RAID 0, 1, 5, 6, 10 (RAID 5 default configuration) | |
| Network Interface | 2 x RJ45 GbE(default), 2 x RJ45 + 2 x 10GbE RJ45 (optional) | |
| Processor | 1 x Intel Xeon 6333P | |
| Memory | 16GB, 2 x 8GB DDR4 | |
| Operating System | Windows 11 IoT Enterprise LTSC | |
| IPMI | Supported | |
| Video Outputs | NVIDIA Quadro T400 3x MiniDisplayPort (1xHDMI adapter), 1x VGA | |
| USB Ports | 2 x USB 3.2 (Front), 2 x USB 3.2 (Rear) | |
| Other Ports | Serial | |
| Keyboard & Mouse | Included | |
| Sliding Rail Kit | Included, with Cable Management Arm |
Mechanical
| Form Factor | 1U Rack | |
| Color / Material | Black / Metal | |
| Dimensions (HxWxD) | 17.3"(440mm) x 19.6"(498mm) x 1.7"(44mm) | |
| Weight | 50 lbs(23 kg) *Weight is on chassis without HDD's |
Electrical
| Power Supply | 2x 450W 80 Plus Platinum | |
| Power Input | 100 ~ 240V AC | |
| Heat Dissipation | 1725W Max BTU/hr |
Environmental
| Operating Temperature | 50°F to 95°F (10°C to 35°C) | |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) | |
| Operating Humidity | 10% to 80% RH with 84.2°F maximum dew point. | |
| Certification | BSMI, CE, FCC(Class A), UL/cUL equivalent(MET/Eurofins) |
